P3.91 Outdoor Fixed LED Display 500x1000mm Aluminum Profile 7500 nits 19.5kg
P3.91 Outdoor Fixed LED Display 500x1000mm Aluminum Profile 7500 nits 19.5kg
P3.91 Outdoor Fixed LED Display 500x1000mm Aluminum Profile 7500 nits 19.5kg
P3.91 Outdoor Fixed LED Display 500x1000mm Aluminum Profile 7500 nits 19.5kg
P3.91 Outdoor Fixed LED Display 500x1000mm Aluminum Profile 7500 nits 19.5kg
P3.91 Outdoor Fixed LED Display 500x1000mm Aluminum Profile 7500 nits 19.5kg
P3.91 Outdoor Fixed LED Display 500x1000mm Aluminum Profile 7500 nits 19.5kg
P3.91 Outdoor Fixed LED Display 500x1000mm Aluminum Profile 7500 nits 19.5kg
Specifications
Brand Name :
VW
Model Number :
P3.91
Certification :
CE, ROHS, EMC
Place of Origin :
CN
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T,L/C
Supply Ability :
2000sqm/month
Delivery Time :
15 work days
Packaging Details :
Plywood case
Product Name :
P3.91 Outdoor Fixed LED Display 500x1000mm Aluminum Profile 7500 nits 19.5kg
Pixel Pitch :
3.91mm
Cabinet Size :
500*1000*87mm
Module Size :
500*250*14mm
Cabinet Weight :
19.5kg/Cabinet
Brightness :
7500CD/m²
IP Rating :
IP65
Maintenance :
Front/Back
Description

P3.91 Outdoor Fixed LED Display 500x1000mm Aluminum Profile 7500 nits 19.5kg


Product Description:

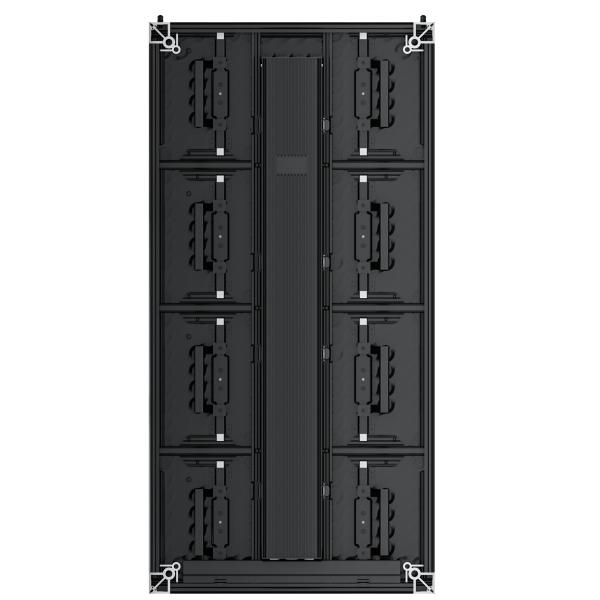

High-precision aluminum profile cabinet is only 87mm thick/19.5kg (500×1000mm),500×1000mm and 500×750mm cabinets are free to mix and match shaped shapes, sharing the same type of control box. Push-button lock realizes 5 seconds fast disassembly and assembly, optional arc lock supports curved surface splicing. Fanless ≤ 40dB silent operation, point-by-point calibration to ensure pixel-level uniformity. 3840Hz high refresh to eliminate 1/3000s shutter residual shadow, for stage performances, conferences, to provide a broadcaster-level visual base.

P3.91 Outdoor Fixed LED Display 500x1000mm Aluminum Profile 7500 nits 19.5kg


Features:

  • Point By Point Calibration: Fine-tune the white balance of each lamp bead point by point to eliminate chromatic aberration and light spots, achieve pixel-level display consistency.
  • Work In Silence: Fanless silent design, working noise ≤ 40dB (A) ambient sound level.
  • Installation And Maintenance: Optional curved locks for 10°~15° and 90° angles; modular push-button locks for 5-second quick assembly and disassembly; optional magnetic modules to support front service & rear service, efficient and convenient assembly and disassembly.
  • Cabinets Design: The 500x1000mm and 500x750mm cabinets can be mixed and assembled into a variety of shapes; sharing a simple mini control box saves installation and calibration time.


Technical Parameters:

Item Specification
Parameter
PixelPitch 3.91mm
Resolution rate 128*64mm
Module Size 500*250*14mm
Pixel LED SMD1921 Black led
Module Power ≤74W
Driving IC ICN2055
Drivingway 1/8
Material Aluminum profile
Cabinet Weight
(kg/Cabinet)		 19.5kg
Resolution rate 128*256Dots
Cabinet Size 500*1000*87mm
Module quantity 1*4
Density 65536 Dots/㎡
Brightness 7500CD/m²
View Angel H/V:120°/120°
Maximal power/㎡ ≤650W/㎡
Average Power/㎡ ≤220W/㎡
Refresh Frequency 3840Hz
Gray Grade ≥13bit
Protection grade IP65
Maintenance Front/Back


Application:

  • Outdoor creative modeling
  • Building entrance
  • Park entrance
  • Swimming pool

P3.91 Outdoor Fixed LED Display 500x1000mm Aluminum Profile 7500 nits 19.5kg



FAQ

Q1:Can you give me a discount?

A1:Yes, based on wholesale service, we have better discount for bigger quantities. We will quote you the best price based on your order quantity.


Q2: Is your company a real manufacturer?

A2: Our company is a professional factory , located in Baoan district, Shenzhen city, China. You are the mostly welcomed to visit our factory anytime.


Q3: How is the quality of the product?

A3: Our products have been strictly tested high quality by QC before shipping to customers.We are adhering to the principle:
"Quality and service are our first priority."


Q4: What pixel pitch should I choose on my display?

A4: It mainly depends on the viewing distance, the size of the display, the desired effect and the customer's budget.


Q5: What if I don't know how to maintain the screen?

A5: When you place your order, we will provide you with the operating manual and software, and we can help you remotely adjust the software through the team.


Q6:Can you provide free spare parts?

A6:A certain amount of spare parts will be provided for free, spare parts including module,power cable,signal cable,LED lamp,lC,mask, power supply, receiving card. etc.
