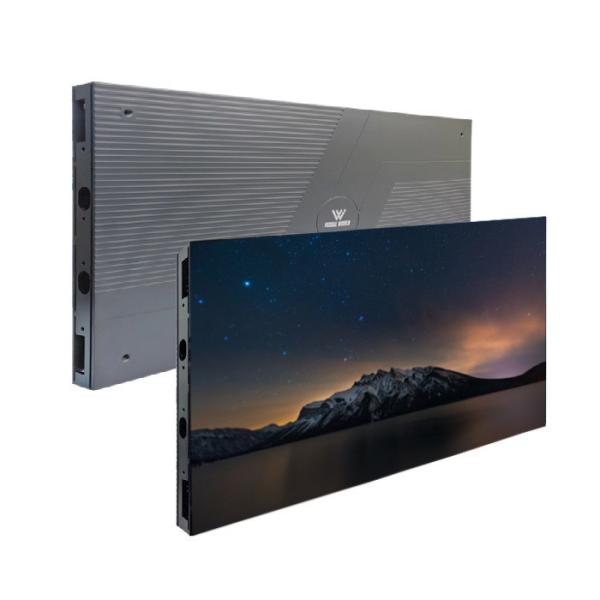

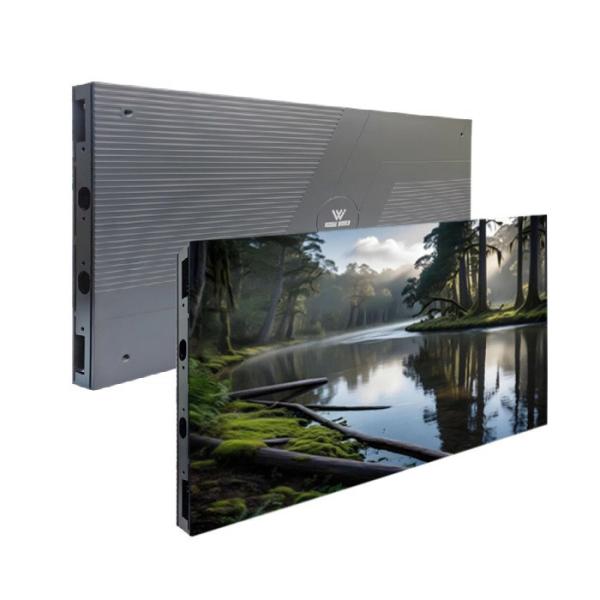

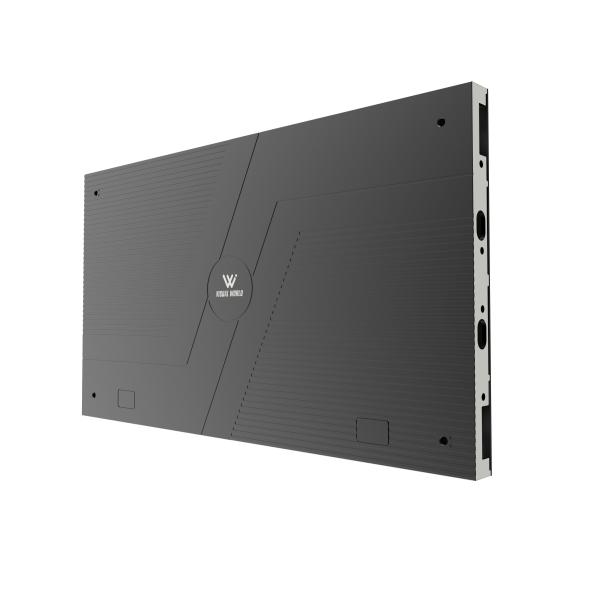

P1.25 Fine Pitch LED Display Die-casting AL Flip-COB 600*337.5mm 4.6kg
P1.25 Fine Pitch LED Display Die-casting AL Flip-COB 600*337.5mm 4.6kg
P1.25 Fine Pitch LED Display Die-casting AL Flip-COB 600*337.5mm 4.6kg
P1.25 Fine Pitch LED Display Die-casting AL Flip-COB 600*337.5mm 4.6kg
P1.25 Fine Pitch LED Display Die-casting AL Flip-COB 600*337.5mm 4.6kg
P1.25 Fine Pitch LED Display Die-casting AL Flip-COB 600*337.5mm 4.6kg
P1.25 Fine Pitch LED Display Die-casting AL Flip-COB 600*337.5mm 4.6kg
P1.25 Fine Pitch LED Display Die-casting AL Flip-COB 600*337.5mm 4.6kg
P1.25 Fine Pitch LED Display Die-casting AL Flip-COB 600*337.5mm 4.6kg
P1.25 Fine Pitch LED Display Die-casting AL Flip-COB 600*337.5mm 4.6kg
Specifications
Brand Name :
Visual World
Model Number :
P1.25
Certification :
EMC,CE,FCC,ROHS
Place of Origin :
CN
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000 sqm/month
Delivery Time :
12 work days
Packaging Details :
Plywood case, export carton box
Product Name :
P1.25 Fine Pitch LED Display Die-casting AL Flip-COB 600*337.5mm 4.6kg
Pixel Pitch :
P1.25
Cabinet Weight :
4.6kg
Cabinet Material :
Die-casting AL
LED Type :
Flip-COB
Cabinet Dimension :
600*337.5*29.5mm
Maintenance :
Front Service
Module Size :
150x168.75mm
Description

P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL For Retail Store


Product Description:

Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.

P1.25 Fine Pitch LED Display Die-casting AL Flip-COB 600*337.5mm 4.6kg

Features:

  • Full flip-chip COB process, protection technology includes anti-collision, waterproof, moisture-proof, salt spray.
  • The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
  • Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
  • The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
  • The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.


Technical Parameters:


Model

P0.7

P0.9

P1.25

P1.56

Pixel Pitch

0.78mm

0.9375mm

1.25mm

1.56mm

LED Type

Flip-COB

(common cathode)

Cabinet Dimension

(mm)

600*337.5*29.5

Cabinet Resolution

768*432

640*360

480*270

384*216

Module Size(mm)

150x168.75

Cabinet Weight

4kg

Cabinet Material

Die-casting Aluminum

Scan Mode

1/36

1/54 or 1/36

1/60 or 1/27

1/48

maintenance

Front service

Brightness

600/2000 nits

600/2000 nits

600/1500 nits

600/1000 nits

Max Power

390W/m²

420W/m²

330W/m²

330W/m²

Avg Power

136W/m²

147W/m²

100W/m²

100W/m²

Waterproof Level

Front: IP54 Rear: IP30

Refresh Rate

>3840Hz

Installation Type

Mounting/Hanging/Stacking

Gray Scale

16bit


Applications:

Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment /


FAQ:

Q1:What products does Visual World manufacture?
A1:We specialize in a wide range of LED display solutions, including:
* COB ultra-fine-pixel-pitch displays
* Indoor & outdoor full-color LED screens
* Fine-pixel-pitch displays
* Rental stage LED panels
* Transparent LED Screen
* LED floor tiles
* Creative LED displays (spherical, curved, customized shapes)


Q2: Are you a manufacturer or a trading company?
A2:We are a direct manufacturer with our own R&D center, production facilities, cleanroom workshops, and full quality-control systems.


Q3:What certifications do your products carry?
A3:Our LED displays are certified and tested by recognized agencies, including:
UL, CE, FCC, ETL, CCC, RoHS, IP65 waterproof/dustproof tests, EMC tests, and various reliability tests such as high/low-temperature and sunlight anti-glare testing.


Q4: Do you offer OEM/ODM services?
A4:Yes. We provide full OEM/ODM customization, including structure design, PCB development, cabinet customization, software configuration, and private-label branding.


Q5: What is your typical production lead time?
A5:Lead time varies by project:
* Standard models: 7–15 days
* Custom/OEM solutions: 15–30 days
* Large projects: Production schedule is confirmed case-by-case
