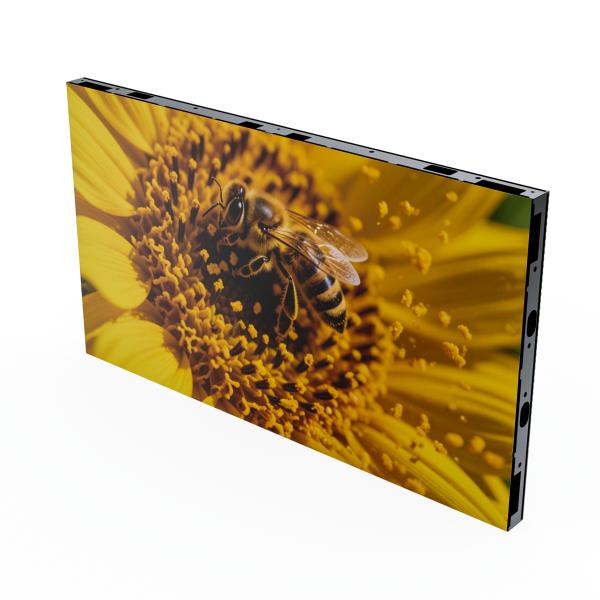

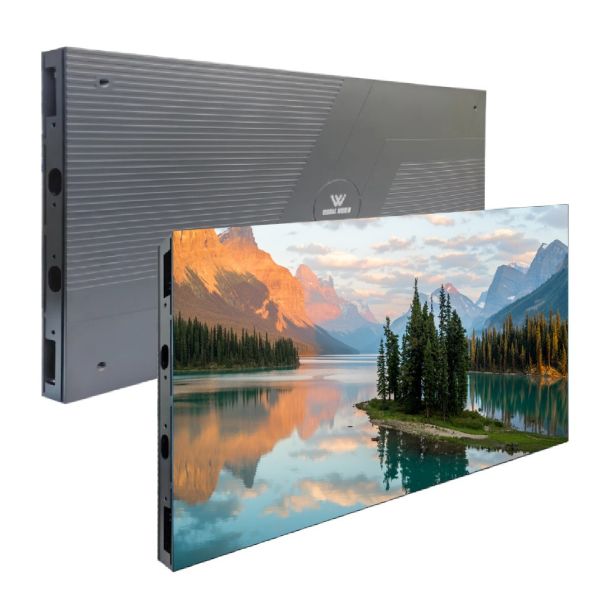

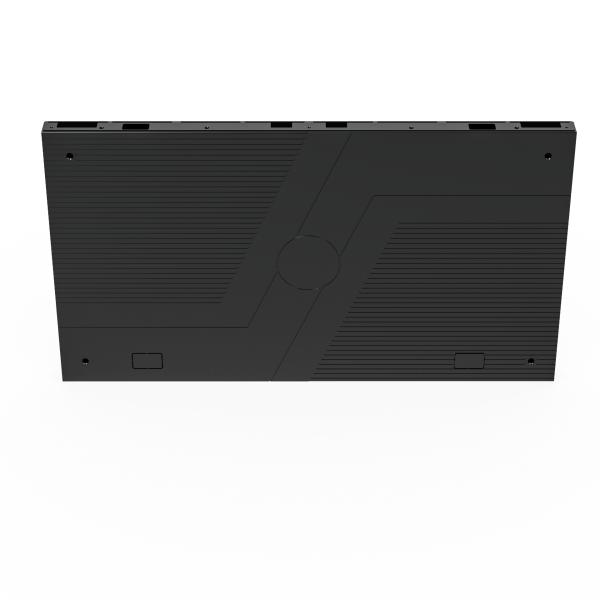

P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg
P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg
P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg
P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg
P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg
P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg
P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg
P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg
P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg
P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg
Specifications
Brand Name :
Visual World
Model Number :
P1.25
Certification :
EMC,CE,FCC,ROHS
Place of Origin :
CN
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
5000 sqm/month
Delivery Time :
12 work days
Packaging Details :
Plywood case, export carton box
Product Name :
P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg
Pixel Pitch :
P1.25
Cabinet Weight :
4.6kg
Cabinet Material :
Die-casting AL
LED Type :
Flip-COB
Cabinet Dimension :
600*337.5*29.5mm
Maintenance :
Front Service
Module Size :
150x168.75mm
Description
P1.25 Fine Pitch LED Display Flip-COB 600×337.5mm Die-casting Aluminum 4.6kg
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600×337.5mm cabinet with front service access is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg
Key Features
  • Full flip-chip COB process with comprehensive protection including anti-collision, waterproof, moisture-proof, and salt spray resistance
  • 3D ink printing technology increases contrast by 20% and reduces brightness requirements
  • LCD status display panel for real-time monitoring of cabinet operation status
  • Module PCB utilizes HDI multi-layer circuit board design for excellent color uniformity and even temperature distribution
  • Sunrise energy-saving common cathode chip technology with 16-bit grayscale level for superior performance
Technical Specifications
Model P0.7 P0.9 P1.25 P1.56
Pixel Pitch 0.78mm 0.9375mm 1.25mm 1.56mm
LED Type Flip-COB (common cathode)
Cabinet Dimension (mm) 600×337.5×29.5
Cabinet Resolution 768×432 640×360 480×270 384×216
Module Size (mm) 150×168.75
Cabinet Weight 4kg
Cabinet Material Die-casting Aluminum
Scan Mode 1/36 1/54 or 1/36 1/60 or 1/27 1/48
Maintenance Front Service
Brightness 600/2000 nits 600/2000 nits 600/1500 nits 600/1000 nits
Max Power 390W/m² 420W/m² 330W/m² 330W/m²
Avg Power 136W/m² 147W/m² 100W/m² 100W/m²
Waterproof Level Front: IP54 Rear: IP30
Refresh Rate >3840Hz
Installation Type Mounting/Hanging/Stacking
Gray Scale 16bit
Applications
Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment
P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg
Frequently Asked Questions
What warranties do you offer?
We provide a standard 2-3-year warranty depending on the product series, with optional extended warranty support. Spare parts and technical support are available for the entire lifecycle of your project.
Do you provide after-sales technical support?
Absolutely. We offer 24/7 online technical support, remote diagnostics and troubleshooting, on-site installation guidance when required, and operation training for partners and end users.
Can your LED screens be used outdoors?
Yes. Our outdoor displays are built with IP65-IP67 water/dust protection, high brightness, UV-resistant modules, and weather-resistant cabinets. They operate reliably in extreme temperature and climate environments.
What industries and applications do your displays serve?
Our LED solutions are widely used in stage rental and events, control rooms & command centers, retail & commercial signage, DOOH advertising, corporate conference rooms, stadiums & arenas, transportation hubs, government and public information displays, and vehicle-mounted and mobile applications.
Do you ship globally?
Yes. We export to 130+ countries and regions, offering air, sea, and express shipping options with strong packaging to ensure safe delivery.
