Specifications
Maintenance :
Front Service
Model Number :
P5
Cabinet Weight :
13kg
MOQ :
Negotiate
Delivery Time :
10 work days
IP Rating :
IP65
Payment Terms :
T/T,L/C
Pixel Pitch :
5 mm
Brightness :
5500nits
Price :
Negotiate
LED Type :
SMD1921
Supply Ability :
3000sqm/month
Product Name :
P5 Outdoor LED Display Panel FX-Block Series 960×540 mm 16:9 Gold Ratio 5500nits
Cabinet Material :
Aluminum profile
Brand Name :
VW
Driving Type :
1/9
Packaging Details :
Plywood case, flight case
Certification :
CE, ROHS, FCC
Place of Origin :
CN
Cabinet Dimension :
960×540 mm
Description
P5 Outdoor LED Display Panel FX-Block Series
960×540 mm 16:9 Gold Ratio 5500nits High-Brightness Outdoor LED Screen

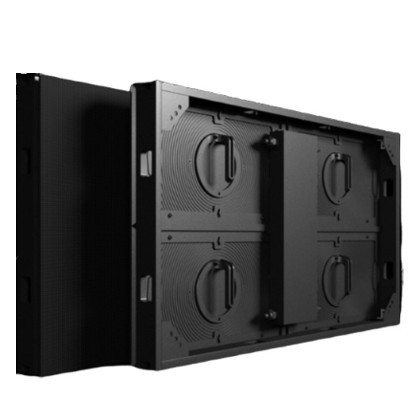

The P5 Outdoor LED Screen is a robust and high-performance display solution designed for outdoor environments where durability and visual excellence are paramount. This display module, measuring 960mm by 540mm, is meticulously crafted with an aluminum profile that ensures structural integrity while maintaining a lightweight and sleek design.
P5 Outdoor LED Display Panel FX-Block Series 960×540 mm 16:9 Gold Ratio 5500nits
Key Features

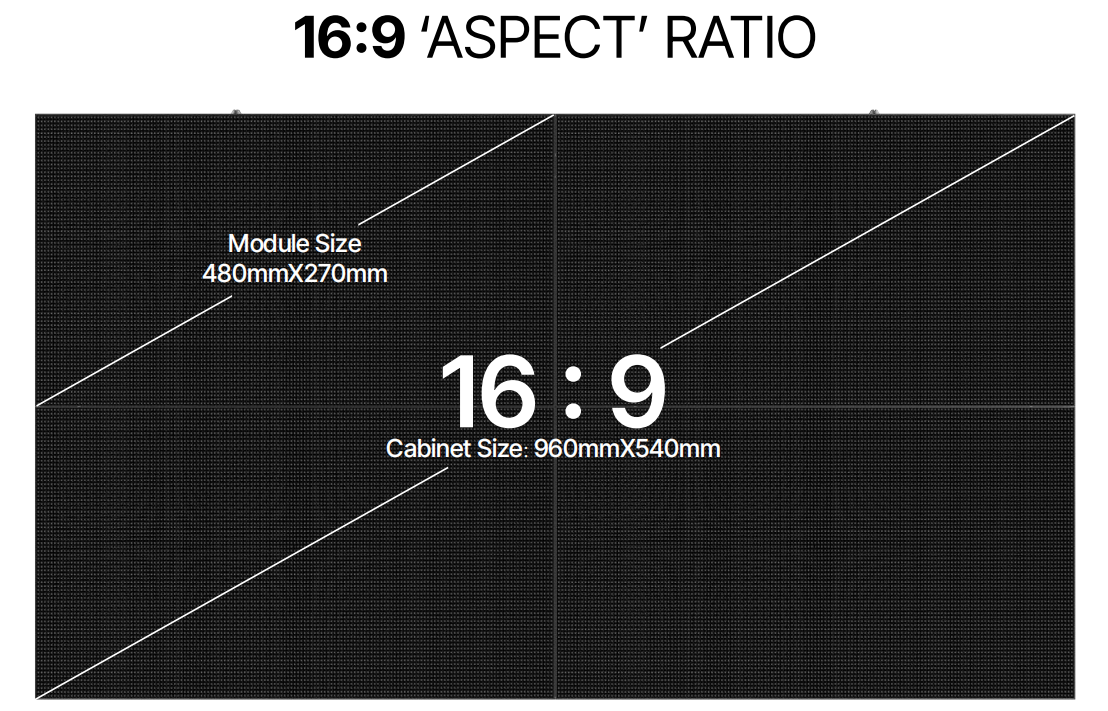

  • 16:9 Gold Ratio - Module size: 480×270mm; Cabinet size: 960×540mm
  • Thin and Lightweight - Single cabinet weighs only 11.5kg with 58mm thickness
  • Module Magnet Design - Power box can be individually removed for maintenance
  • Modular Design - Front service accessibility
  • Quick and Easy Installation
Technical Specifications
ParameterSpecification
Pixel Pitch5 mm
LED TypeSMD1921
Cabinet Dimension960×540 mm
Module Size480×270 mm
Cabinet Weight13kg
Cabinet MaterialAluminum Profile
Driving Type1/9
Brightness5500 nits
Max/Avg Power720/252 W/m²
MaintenanceFront service
IP RatingIP65
Refresh Rate>3840 Hz
Installation TypeMounting/Hanging
Gray Scale14 bit
Viewing AngleH:140°; V:140°
Operational Temperature-20℃ to +50℃
Operational Humidity10% to 90% RH
Applications
  • Outdoor Advertising: High brightness and weather resistance make it perfect for outdoor advertising billboards
  • Public Information Displays: Ideal for real-time information in public spaces, squares, parks, and transportation hubs
  • Branding and Identity: Showcase brand messages with high visual impact in outdoor commercial spaces
  • Live Events: Enhance visibility at concerts, sports events, and trade shows
P5 Outdoor LED Display Panel FX-Block Series 960×540 mm 16:9 Gold Ratio 5500nits P5 Outdoor LED Display Panel FX-Block Series 960×540 mm 16:9 Gold Ratio 5500nits
Installation
Professional installation of outdoor LED display systems
P5 Outdoor LED Display Panel FX-Block Series 960×540 mm 16:9 Gold Ratio 5500nits
Frequently Asked Questions
Q: How is front maintenance performed?

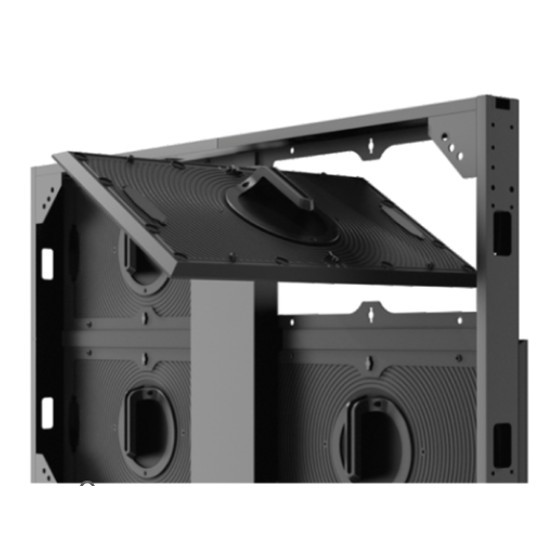

A: Open the 2 safety locks on the front of the module with a hexagonal wrench (turn right to open, turn left to lock). Place the front maintenance vacuum tool on the surface of the faulty module and turn it on to suck and pull out the module, then replace it with a new module and lock the safety locks.
Q: Is this display suitable for outdoor use?
A: Yes. The cabinet is dustproof and waterproof with IP65 protection grade and V0 grade fireproof material, and operates reliably from -30°C to +50°C.
Q: What installation methods are supported?
A: Both wall mounting and column installation are supported, enabling quick and easy on-site installation for storefronts, billboards and building facades.
Q: Can the modules be maintained from the back?
A: Yes, back maintenance is also supported. Open the 2 safety locks at the back, push the module forward to dismantle it and pull it backward through the frame, then install the new module and lock the safety locks.
