Specifications
Pixel Pitch :
4mm
Cabinet Dimension :
320x320mm
Brightness :
5000 nits
Cabinet Weight :
15kg/sqm
IP Rating :
IP67
Module Resolution :
80*80
Place of Origin :
CN
Payment Terms :
T/T
Model Number :
P4
Packaging Details :
plywood case
LED Type :
SMD1921
Brand Name :
VW
MOQ :
Negotiate
Supply Ability :
2000sqm/month
Pixel Density :
62500 dots/sqm
Max/Avg Power :
800/280 W/m2
Module Material :
Die-casting aluminum
Maintenance :
Front service
Price :
Negotiate
Delivery Time :
15 work days
Product Name :
P4 Outdoor LED Display Module Die-Cast Front Service IP67 Screen 320x320mm
Certification :
CE, EMC, LVD, ROHS, FCC
Description
P4 Outdoor LED Display Module Die-Cast Front Service IP67 Screen 320x320mm
The P4 Outdoor LED Display Module from the SMART BLOCK series delivers 62500 dots/sqm pixel density in a 320x320mm die-casting aluminum cabinet. Equipped with SMD1921 LED technology, this module offers an ideal balance of resolution and cost for mid-range outdoor advertising applications. The front service magnetic module design and IP67 weatherproof rating make it a reliable choice for permanent outdoor installations.
Key Features
  • SMD1921 LED Package: Achieves 62500 dots/sqm density, delivering crisp image quality for outdoor advertising at 4 meter viewing distances.
  • Die-casting Aluminum Frame: Precision die-cast aluminum cabinet at 320x320mm, 15kg/sqm ensures lightweight yet rigid panel alignment for large display wall assemblies.
  • Front Service Access: Magnetic quick-release module system enables tool-free front-side module replacement, significantly reducing maintenance downtime for wall-mounted outdoor installations.
  • IP67 Full Weatherproofing: Superior IP67 ingress protection exceeds standard IP65, providing complete dust sealing and water immersion resistance for reliable performance in extreme outdoor conditions.
Technical Specifications
Product Model SMART BLOCK
Pixel Pitch 4 mm
LED Type SMD1921
Pixel Density 62500 dots/sqm
Cabinet Dimension 320x320mm
Cabinet Resolution 80*80
Cabinet Weight 15kg/sqm
Cabinet Material Die-casting aluminum
Brightness 5000 nits
Max/Avg Power 800/280 W/m²
Maintenance Front service
Environment Outdoor Use
IP Rating IP67
Installation Type Mounting/Hanging
Applications
Ideal for outdoor advertising billboards, commercial building facade displays, retail storefront digital signage, and outdoor event screens. The 4mm pixel pitch offers an optimal balance of detail and cost for viewing distances of 4 meters, making it the workhorse choice for medium-scale outdoor LED advertising projects.
Frequently Asked Questions
What viewing distance is the P4 module optimized for?
The 4mm pixel pitch provides optimal visual performance at viewing distances of 4 meters, making it suitable for roadside billboards, building facade screens, and mid-range outdoor advertising displays.
How does the SMART BLOCK front service work?

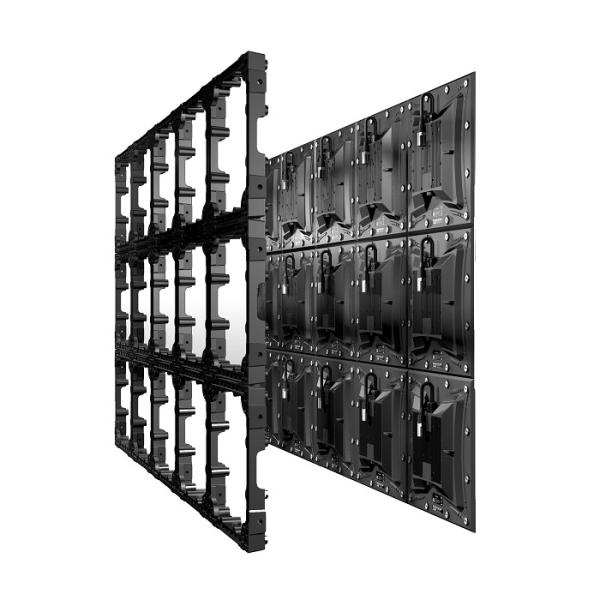

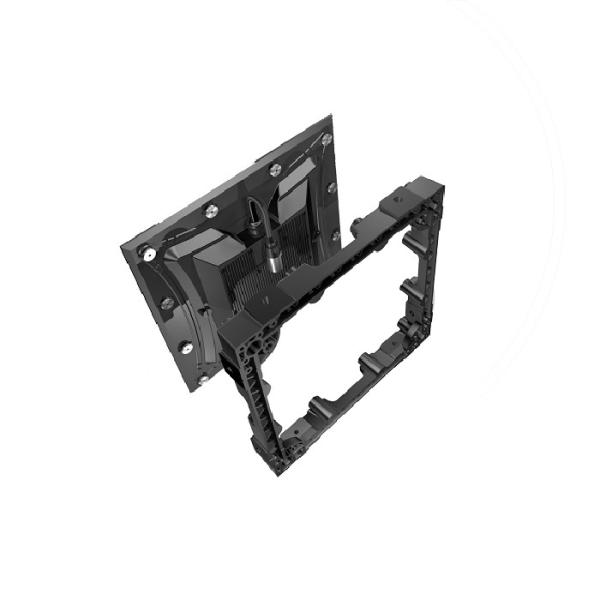

Modules attach magnetically to the die-cast aluminum frame, allowing tool-free removal from the front. An optional safety rope provides additional security. This enables rapid on-site maintenance without rear cabinet access.
What control systems are compatible?
Compatible with NovaStar, Colorlight, and Linsn synchronous receiving cards. Asynchronous operation via Onbon and Xixun controllers is also supported for standalone installations.
What is the power consumption per square meter?
Maximum consumption is 800W/sqm at full white brightness, with average video playback drawing 280W/sqm. For large installations exceeding 20sqm, a 380V three-phase power supply is recommended.
