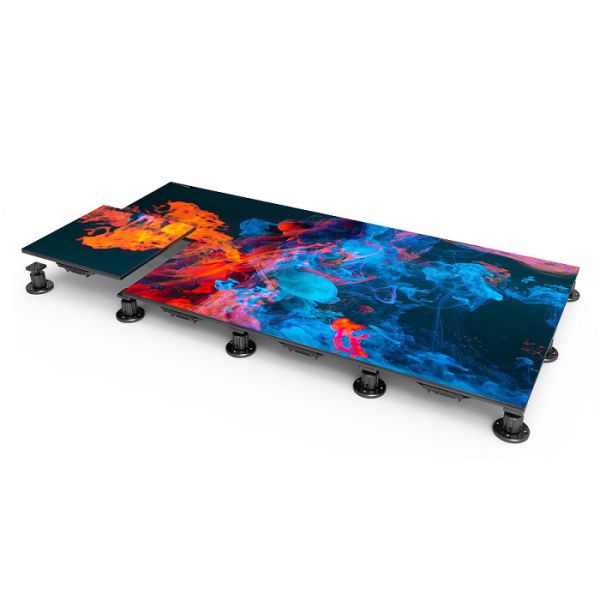

P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
Specifications
Payment Terms :
T/T,L/C,D/A,D/P
Model Number :
FD2.97(COD)
Packaging Details :
Wooden box, Flight case
Pixel Pitch :
2.97mm
MOQ :
Negotiate
Cabinet Size :
500x500mm
Connection Type :
N52 Neodymium Magnetic Lock
Cabinet Weight :
13.5kg
Refresh Rate :
≥3840Hz
Brand Name :
VW
Module Size :
250x250mm
IP Rating :
Front: IP54 Rear: IP31
Installation Type :
Magnetic Snap-on / Rail
Delivery Time :
20-25 days
Cabinet Material :
Die-casting Aluminum
Brightness :
1000-4000nits
Product Name :
P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
LED Type :
SMD1415
Place of Origin :
Guangdong, China
Mask Type :
COD
Price :
Negotiate
Supply Ability :
3000sqm/month
Load Bearing :
1.5-2.0T/m²
Certification :
CE, EMC, FCC, ROHS
Description
P2.97 Magnetic LED Dance Floor 500x500mm Quick Assembly For Events Rental
The P2.97 Magnetic LED Dance Floor Display features high-strength neodymium magnetic connectors for tool-free snap-on assembly, making it ideal for rental companies and event organizers. With a lightweight 14.5kg design and IP54 front protection, it delivers rapid deployment and maximum portability for touring productions.
Key Features
  • Magnetic Quick Assembly: High-strength N52 neodymium magnetic connectors on all four sides snap panels together instantly without tools, screws, or alignment pins.
  • Lightweight Portable Design: At only 14.5kg per panel, the slim-profile cabinet is easy to transport, stack, and store, compatible with standard flight cases and truck loading dimensions.
  • Interactive Floor Experience: Built-in pressure-sensitive sensor matrix detects foot traffic and creates visual trails, interactive games, and responsive light effects at events.
  • Efficient Cable Management: Integrated cable channels with magnetic cover plates keep power and signal cables organized and protected from foot traffic.
  • Advanced Thermal Management: The built-in heat dissipation system, featuring an aluminum casing, efficiently manages heat, ensuring the floor operates at peak efficiency and retains its durability.
Technical Specifications
Product Model FD2.97
Pixel Pitch 2.97mm
LED Type SMD1415
Mask Brown/Creamy
Cabinet Dimension 500×500mm
Module Size 250×250mm
Cabinet Weight 14.5kg
Cabinet Material Die-casting Aluminum
Connection Type N52 Neodymium Magnetic Lock
Load Bearing 1.5-2.0T/m²
Brightness 1000-4000nits
Max/Average Power 750/250w per m²
Refresh Rate ≥3840Hz
Gray Scale 14-16 Bit
IP Rating Front: IP54, Rear: IP31
Installation Type Magnetic Snap-on / Rail
Applications
  • Rental and Event Companies: Rapid deployment and teardown reduces labor costs and enables more events per week.
  • Weddings and Galas: Create stunning interactive dance floors that transform venue aesthetics without complex setup.
  • Corporate Product Launches: Deploy branded interactive floor displays quickly for high-impact launch events.
  • Touring Productions: Lightweight panels in flight cases minimize freight costs and simplify venue logistics.
Frequently Asked Questions
How strong are the magnetic connections?
Each N52 neodymium magnetic lock provides over 80kg of holding force. With 8 connection points per panel (2 per side), total holding force exceeds 640kg, ensuring stable alignment under heavy foot traffic.
How does this compare to traditional bolt-fixed floors for setup speed?
Traditional bolt-fixed floors require 20-30 minutes for a 10m² setup with tools. Our magnetic system achieves the same area in 10-15 minutes with two people and zero tools, representing a 50% labor time reduction.
Can the magnetic system handle outdoor events?
Yes. The magnetic connectors are sealed with silicone O-rings against moisture. Combined with IP54 front protection, the system performs reliably at outdoor concerts, festivals, and covered events.
Is the magnetic connection safe for public events?
Absolutely. The magnets engage only horizontally between panels. Panels also have adjustable support feet taking vertical load. The system passed CE safety certification for public event use.
What is your typical production lead time?
Lead time varies by project: Standard models: 7-15 days; Custom/OEM solutions: 15-30 days; Large projects: Production schedule is confirmed case-by-case.
