P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL
P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL
P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL
P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL
P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL
P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL
P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL
P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL
P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL
P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL
P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL
P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL
Specifications
Gray Scale :
16bit
Supply Ability :
3000sqm per month
Brand Name :
VW
Price :
Negotiate
Delivery Time :
10 work days
Maintenance :
Front & Rear Service
Pixel Pitch :
2.97mm
Product Name :
P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL
Refresh Rate :
3840Hz
Module Resolution :
84x168 dots
Module Size :
250x500mm
Payment Terms :
T/T,L/C,D/A,D/P
Packaging Details :
flight case, plywood box
Certification :
EMC,CE,FCC,ROHS
Cabinet Dimension :
500x500mm
MOQ :
Negotiate
Cabinet Weight :
8.5kg
Model Number :
Q2.97i
Place of Origin :
CN
Cabinet Material :
Die-casting AL
LED Type :
SMD1515
Cabinet Resolution :
168x168 dots
Description

P2.97 Indoor Concert Stage Rental LED Display 500x500mm Die-Cast AL


Product Description:

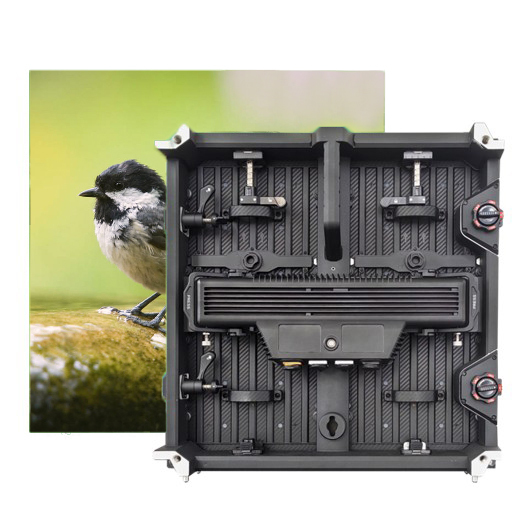

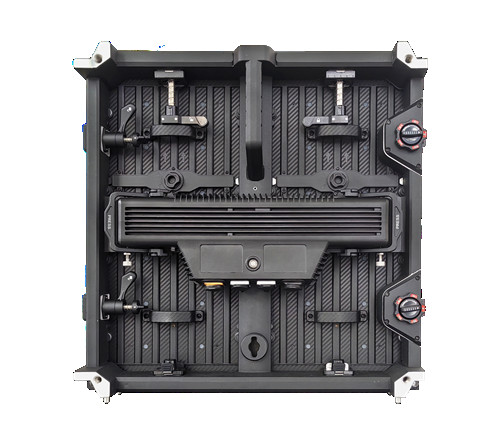

P2.97 Indoor Concert Stage Rental LED Display features a 500x500mm die-cast aluminum cabinet with 84x168 dot module resolution, delivering sharp visuals at a competitive pixel pitch. Weighing just 8.5kg with 800-1000 nits brightness, this display is optimized for concert touring, live performances, and indoor broadcast events where balanced resolution and operational efficiency matter.

Features:

  • 2.97mm Pixel Pitch with 84x168 Dot Module: Balanced resolution for viewing distances from 3m, ideal for concert stage backdrops.
  • Die-Cast Aluminum 500x500mm Cabinet: Precision flatness at only 8.5kg for fast rigging and touring logistics.
  • 800-1000 nits Optimized Brightness: Sufficient for indoor stage lighting while maintaining low power draw at 560W/m2 max.
  • 168x168 Dot Cabinet Resolution: Clean pixel mapping for content playback and IMAG (Image Magnification) feeds.
  • Front & Rear Service: On-stage module replacement without dismantling the screen structure.
  • 3840Hz Refresh with 16bit Gray Scale: Smooth gradients and flicker-free video for live cameras and recording.
  • Radian Lock Ready: Supports curved screen configurations for creative stage designs.


Technical Parameters:

Model Q2.97i
Pixel Pitch 2.97mm
LED Type SMD1515
Module Size 250x500mm
Module Resolution 84x168 dots
Cabinet Dimension 500x500mm
Cabinet Resolution 168x168 dots
Cabinet Material Die-casting AL
Cabinet Weight 8.5kg
Brightness 800-1000 nits
Refresh Rate 3840Hz
Gray Scale 16bit
Max Power 560W/m2
Avg Power 224W/m2
Input Voltage AC100-240V 50/60Hz
Scan 1/21
Viewing Angle H:160°; V:160°
IP Rating IP30
Operational Temp -20°C to 50°C
Operational Humidity 10%-80%RH
Maintenance Front & Rear Service
Certification EMC, CE, FCC, ROHS


Applications:

P2.97 indoor rental displays are designed for concert touring, music festivals, live TV productions, award ceremonies, theater performances, and corporate keynote events requiring reliable, quick-setup indoor LED screen solutions.


FAQ:

Q1: Are you a manufacturer or trading company?

- We are a professional OEM/ODM manufacturer, which has specialized in the LED display industry for more than 10 years.
- We have cooperated with more than 30 brands and has projects in more than 90 countries.

Q2: How to install?
- Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging.
- Technical support: Provide technical consultation and guidance to help users solve problems encountered during use.
- Remote collaboration: Specialized after-sales department online remote operation to ensure the normal use of the screen.

Q3: What about your quality?
- The lamp beads used in our LED display are all genuine lamp beads. We do not use scattered lights and tail lights.
- Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.

Q4: What about the warranty?
- Calculated from the goods to the customer, the warranty period is 5 years. If there is a problem with the module, you can send it back to us for repair.

Q5: What about the lead time?
- Orders less than 50 square meter display, lead time is 15 working days.

Q6: Can I order a sample?
- Yes, We welcome customers to order samples to check our product quality and service.

Q7: What is your MOQ?
- Any quantity is acceptable for your order. And the price is negotiable for large quantities.
