Specifications
Certification :
EMC, CE, FCC, ROHS
Pixel Pitch :
P5.7
MOQ :
Negotiable
Packaging Details :
Flight case, plywood box with foam protection
Model Number :
P5.7
Supply Ability :
2000sqm per Month
Cabinet Material :
Aluminum Profile
Refresh Rate :
≥3840Hz
Brightness :
>6500nits
Cabinet Weight :
38kg/cabinet
IP Grade :
IP65
Brand Name :
VW
Place of Origin :
Guangdong, China
Price :
Negotiable
Payment Terms :
T/T,L/C,D/A,D/P
Product Name :
P5.7 Sport Perimeter LED Display 3840Hz IP65 6500nits 960x960mm Aluminum
Delivery Time :
5-10 working days
Module Size :
480*320mm
Cabinet Size :
960*960*106.5mm
Maintenance :
Front/Rear Service
Description

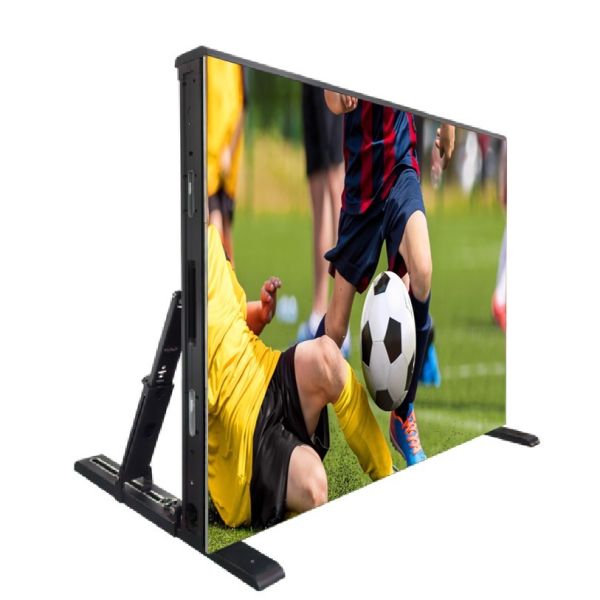

P5.7 Sport Perimeter LED Display
3840Hz IP65 6500nits 960x960mm Aluminum
Product Overview
The P5.7 Sports Perimeter LED Display combines a lightweight, ultra-thin design for effortless transport and installation. Its 3840Hz ultra-high refresh rate ensures flicker-free performance for live HD broadcasting, making it the ideal choice for televised sporting events. The aluminum profile cabinet with IP65 rating provides reliable outdoor protection.
Key Features
  • 3840Hz ultra-high refresh rate for broadcast-grade performance
  • Anti-collision protection: Module masks and rubber gasket prevent athlete injuries from impacts
  • Lightweight aluminum profile cabinet for easy handling and installation
  • Front and rear service access with spring-screw quick-release mechanism
Technical Specifications
Parameter P5.7
Pixel Pitch 5.7mm
Module Size 480*320mm
Cabinet Size 960*960*106.5mm
Working Voltage 3.2/4.2V
Scan Mode 1/7
Cabinet Material Aluminum Profile
Cabinet Weight 38kg/cabinet
Brightness >6500nits
Power Consumption 650/228w/m²
Maintenance Front/Rear Service
IP Rating IP65
Refresh Rate ≥3840Hz
Viewing Angle H:140°; V:140°
Operational Temperature ﹣20~50℃
Operational Humidity 10%~90%RH
Applications
Sport stadium LED screens are designed for brand marketing during major sporting events. The advertising display is simple and impactful with company logos. Ideal applications include:
  • Football / Soccer stadiums
  • Basketball and multi-sport arenas
  • Tennis and hockey courts
  • Athletics tracks and field events
  • Large-scale outdoor events and tournaments
Frequently Asked Questions
What is the pixel pitch and how does it affect display quality?
Pixel pitch is the distance between LED lamp centers measured in millimeters. A smaller pitch delivers higher resolution and better image clarity at closer viewing distances. For stadium perimeters, P5.7-P10 are common choices depending on spectator distance.
Is this LED display suitable for outdoor use?
Yes. Our sport perimeter displays are IP65 rated for front protection and IP54 for the rear, designed to withstand rain, dust, and direct sunlight with 6000-6500nits brightness for clear visibility.
How is the display protected against player impact?
Each cabinet features a soft rubber mask and protective gasket system that absorbs impact, protecting both athletes and the LED modules during matches.
What maintenance options are available?
Depending on the model, both front and rear service access are supported. Spring-screw mechanisms and integrated power/signal cables enable rapid module replacement without disassembling the entire screen.
Do you ship globally?
Yes. We export to 130+ countries, offering air, sea, and express shipping with flight case or plywood box packaging to ensure safe delivery.
