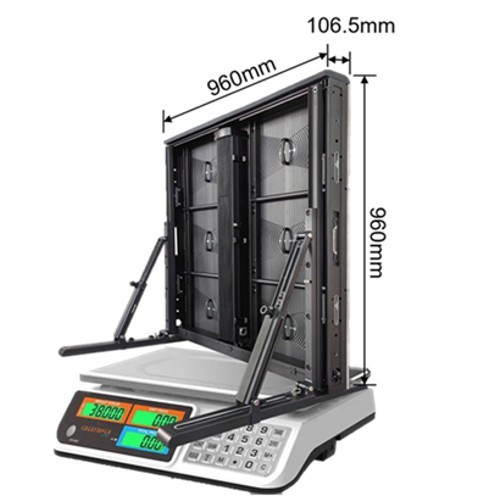

P6.67 Sport Perimeter LED Display Front Rear Service IP65 6500nits 960x960mm
P6.67 Sport Perimeter LED Display Front Rear Service IP65 6500nits 960x960mm
P6.67 Sport Perimeter LED Display Front Rear Service IP65 6500nits 960x960mm
P6.67 Sport Perimeter LED Display Front Rear Service IP65 6500nits 960x960mm
P6.67 Sport Perimeter LED Display Front Rear Service IP65 6500nits 960x960mm
P6.67 Sport Perimeter LED Display Front Rear Service IP65 6500nits 960x960mm
P6.67 Sport Perimeter LED Display Front Rear Service IP65 6500nits 960x960mm
P6.67 Sport Perimeter LED Display Front Rear Service IP65 6500nits 960x960mm
P6.67 Sport Perimeter LED Display Front Rear Service IP65 6500nits 960x960mm
P6.67 Sport Perimeter LED Display Front Rear Service IP65 6500nits 960x960mm
P6.67 Sport Perimeter LED Display Front Rear Service IP65 6500nits 960x960mm
P6.67 Sport Perimeter LED Display Front Rear Service IP65 6500nits 960x960mm
Specifications
Model Number :
P6.67
Delivery Time :
5-10 working days
Supply Ability :
2000sqm per Month
Place of Origin :
Guangdong, China
Certification :
EMC, CE, FCC, ROHS
Pixel Pitch :
P6.67
Cabinet Material :
Aluminum Profile
Refresh Rate :
≥3840Hz
Packaging Details :
Flight case, plywood box with foam protection
Brightness :
>6500nits
MOQ :
Negotiable
Cabinet Weight :
38kg/cabinet
Brand Name :
VW
Payment Terms :
T/T,L/C,D/A,D/P
Module Size :
480*320mm
IP Grade :
IP65
Price :
Negotiable
Product Name :
P6.67 Sport Perimeter LED Display Front Rear Service IP65 6500nits 960x960mm
Cabinet Size :
960*960*106.5mm
Maintenance :
Front/Rear Service
Description
P6.67 Sport Perimeter LED Display
High-performance LED display featuring 6500nits brightness and 6.67mm pixel pitch, designed specifically for sports venues with dual front/rear service access for minimal downtime during events.
Key Features
  • Dual front and rear service access for quick maintenance during events
  • Anti-collision protection with soft rubber mask and integrated gasket
  • Lightweight aluminum profile cabinet with excellent heat dissipation
  • Integrated power and signal cables for simple assembly and fixed installation
Technical Specifications
Pixel Pitch 6.67mm
Module Size 480×320mm
Cabinet Size 960×960×106.5mm
Working Voltage 3.2/4.2V
Scan Mode 1/6
Cabinet Material Aluminum Profile
Cabinet Weight 38kg/cabinet
Brightness >6500nits
Power Consumption 540/218w/m²
Maintenance Front/Rear Service
IP Rating IP65
Refresh Rate ≥3840Hz
Viewing Angle H:140°; V:140°
Operational Temperature ﹣20~50℃
Operational Humidity 10%~90%RH
Applications
Ideal for brand marketing during major sporting events with simple and impactful advertising displays featuring company logos.
  • Football / Soccer stadiums
  • Basketball and multi-sport arenas
  • Tennis and hockey courts
  • Athletics tracks and field events
  • Large-scale outdoor events and tournaments
Frequently Asked Questions
What is the pixel pitch and how does it affect display quality?
Pixel pitch is the distance between LED lamp centers measured in millimeters. A smaller pitch delivers higher resolution and better image clarity at closer viewing distances. For stadium perimeters, P5.7-P10 are common choices depending on spectator distance.
Is this LED display suitable for outdoor use?
Yes. Our sport perimeter displays are IP65 rated for front protection and IP54 for the rear, designed to withstand rain, dust, and direct sunlight with 6000-6500nits brightness for clear visibility.
How is the display protected against player impact?
Each cabinet features a soft rubber mask and protective gasket system that absorbs impact, protecting both athletes and the LED modules during matches.
What maintenance options are available?
Depending on the model, both front and rear service access are supported. Spring-screw mechanisms and integrated power/signal cables enable rapid module replacement without disassembling the entire screen.
Do you ship globally?
Yes. We export to 130+ countries, offering air, sea, and express shipping with flight case or plywood box packaging to ensure safe delivery.
