IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs
IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs
IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs
IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs
IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs
IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs
IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs
IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs
IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs
IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs
IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs
IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs
Specifications
Brand Name :
Ledcolourlight
Model Number :
LCL-RGB-LP40-DMX-24V-0601
Place Of Origin :
Shenzhen, China
Certification :
CE
MOQ :
500
Packaging Details :
52*38*31cm, 620 Nodes Per Box
Delivery Time :
12~15 Working Days
Payment Terms :
T/T,PayPal
Product Name :
RGB Pixel Dot Light String
Light Type :
SMD3535 * 6
Control :
DMX512, SPI
Color :
RGB, RGBW
Working Voltage :
DC24V
Power Consumption :
1.44W Per Node
Length :
1m/5m/10 Meters
Material :
Black PC Shell + Transparent Diffuser
Usage :
Indoor And Outdoor
Lifespan :
50,000 hours
IP Rating :
IP66
Customization :
Pixel spacing and string length
Description

IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs

IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs

Product Description:

The 40mm Pixel Dot String Light is a versatile and high-performance linear lighting solution designed for architectural facades, signage, landscape projects, and event decorations. Each dot features high brightness SMD3535 LEDs available in two configurations: RGB 6 LEDs 1.44W or RGBW 6+2 LEDs 1.96W for enhanced white color mixing.

Housed in a durable black or off-white PC shell with optional PC diffuser covers, including flat clear, frosted, milky white, striped, semi-sphere diamond, and semi-sphere milky white, this pixel dot light delivers customized optical effects for any application.

The string comes with 4-pin waterproof input output cables and supports DMX512 control protocol. Center-to-center spacing can be customized from as short as 7cm to 20cm, 30cm, 50cm, or longer. Each string is available in 10, 20, 30 pieces, or custom length. Operating at DC24V low voltage, it is safe and efficient for long-term outdoor use.

Features:

  1. LED Options: RGB 6 LEDs SMD3535 1.44W per dot or RGBW 6+2 LEDs SMD3535 1.96W per dot
  2. Voltage: DC24V, low voltage safe for outdoor installation
  3. Control: DMX512 protocol for precise addressing and dynamic effects
  4. Housing Color: Black or off-white PC shell
  5. PC Diffuser Options: Flat clear, flat frosted, flat milky white, flat striped, semi sphere diamond, semi sphere milky white
  6. Spacing: Customizable from 7cm minimum to 20cm, 30cm, 50cm, or longer
  7. String Length: 10, 20, 30 pieces per string or custom quantity
  8. Cable: 4-core waterproof input output cables
  9. Applications: Building facades, channel letters, landscape lighting, bridges, event stages, retail displays
  10. Durability: Weather-resistant housing suitable for outdoor environments

Technical Parameters:

Product Name 40mm Dot String Lights
Color RGB RGBW
Light Type SMD3535 * 6 SMD3535 * 6+2
Usage Indoor And Outdoor (Waterproof Outdoor String Lights)
Number of LEDs 10/20/50 Per String
Control DMX512, SPI
Voltage DC24V
Power Consumption 1.44W 1.96W
Material Black PC Shell + Transparent Diffuser
Flexibility Bendable And Twistable
Spacing 10cm, 20cm, 50cm Custom
Application Facade Signage Landscape Stage

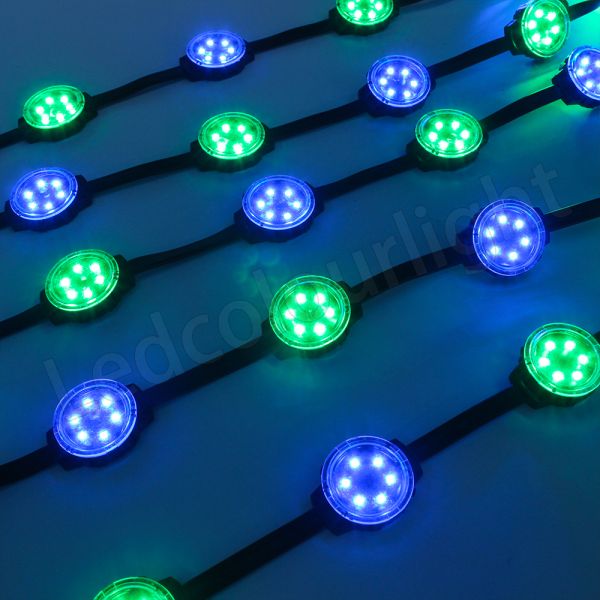

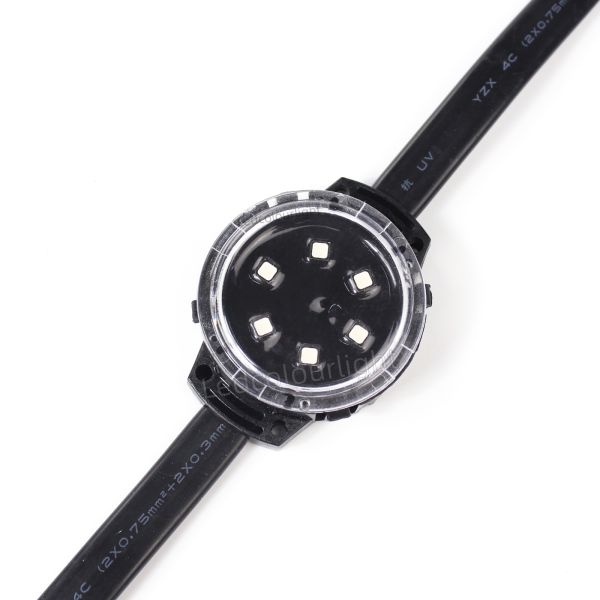

Product Photos:

IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDsIP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs

IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDsIP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs

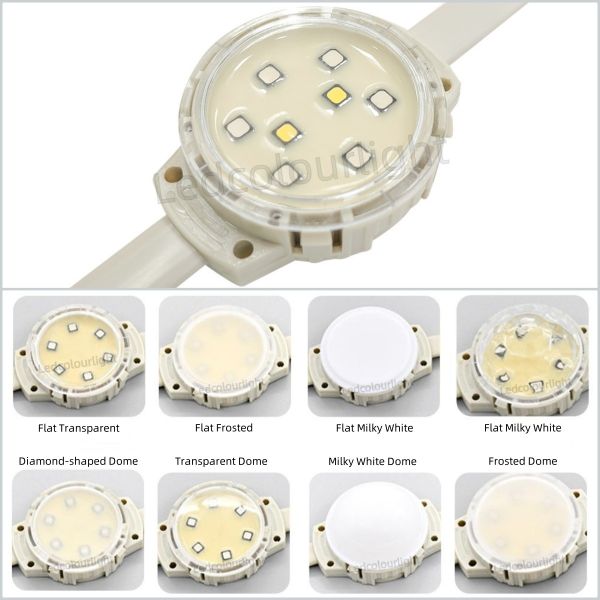

Different Diffuser Options
IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs

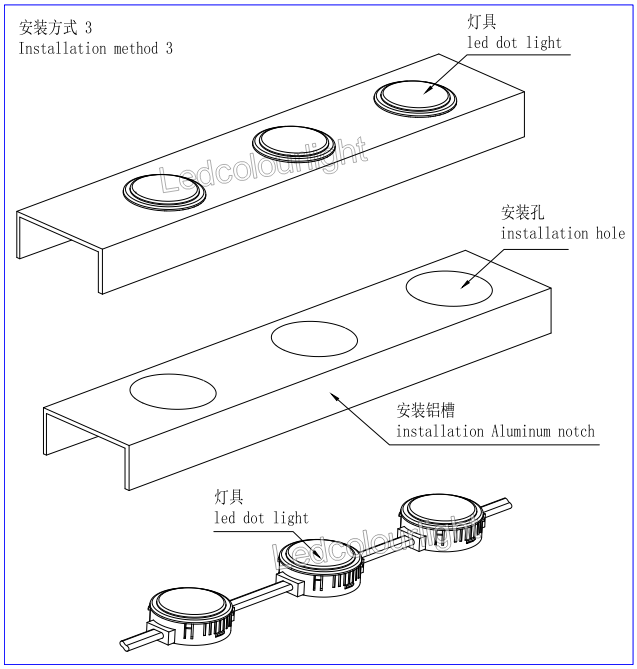

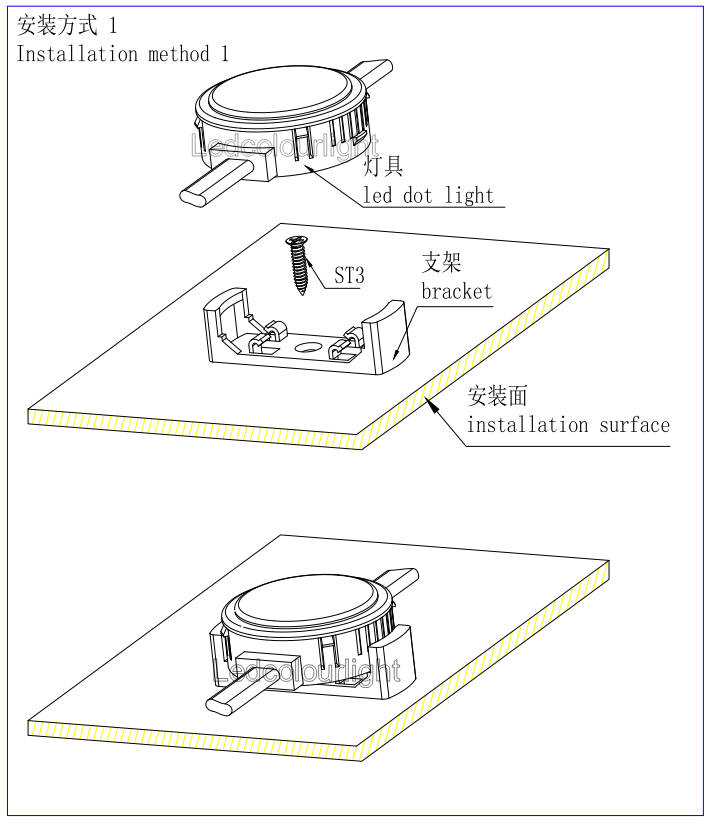

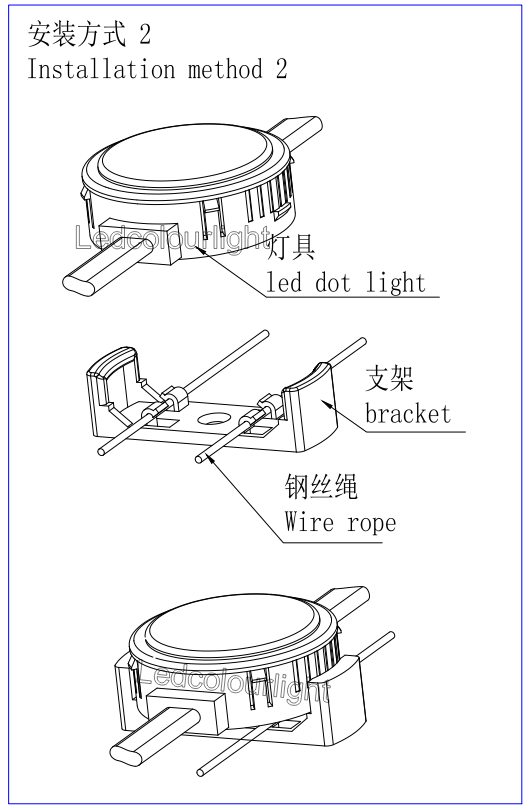

Various Mounting Methods for 40mm LED Pixel Dot Light String
IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDsIP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDsIP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs

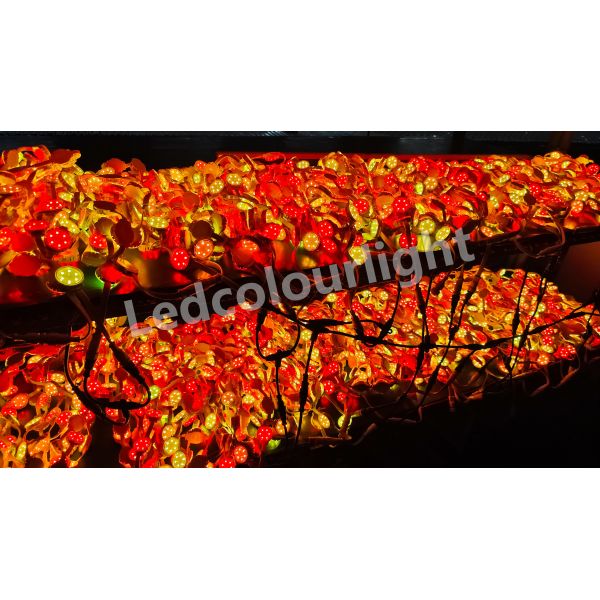

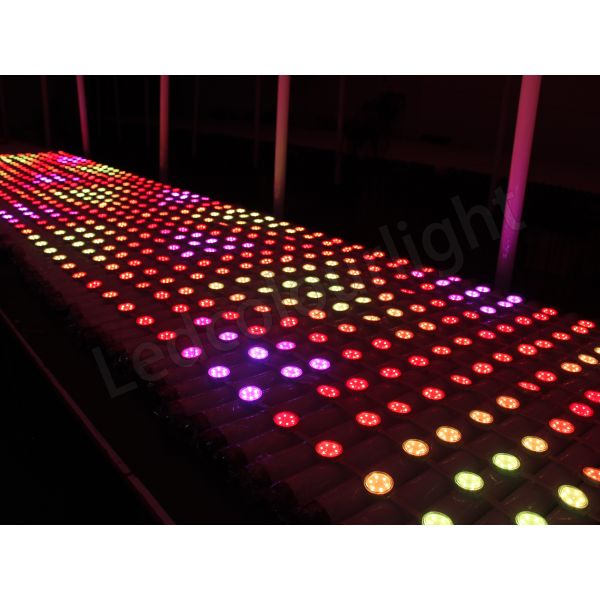

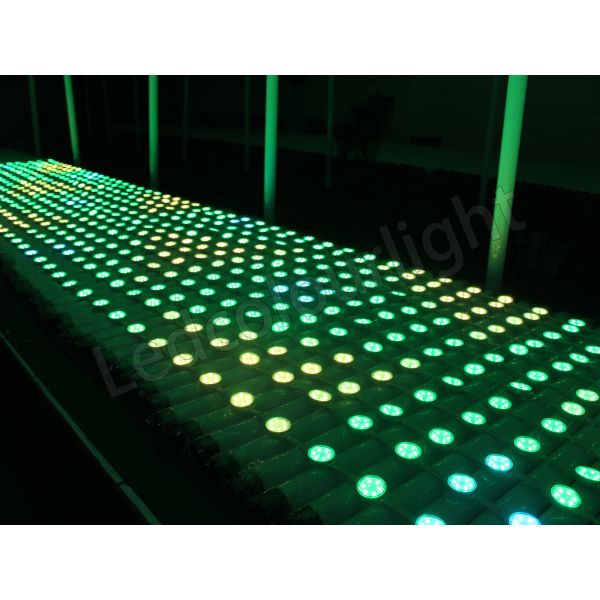

48~72 Hours on the Aging Test

IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs

IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs

IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs

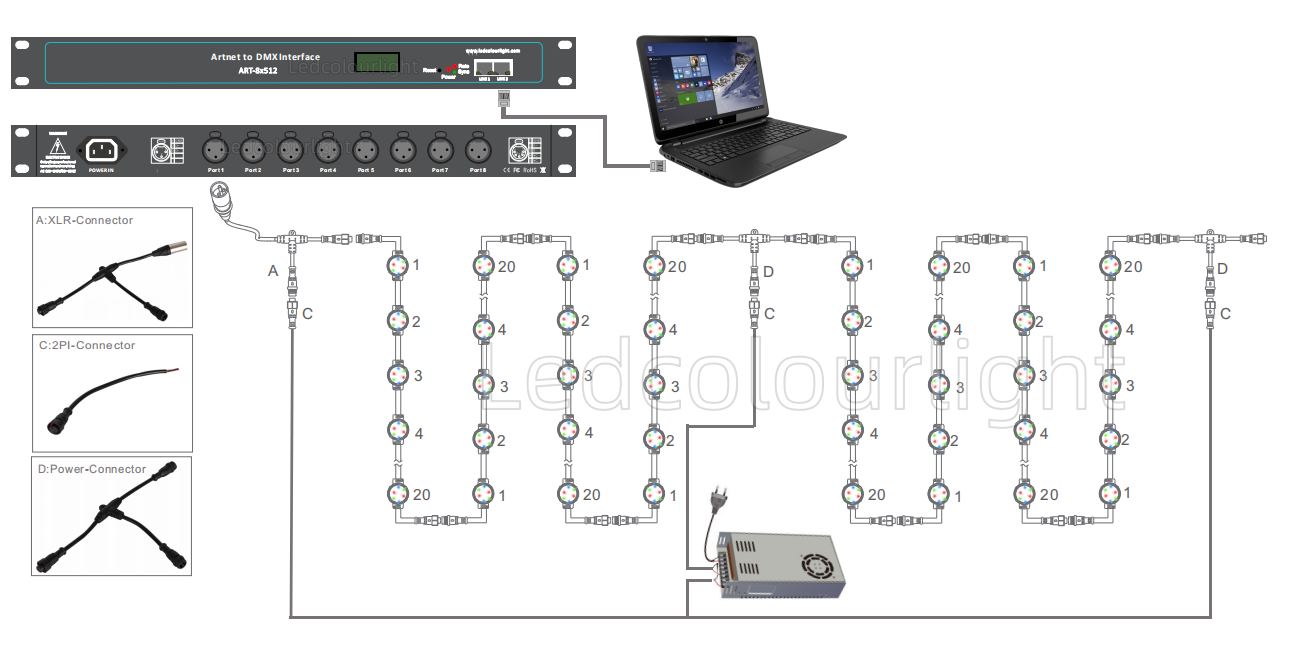

Connection Diagram for LED Pixel Dot Light String

IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs

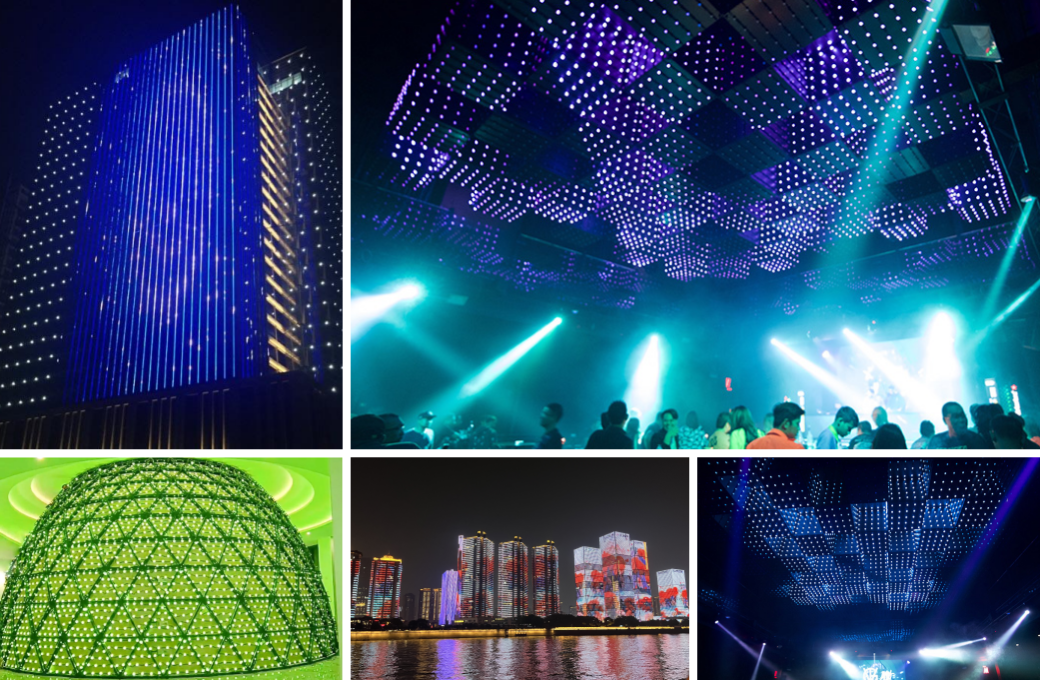

Applications:

The 40mm Pixel Dot String Light is designed for a wide range of indoor and outdoor lighting projects:

  1. Building Facades – Outline windows, walls, and building perimeters with dynamic RGB or RGBW effects.
  2. Channel Letters & Signage – Illuminate signs with bright, even light. The RGBW option delivers clean white for logos and text.
  3. Landscape Lighting – Highlight trees, pathways, garden borders, and architectural features with customizable spacing.
  4. Bridge & Infrastructure Lighting – Add visual interest to railings, arches, and under-bridge areas.
  5. Event & Stage Decoration – Create eye-catching backdrops, curtain effects, and dance floor accents.
  6. Retail & Hospitality – Enhance storefronts, restaurant exteriors, and hotel lobbies.
  7. Media Facades & Pixel Walls – Ultra-tight 7cm spacing enables high-resolution video mapping on building exteriors.
  8. Holiday & Seasonal Displays – Easy-to-install strings for festive lighting.

IP66 DC24V 40mm RGB Pixel Dot String Light 1 Meter 10 LEDs

FAQ:

Q1: What is the minimum center-to-center spacing?

A1: The minimum spacing is 7 centimeters for ultra-high-density pixel wall applications.

Q2: Can I customize the number of dots per string?

A2: Yes. The options are 10, 20, or 30 dots per string. Custom quantities are available upon request.

Q3: What diffuser options are available, and what effect do they create?

A3: Eight options available. Flat transparent for maximum brightness, flat frosted for soft diffusion, flat milky white for even glow, flat striped for linear light effect, semi sphere diamond for sparkle, semi sphere milky white for wide-angle uniform glow.

Q4: How is this product controlled?

A4: DMX512 protocol works with any standard DMX controller for addressing and dynamic effects.

Q5: Is this product suitable for outdoor use?

A5: Yes. The PC housing and waterproof cables are designed for outdoor environments. IP66 waterproof protection.

Q6: How many dots can I connect in one chain?

A6: Typically 60 to 80 dots, depending on spacing and power supply capacity. For longer runs, use power injection or multiple driver outputs.

Q7: Can I get a sample before placing a large order?

A7: Yes. Samples are available. Contact us with your configuration requirements.
