Specifications
Strip Type :
Side emitting
Model Number :
LCL-WS2811-RGB-Side-emitting
Payment Terms :
T/T,Western Union
LED QTY :
60 LEDs/M
IP Rate :
IP65
Voltage :
DC12V
Light Source :
RGB SMD020 LED
Place of Origin :
Shenzhen, China
Lifespan :
50000 Hours
Pixels :
20 Pixels/M
Power :
14.4W/M
IC Chip :
WS2811
Certification :
CE & RoHS
Packaging Details :
60x38x30cm, 100 bags
Product Name :
WS2811 RGB LED Strip Light
Brand Name :
Ledcolourlight
MOQ :
50 meters
Description

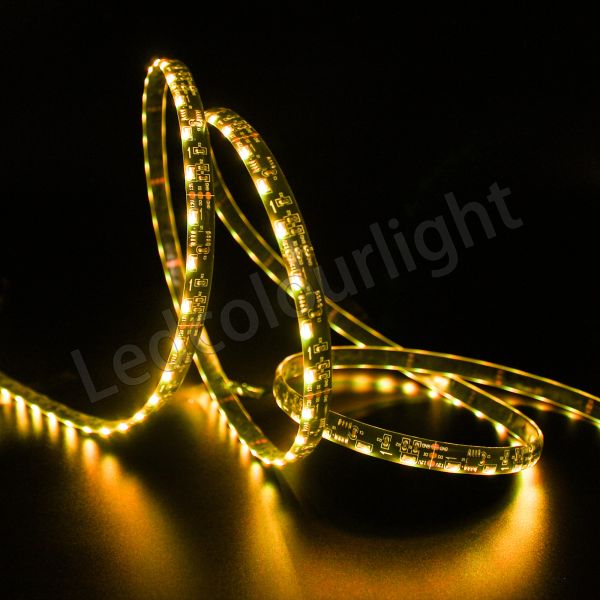

IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light

WS2811 control | RGB full color | 60 LEDs/M | 20 Pixels/M | DC12V | IP65

IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light

Production Specification

• Side-emitting 020 LED design, providing soft and uniform ambient lighting

• 60 LEDs/20 programmable pixels per meter, using WS2811 chip for independent single-point control

• 10mm wide PCB, optional black/white circuit board base

• Cuttable every 50mm, flexible roll length: standard 5m, custom 1m / 2m rolls supported

• DC12V safe low voltage input, low power consumption & long service lifespan

• IP65 drip glue + sleeve waterproof grade, dustproof and splash-proof

• Pre-installed 3M strong adhesive backing, no extra brackets required for quick mounting

• Ultra-flexible strip body, easy to bend around corners and irregular outlines

• Full RGB color adjustable, compatible with common WS2811 signal controllers

Model
LCL-WS2811-RGB-Side-emitting
Size
5000*10mm
LED Light Source
SMD RGB 020
LED QTY
60 PCS/M
LED Pixels
20 Pixels/M
Emitting
Side emitting
Power
14.4 W/M
Input Voltage
DC12V
Control
WS2811
Address Setting
Auto Address
Operating Temperature
-20-50ºC
Storage Temperature
-40-80°c
IP
IP65

- White / Black PCB.

IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light

- RGB full color.

IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light

IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light

- Front illumination version.

IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light

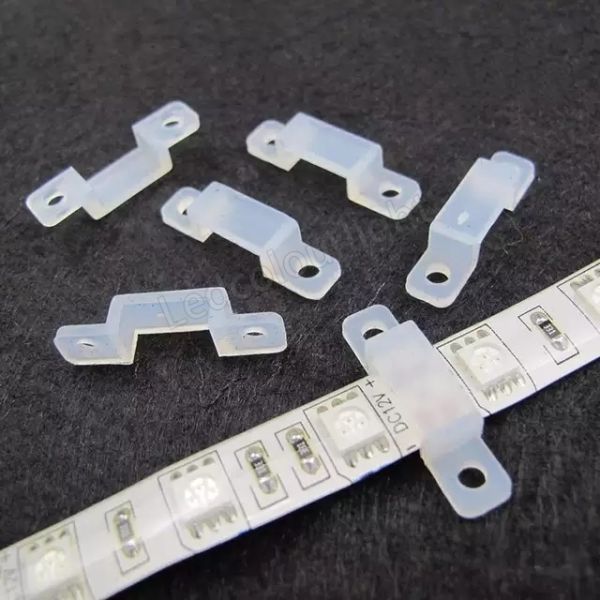

- Extra accessory to fix it well.

Silicone brackets are helpful to fix the LED strip lights, and can be easily taken down from the other end when replacing.

IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip LightIP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light

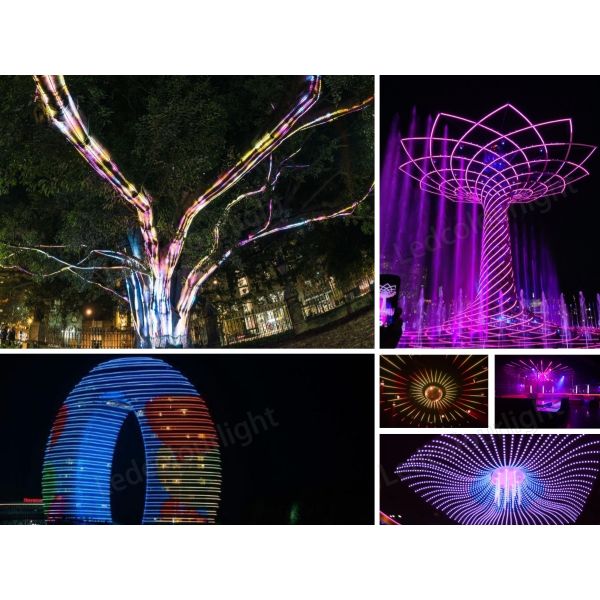

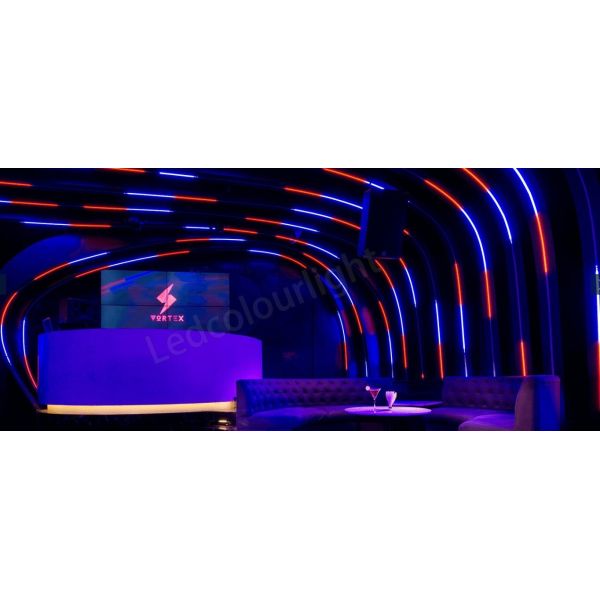

Application

Indoor atmosphere decoration: cabinet lighting, wine cabinet, TV background wall, ceiling cove, stair handrail, showcase display
Commercial project decoration: mall window display, hotel lobby, KTV, bar, café, amusement park
Event & stage props: wedding backdrop, live show, party decorative lighting
Mild outdoor usage: park outline, courtyard landscape, building edge lighting (avoid long-term soaking)

IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light

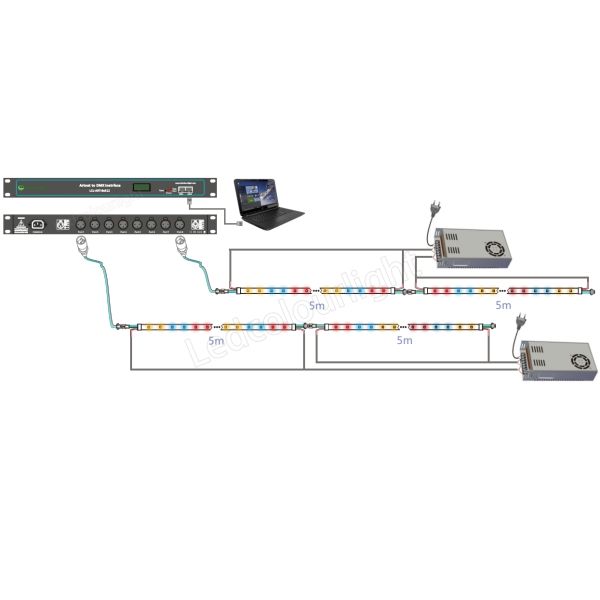

Connection Diagram

IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light

Package

IP65 Waterproof Addressable DC12V WS2811 Side Emitting RGB LED Strip Light

FAQ

1. Q: Are you a factory or a trading company?
A: We are a factory as a manufacturer.

2. Q: How can I get some samples? Delivery time for samples?
A: If samples are in stock, they can be sent out right away. If no samples are in stock, take 1-3 business days for production.
3. Q: MOQ?
A: At least 2 pieces per model.

4. Q: OEM and ODM available?
A: Yes.

5. Q: Can this side-emitting strip be cut?
A: Yes. The strip can be safely cut every 50mm along the marked cutting line; each segment works independently after cutting. We can provide matching connectors for reconnection.

6. Q: What’s the difference between the black PCB and the white PCB version?
A: White PCB reflects more light for brighter output, perfect for bright decorative scenes; black PCB reduces light reflection to create deeper, richer color effects, widely used for dark background atmosphere lighting.

7. Q: Warranty?
A: All products we sell are of good quality and have been tested before they are shipped out. We offer a 2-year Warranty.

8. Q: What if I have never bought any product from China?
A: We will guide you step by step; any potential costs will be listed, and we will provide all the information if needed.
