IP66 Outdoor 35mm 3D Diamond LED String Light with DMX512 RGB Pixel Control

360-degree Lighting | Customized Spacing | IP66 waterproof

Product Highlights:

• 3D Diamond Design: Unique PC diamond housing provides multi-angled refraction and a premium visual texture.

• 360° Full Coverage: 6 high-brightness SMD5050 LEDs per node (3 on each side) eliminate blind spots.

• High Protection Rating: Rated IP66, suitable for heavy rain, dust, and outdoor environments.

• Dual Control Protocols: Supports DMX512 (standard addressable) and SPI (TTL/IC) for dynamic color chasing and pixel mapping.

• Low Voltage & Energy Efficient: Operates on DC24V (1.44W/node) with ultra-low voltage drop over long distances.

• Flexible Customization: Center-to-center spacing available in 10cm, 20cm, 30cm, or fully custom; string length made-to-order.

• Robust Wiring Options:

〉Signal input only (T-type hanging).

〉Input + Output daisy-chain connection (Direct serial connection).

Product Parameters:

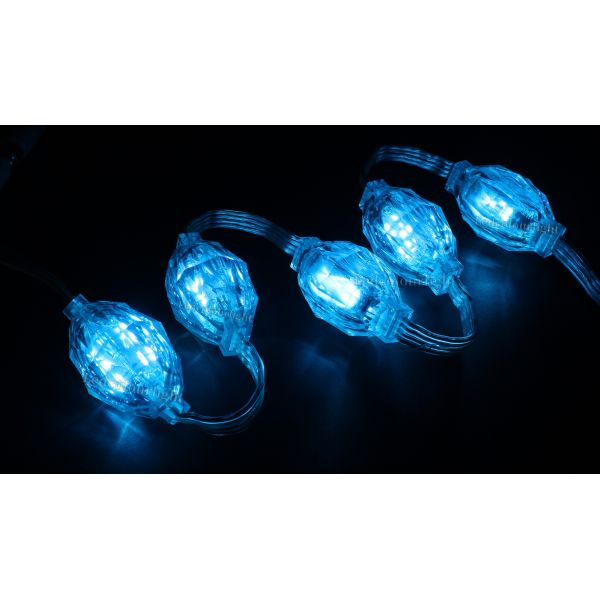

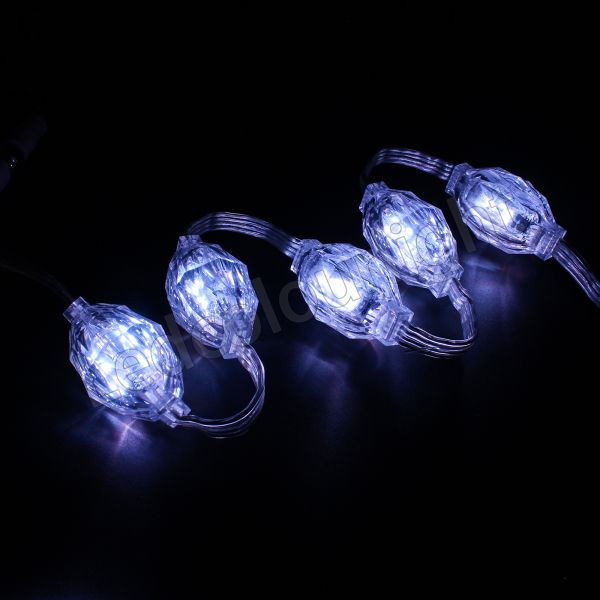

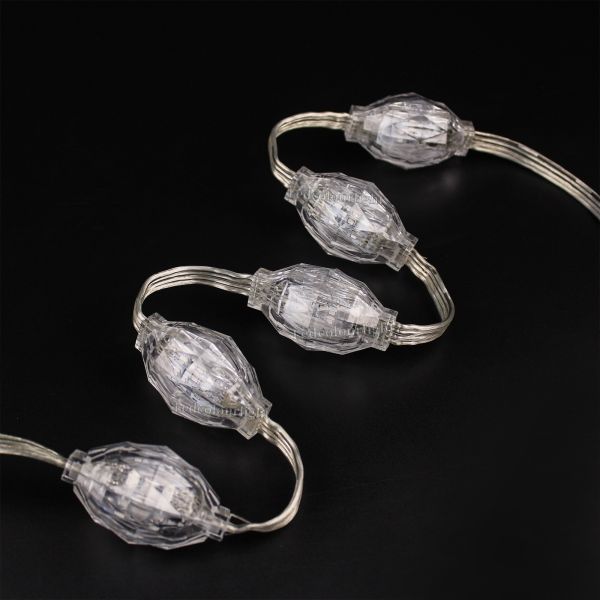

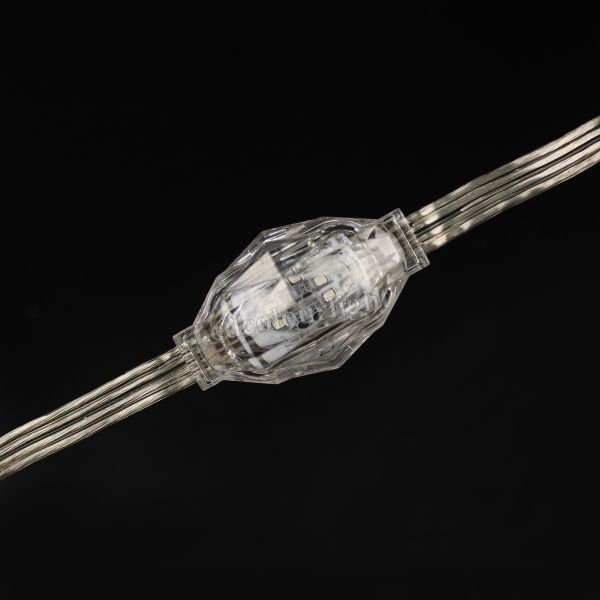

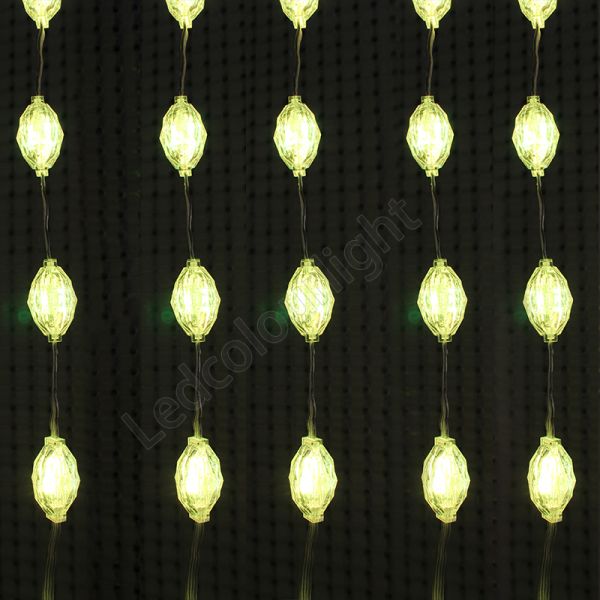

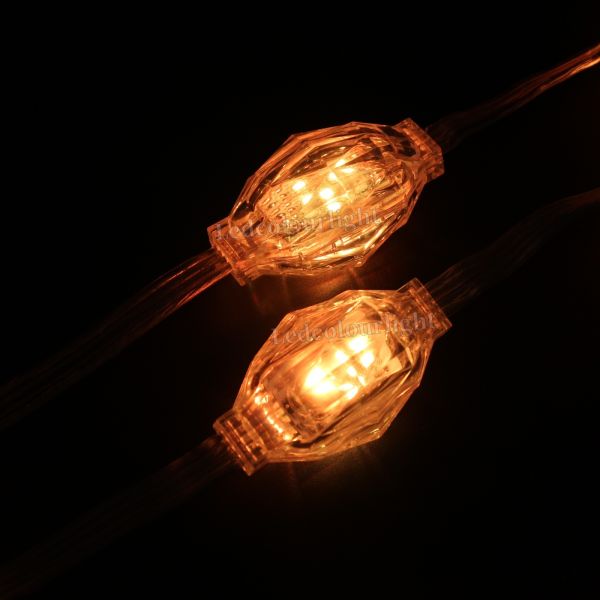

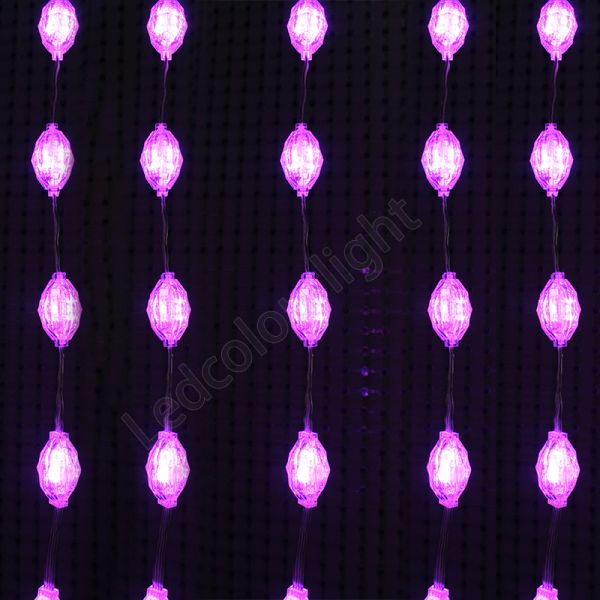

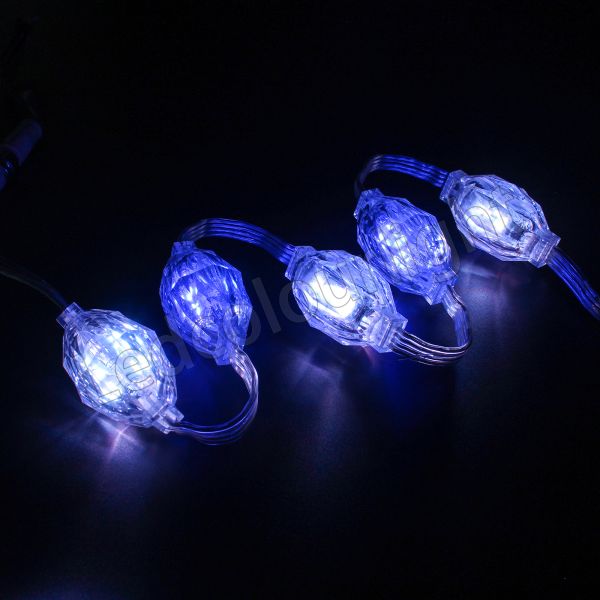

Product Photos:

Illuminate your creative projects with Ledcolourlight 3D Diamond LED String Lights. Featuring a premium PC diamond-shaped shell, each unit creates a sparkling, jewel-like effect. Equipped with 6x SMD3535 LEDs (3 per side), the fixture delivers 360-degree uniform illumination. Driven by DC24V low voltage and compatible with DMX512 or SPI protocols, these lights are designed for large-scale, long-distance outdoor lighting installations. With customizable center spacing (10cm/20cm/30cm) and string length, this system offers unparalleled flexibility for facade mapping, festivals, and commercial displays.

Customizable center-to-center distance (standard 10-20cm)

Control & Wiring:

Control Protocols:

➢ DMX512: Individual or group addressing for professional stage/architectural control (e.g., Madrix, Jinx, Resolume).

➢ SPI (TTL): Chasing, breathing, and gradient effects (Compatible with K-1000, SP107E, Arduino, WLED).

Wiring Diagram:

➢ Option A (Input Only): Signal travels one-way. Requires a T-type cable for hanging.

➢ Option B (Input + Output): Built-in pass-through allows direct male-to-female serial connection between nodes without a T-type connector (longer daisy chains).

Electrical Specs per Node:

➢ Voltage: DC24V

➢ Power: 1.44W

Packaging & Shipping:

Packaging: Anti-static bag + export carton.

Carton Size: Custom-based on string length (typically 51*47*35 cm for 21 rolls of 20 nodes)

Shipping Port: Shenzhen.

Applications:

➣ Architectural Outlines: Hotels, shopping malls, and office building facades.

➣ Entertainment Venues: Concert stages, nightclub interiors, and theme parks.

➣ Holiday Decorations: Christmas trees, city streets, and winter festivals.

➣ Landscape Lighting: Bridges, garden paths, and park pavilions.

➣ Commercial Signs: Logo walls and dynamic 3D signage.

Certifications:

Our LED pixel string lights deliver reliable, vibrant, and customizable performance – all backed by CE & ROHS certification.

FAQ:

Q1: Can I customize the spacing between lights and the total string length?

A1: Yes! We offer standard 10cm and 20cm spacing, as well as fully custom spacing. Standard string lengths include 1m, 5m, and 10m; custom lengths are available upon request.

Q2: What control protocols are supported?

A2: The lights have DMX512 (for large-scale, synchronized installations) and SPI (for fast-response, dynamic effects) as the two main control protocols.

Q3: Is the string suitable for outdoor use?

A3: Yes, the lights are fully potted with an IP67 waterproof rating, making them suitable for outdoor use in rain and humid environments.

Q4: Do you offer OEM and custom project services?

A4: Yes. We provide customized production, including module spacing, cable lengths, connectors, packaging, and private branding.

Q5: What are the delivery time and payment terms for ordering these RGB String Lights?

A5: The delivery time is typically 12 to 15 working days. Payment terms accepted include T/T and PayPal.
