CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
Specifications
Brand Name :
XUANCAI
Model Number :
XC-TN36W19*19/17 led cob chip
Certification :
CE ROHS LM-80
Place of Origin :
China
MOQ :
100
Price :
$2.2- $ 3.2
Payment Terms :
T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability :
10000M / Month
Delivery Time :
3-5 days
Packaging Details :
Blister box packaging
Product Name :
XC-TN36W19*19/17 led cob chip
Watt :
36w
Current :
900mA
Voltage :
36-39v
CRI :
90
Lumens :
110-120lm/W
Color temperature :
2700-6000k
Warranty :
3 years
Certificate :
CE ROHS LM-80
Description

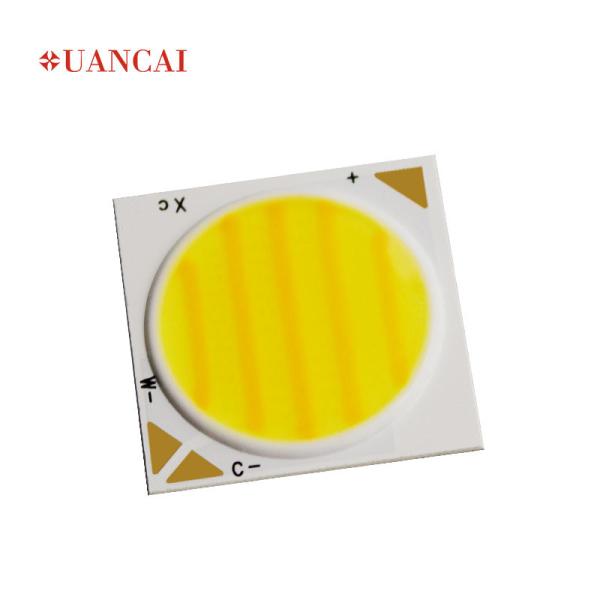

CLU038 Same Size High Power 36W+36W CSP Changing Color LED COB Chip for Downlight/ Ceiling Light

Specification

Product Name XC-TN19*19/17 Dimmable led cob chip
Power 36w
Current 900mA
Voltage 36-39v
CRI 80
Color Temperature 2700-6000k
Lumens 110-120lm/W

Product Description

◆Mechanical Dimensions: 19.0x19.0x1.7(mm)

◆Package Structure:Aluminium Base Chip on Board

◆CRI(Ra):Min.90

◆Nominal CCT:2,700K,6,000K

◆Chromaticity Range: 3-step MacAdam Ellipse

◆RoHS compliant

◆Better die arrangement for optics

◆Wide range of luminous fluxand high efficacy

Electro Optical Characteristics

Product Code

Nominal CCT

 CRI(Ra) Luminous Flux(lm) Efficacy ( lm/W )

Forward

Current

(mA)

Voltage

(V)
Ra R9
Min. Min. Min. Typ. Typ. Min. Typ. Max.
XCT1917-M1209-A27/6090-D31 2700K 90 50 2430 2500 110-115 600 36 36.5 37
6000K 90 50 2650 2700 120-125 600 36 36.5 37

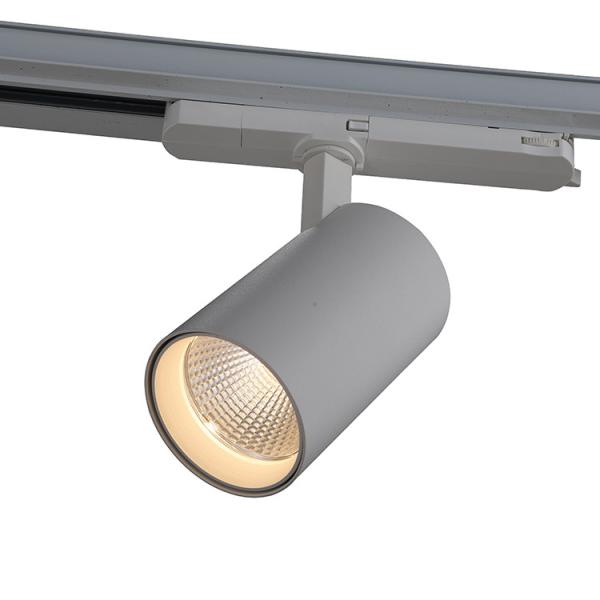

Applications

CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light

CLU038 36W CSP Dimmable LED Chip For Downlight Ceiling Light
