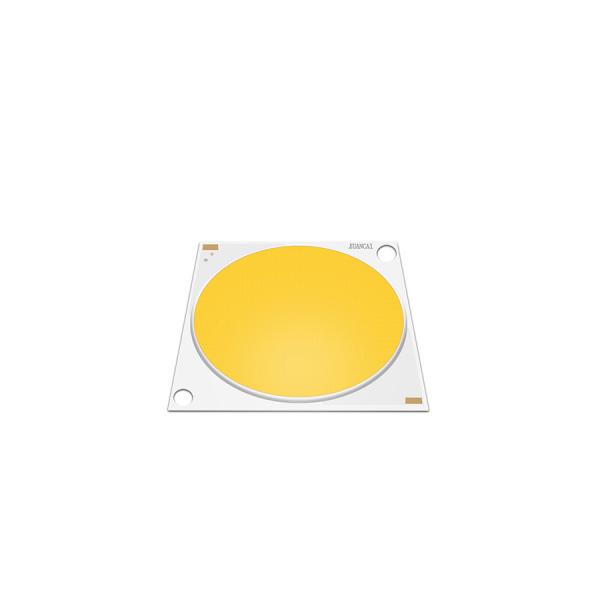

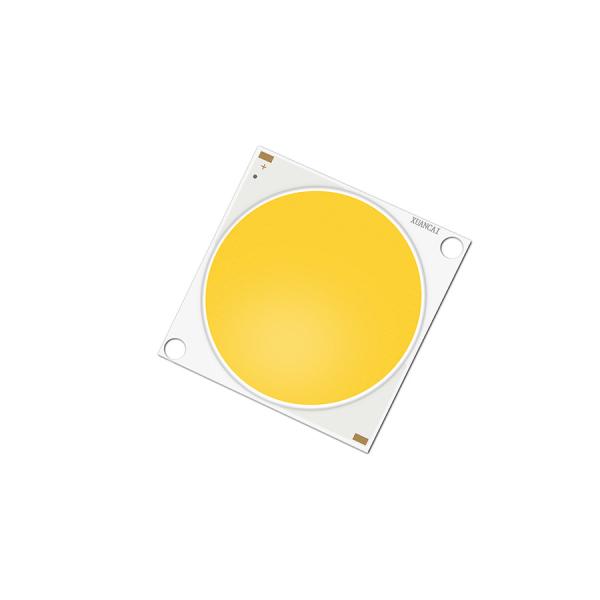

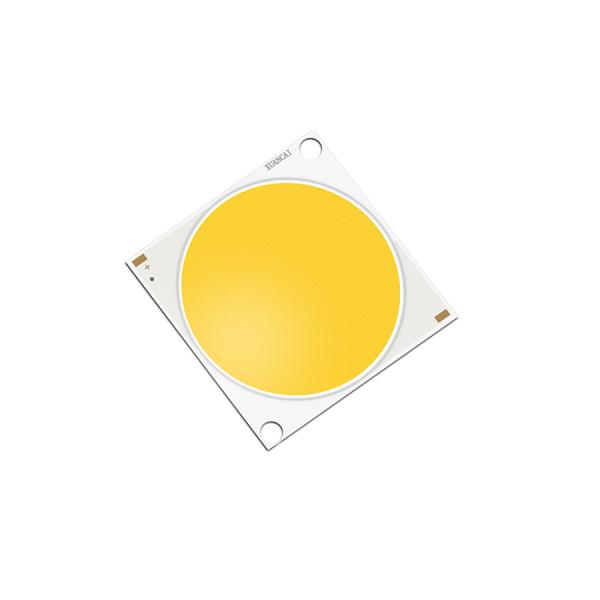

Citizen Clu058 High Lumen LED Chip
Citizen Clu058 High Lumen LED Chip
Citizen Clu058 High Lumen LED Chip
Citizen Clu058 High Lumen LED Chip
Citizen Clu058 High Lumen LED Chip
Citizen Clu058 High Lumen LED Chip
Citizen Clu058 High Lumen LED Chip
Citizen Clu058 High Lumen LED Chip
Specifications
Brand Name :
XUANCAI
Model Number :
XL-38*38/35MM LED COB CHIP
Certification :
CE ROHS LM-80
Place of Origin :
China
MOQ :
10
Price :
$10-$ 20/ PCS
Payment Terms :
T/T, Western Union, Paypal , Alibaba trade assurance
Supply Ability :
100000PCS / Month
Delivery Time :
3-5 days
Packaging Details :
Blister box packaging
Product Name :
XL-38*38/35MM LED COB CHIP
Size :
38*38/35MM
Power :
100W
Current :
1800mA
Voltage :
58-62V
Color :
White/ Red/ Blue/ Green/ Yellow/ Purple
CRI :
80
Chip Brand :
Bridgelux Chip
Certificate :
CE ROHS LM-80
Application :
Train Light/ Drone Light
Warranty :
3 Years
Spanlife :
50,000 Hours
Description

High Lumens Efficacy 160-170LM/W Citizen Clu058 Size 100W 150W 3000K LED COB Chip Module For Train Light/ Drone Light

Features:

1. Using standrad CRI index to design color points of light

2. Using thermoelectric separation of substrate. The heat dissipating performance is good. Thermal resistance<2.5

3. Small size of the COB to achieve high power efficacy. Easy to use for customers.

4. The reliability is further improved, and double lumens output 160-170LM/W can be achieve more than the same size.

Product Description

Product Information
Size
 XL-38*38/35MM
Product name
100W LED COB CHIP
Power
 100W
Voltage
 58-64V
Current
1800mA
Chip Brand
US Bridgelux
CRI

80
Luminous efficiency
160-170LM/W

Features

◆ Mechanical Dimensions : 38*38*1.7(mm)

◆ Package Structure : Mirror Aluminium Base Chip on Board

◆ CRI(Ra) :Min.80,Min90, Min95

◆ Nominal CCT :2000K, 2700K, 3000K, 3500K, 4000K, 5000K, 6000K, 6500K, 7000K

◆ Chromaticity Range : 3-step MacAdam Ellipse/ 2-step MacAdam Ellipse/ 1-step MacAdam Ellipse

◆ RoHS compliant

◆ Better die arrangement for optics

◆ Wide range of luminous fluxand high efficacy

Dimensions

Citizen Clu058 High Lumen LED Chip

Electro Optical Characteristics

Product Code Nominal CCT CRI(Ra) Luminous Flux(lm) Efficacy ( lm/W ) Forward Voltage
Ra R9 Current (V)
Min. Min. Min. Typ. Typ. (mA) Min. Typ. Max.
38*38/35MM 2700K 80 0 14380 15137 140 1800 58 60 62
38*38/35MM 3000K 80 0 14980 15768 146 1800 58 60 62
38*38/35MM 3500K 80 0 15429 16241 150 1800 58 60 62
38*38/35MM 4000K 80 0 15579 16399 152 1800 58 60 62
38*38/35MM 5000K 80 0 15279 16083 149 1800 58 60 62
Absolute Maximum Ratings
Parameter Symbol Rating
Forward Current IF 2880mA
Reverse Current IR 1mA
Operating Temperature TOPR -30℃ To +75℃
Storage Temperature Tst -30℃ To +75℃
Case Temperature Tc 85℃
Junction Temperature TJ 125℃
Soldering Temperature TSOL 350℃± 10℃ For 5 Seconds
ESD Sensitivity ESD 2000V HBM

Reliability Test

No. Test Item Test Condition Test Cycle
1

Continuous Operation Test

Tc=85℃

IF=1800mA

 1000H
2

Low/High Temperature Storage Test

-40℃/30min~

+100℃/30min

 100 Cycles
3

High Temperature Storage Test

 Ta=100℃ 1000H
4

Low Temperature Storage Test

 Ta=-40℃ 1000H

Application

Citizen Clu058 High Lumen LED ChipCitizen Clu058 High Lumen LED Chip

Citizen Clu058 High Lumen LED Chip

Customers feedback

1. These are much better when used as under cabinet lighting than the standard chip style. Especially with reflective countertops. It's much more uniform and clean looking in the reflection. I install many strips through my electrical business. These were very great.

2. My customer is so happy with this lighting. The leds are bright and dimmable and a great white shade., not blue or amber. Most importantly they are a solid light, no dots. Looks very high end. This is the only led strip lighting I will install from now on.

3. I have used a ton of other products from skye and this is by far my favorite. It looks awesome without all the individual diodes. I used a 24v transformer and made sure the wattage was rated higher that the 3w per ft I planned to use. These bend much tighter and are more flexible than other brands if used as well. I combine these with aluminum channels I buy from amazon to make them look like a fixture, including inside and outside corners.
Awesome light

4. These lights are excellent! Very well made and stick very well. The look behind my tv is freaking awesome! I cant tell you how much better my living room looks now! Definitely a great choice, will buy more!

5. I normally don't write reports but I was surprised for good about this product. Unbelieved brightness. Consider using a dimmer to control the bright. For sure I will buy a few more for my home project.
