20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside
20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside
20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside
20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside
20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside
20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside
Specifications
Brand Name :
superolux
Model Number :
SP-MLGO-280
Certification :
ce,rosh,saa
Place of Origin :
China
MOQ :
1
Price :
50000pcs/week
Supply Ability :
50000pcs/week
Packaging Details :
white box
Product Name :
outdoor light fixture
Power :
20w
LED Brand :
Epistar
Luminous Flux :
1600lm
Voltage :
85-265VAC
IP rate :
IP 65
IK rate :
IK 10
Description

2

20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside

Product Description : the LED bunker light /bulkhead wall light is an series of production

d designed with Die cast Alumininum housing ,ip65 rate ,ik10 impact resistance , suitable for all

kinds of outside applications is an ideal choose for outdoor lighting projects

LED bunker light paramters :

c

1. 1.Electricity Parameters:

NO Items Parameters
1 Input Voltage 90-265V 42-63HZ
2 Input Current 0.114A(230V)
3 Power 20W
4 Output Voltage 30V
5 Output Current 0.67A
6 Power Factor >0.9PF
7 Luminous Efficiency ≥85%

4.

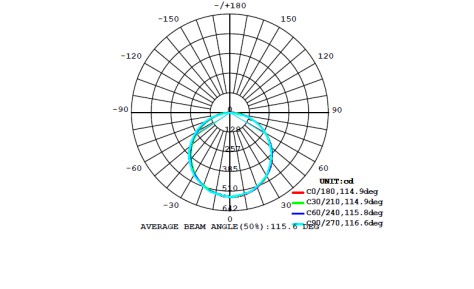

2,Optical Parameters:

NO Items Parameters
1 Beam angel (H,V) 115°
2 Peak Light Intensity 514cd
3 Luminous Flux 1600Lm
4 Color Rendering Index ≥70Ra
5 Color Temperature 2800-3200k /4000-4500k/5500-6000k

4.

3,Physical Parameters:

NO Items Parameters
1 Working temperature -40°— 60°
2 IP range IP65
3 N.W 900g
4 Length 280mm
5 Width 180mm
6 Height 83mm



20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside

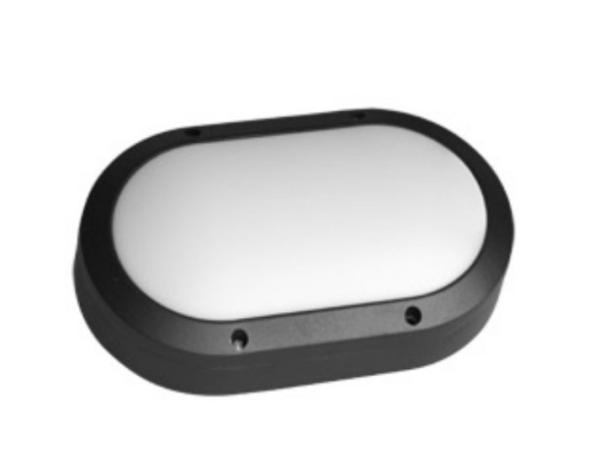

LED Bunker light Picture :

20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside

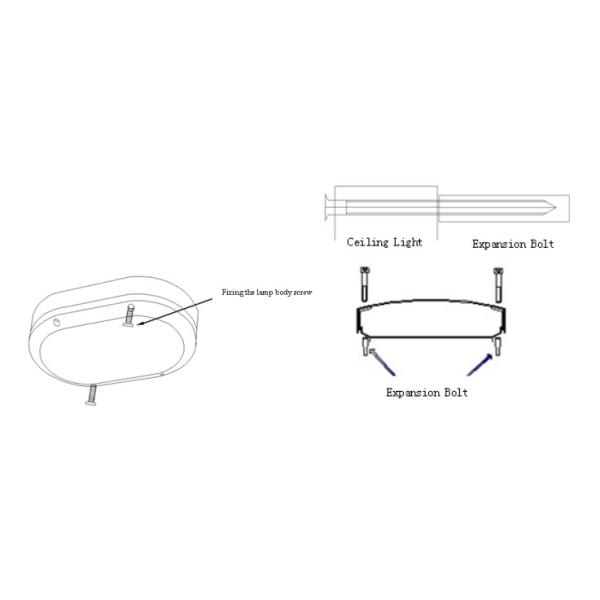

Installation instructions :

1,remove two screw to fix the lamp on the wall, take another 2 screw to fix the

lamp base and lamp cover.

2,Installation methods : with the tapping screws installed two holes of base to specified

location( two holes are on the diagonal of base )

.

3,before fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer the expansion

bolt into the wall , Screw through the screw hole of lamp body , screw in the expansion bolt .

20 W Black Housing Bulkhead Wall Light / 1600lm Led Bunker Light Outside

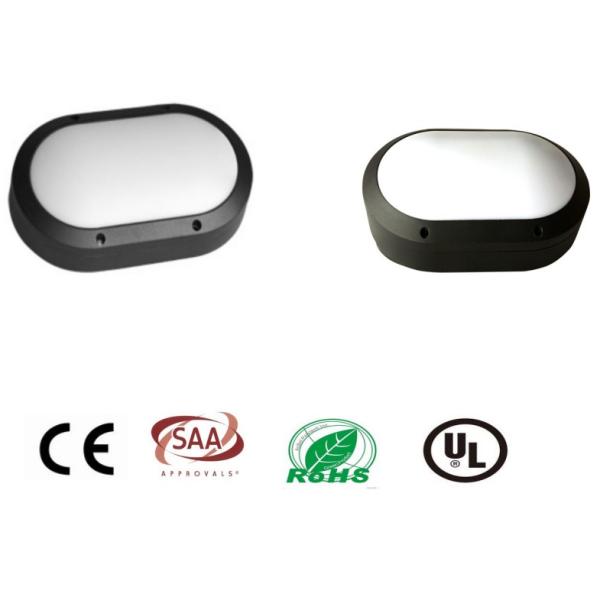

LED Bunker light competitive advantages :

1.2. IP65 waterproof, dustproof for indoor and outdoor lighting

2. Die-casting aluminum lamp body, excellent heat dissipation, UV resistance .corrosion

resistance , can be widely use in the moisture area ,like seasides .bathroom


3. frosted white PC cover.


4. Stainless steel hexagon socket head cap screws


5. Can built-in motion sensor, Emergency time 1-3 hours


6. Black / white / grey aluminum housing color available

7. long working life , up to 50000hours

About Us:

Superolux is engaged in producing all kinds of indoor and outdoor LED lighting products

epscially for the Outdoor /iindoor LED Ceiling light

1.with Stong R& D team ,every year , we design 10% new production every year . in each year ,

we spent 20% turn overs for production designing ,researching , in order to make professional

production for clients , we cooperated with professional test lab such as TUV ,SGS .etc .

2 .with professional sales team , the annual sales increased 10%-15% each year .

3. with reliable after sales team , all issue about after sales has been handle in first time .

Thanks for reviewing informations of the IP65 led ceiling light .

Inquires will be reponse in 2 hours after sending , looking forwade for your inquires

Contact us :

info@superolux.com

whatsapp:13670232205

Mobile :18292019692

More about us , please check on : www.ledbulkheadlight.com
