Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness
Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness
Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness
Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness
Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness
Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness
Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness
Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness
Specifications
Brand Name :
OEM or superolux
Model Number :
SP-MLG220
Certification :
CE,RoHs,SAA
Place of Origin :
China
MOQ :
1
Price :
neogotiable
Payment Terms :
L/C, T/T, Western Union, D/A
Supply Ability :
50000pcs/week
Packaging Details :
white package
Product name :
Bulkhead wall light
Mount method :
wall mounted surface mounted
Power :
10W
Luminous Flux :
800lumen
IP Rate :
IP65
Voltage :
85-265V
Size :
220*135*65
Description

Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness

Description for Bulkhead wall light

The bulkhead wall light the main production in superolux lighting's production line , with designing

of IP65 . the series production can be widely used both indoor and outdoor . such as bathroom ,

steam room , villas near the sea etc ..

Competitive advantages for the bulkhead wall light

1. can be widely used in different applications for indoor and outdoor .

2. can be directly used in moisture enviroment such like bathroom ,spa ,kitchen ..etc.

3. unque apperances , round ,square ,oval shapes are aviable

4. beautiful apperances , white ,grey ,black finhsing colour ,powder painting or oil painting .

4. 3 years warranty are provided , after sales services are provided after selling

5 , easy to be installed ,surface mounted directly

4.

1 Electricity Parameters:

NO Items Parameters
1 Input Voltage 90-265VAC 47-63HZ
2 Input Current 0.058A(230V)
3 Power 10W
4 Output Voltage 30V
5 Output Current 0.34A
6 Power Factor >0.9
7 Luminous Efficiency ≥85%

4.

,2. Optical Parameters:

NO Items Parameters
1 Beam angel (H,V) 115°
2 Peak Light Intensity 247cd
3 Luminous Flux 800Lm
4 Color Rendering Index ≥70Ra
5 Color Temperature 2800-3200k /4000-4500k/5500-6000k

4.

,3. Physical Parameters:

NO Items Parameters
1 Working temperature -40°— 60°
2 IP range IP65
3 N.W 445g
4 Length 220mm
5 Width 135mm
6 Height 65mm

5,P

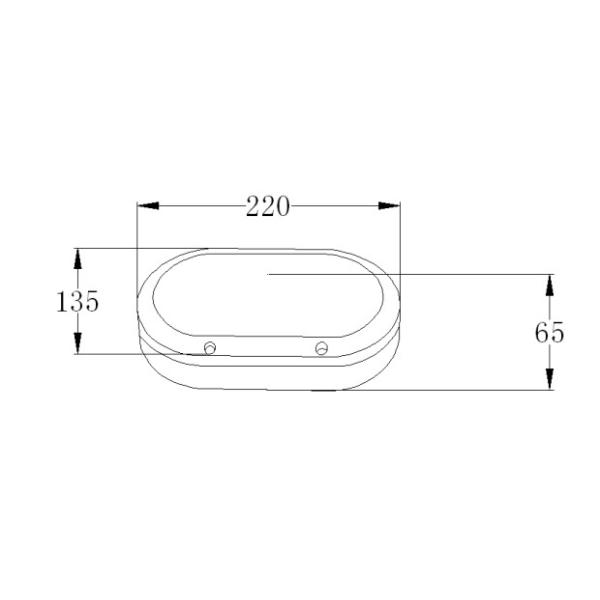

Product drawing

Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness

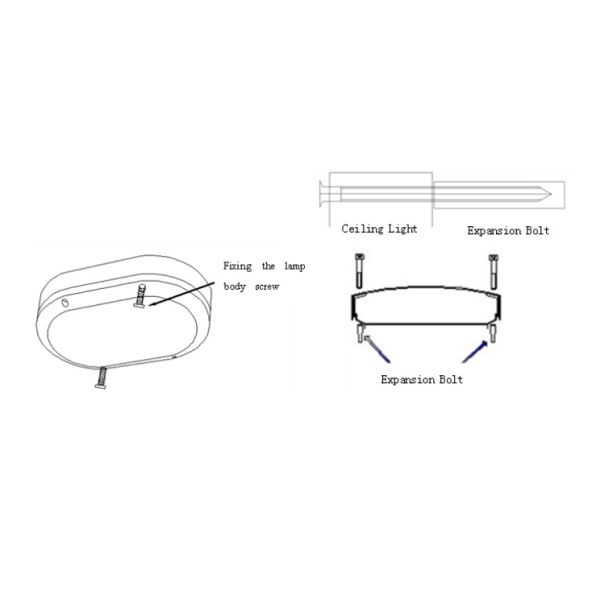

installation instructions

i

1,Take 2pcs 5*80mm screw to fix the lamp to the wall, take 2pcs 4*12mm screw to fix the

lamp base and lamp cover.

.2,Installation methods : with the tapping screws installed two holes of base to specified

location( two holes are on the diagonal of base )

.

3,when fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion

bolt. Screw through the screw hole of lamp body , screw in the expansion bolt . installation over .

see the picture :

Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness

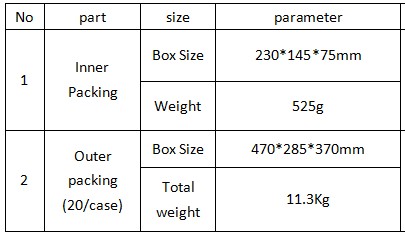

Package informations :

Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness

Applications :

LED Bulkhead Light can widely used for different applications

1.Public Application -Air ports ,car park ,railway stations

2. Residential Lighting -Villa ,garden ,pool areas

3,Retail lighting -walkways, loading docks,and storage areas .

FAQ: can we print the customer's logo on the carton ?

1. Can we offer customized package with customers logo and company name

the inner package also can offer the colour package based on the desining

2. How about MOQ?

The MOQ is 1pcs

3. How fast the production can be delivery ?

it depends on the QTY , usually we need 2 to 3 weeks for the production


Installtion and maintaince :

Wall pack and wall mounted

low cost maintance

Factory Tour :Wall Mounted Oval IP65 White Bulkhead Outdoor Light 10w 800 Lumen High Brightness
