10W 800 Lumen IK10 IP65 White Ceiling Lights , Outdoor Wall Lighting 85-265VAC
10W 800 Lumen IK10 IP65 White Ceiling Lights , Outdoor Wall Lighting 85-265VAC
Specifications
Brand Name :
Superolux
Model Number :
SP-MLG145
Certification :
CE,RoHs,SAA
Place of Origin :
China
MOQ :
1
Price :
neogotiable
Supply Ability :
5000pcs/week
Packaging Details :
white package
Product name :
outdoor LED ceiling light
Voltage :
85-265VAC
Power :
10W
CCT :
6000K
IP rate :
IP65
IK rate :
IK10
Luminous Flux :
800lumen
Warranty :
3 years warranty
Description

10W 800 lumen IK10 IP65 white ceiling lights , outdoor wall lighting

Description :

The outdoor LED ceiling light is a series with IP65 waterproofing designing , the series is the

main production for superolux lighting , range from 10w-30w ,with various fininshing colour ,white

grey ,black, Die cast Aluminium housing ,suitable for both indoor and outdoor lighting , the

outdoor ceiling light is an ideal choice for villa ,bathroom ,spa ,car park ,etc ...

Features of Led bulkhead light:

1. impact resisitace with IK 10 Rate

2. energy saving .best replacement for tradtional bulkhead of holgen type .

3. long life span , low manitance cost , replacement parts can be exchange directly

4. Instant starting, no noise or flickering.

5. IP65 rating , can be used in moisture enviroment . Suitable for both indoor and outdoor

Specfications :.

1. Power : 10W /15W/20W/30W

2. input votage : 85-285VAC

3. Lumen effiency : 80 Lm/ Watt

4. IP Rate : IP65

5. Warranty : 3 Years

4.

Electricity Parameters:

NO Items Parameters
1 Input Voltage 90-265VAC 47-63HZ
2 Input Current 0.058A(230V)
3 Power 10W
4 Output Voltage 30V
5 Output Current 0.34A
6 Power Factor >0.9
7 Luminous Efficiency ≥85%

4.

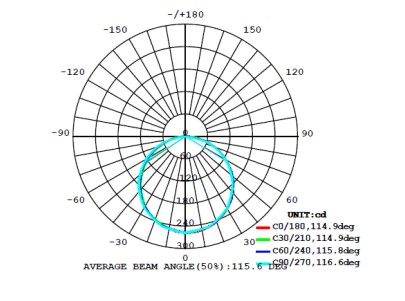

2 Optical Parameters:

NO Items Parameters
1 Beam angel (H,V) 115°
2 Peak Light Intensity 247cd
3 Luminous Flux 800Lm
4 Color Rendering Index ≥70Ra
5 Color Temperature 2800-3200k /4000-4500k/5500-6000k

4

Physical Parameters:

NO Items Parameters
1 Working temperature -40°— 60°
2 IP range IP65
3 N.W 330g
4 Length 145mm
5 Width 145mm
6 Height 65mm

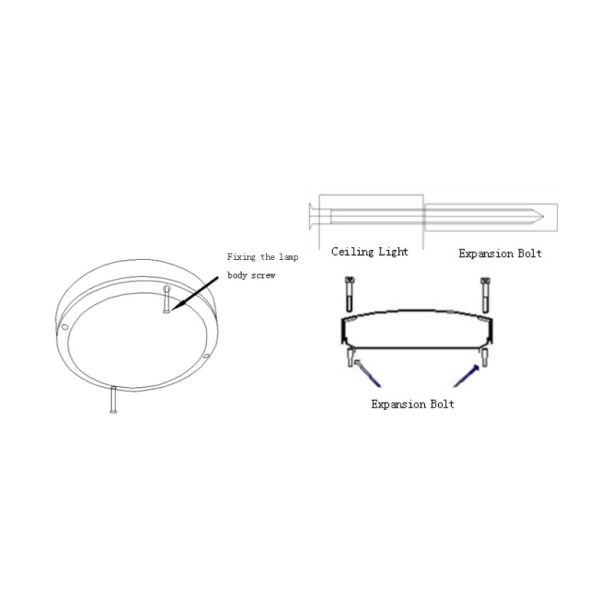

7. Att 1,Take 2pcs 5*80mm screw to fix the lamp to the wall, take 2pcs 4*12mm screw to fix the lamp

base and .

2,Installation methods : with the tapping screws installed two holes of base to specified

location( two holes are on the diagonal of base ).

3,when fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion

bolt. Screw through the screw hole of lamp body , screw in the expansion bolt . installation over .

see the picture :

10W 800 Lumen IK10 IP65 White Ceiling Lights , Outdoor Wall Lighting 85-265VAC

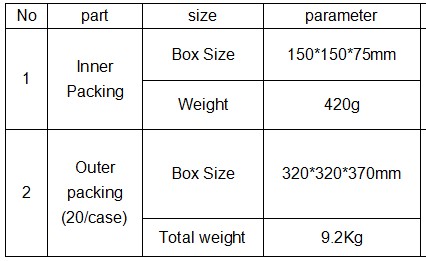

Package informations

10W 800 Lumen IK10 IP65 White Ceiling Lights , Outdoor Wall Lighting 85-265VAC

10W 800 Lumen IK10 IP65 White Ceiling Lights , Outdoor Wall Lighting 85-265VAC

Applications

ceiling mounted or wall mounted ,easy to be installed

suitable for schools and hospitals, , kitchen , bedroom ,shower room ,spas ,bathroom ,

commercial bulidings parks

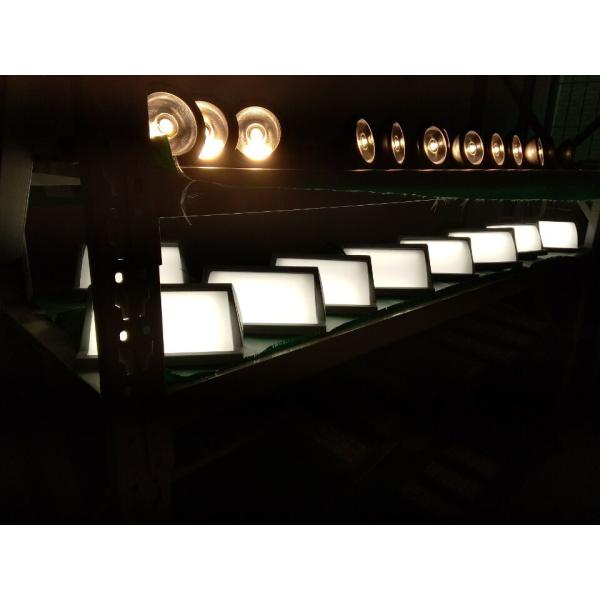

Aging test :

10W 800 Lumen IK10 IP65 White Ceiling Lights , Outdoor Wall Lighting 85-265VAC

10W 800 Lumen IK10 IP65 White Ceiling Lights , Outdoor Wall Lighting 85-265VAC

Contact us :

info@superolux.com

whatsapp:13670232205

Mobile :18292019692

More about us , please check on : www.ledbulkheadlight.com
