Aluminium Housing Ip65 Bulkhead Light Outdoor LED Ceiling Light PF>0.95
Aluminium Housing Ip65 Bulkhead Light Outdoor LED Ceiling Light PF>0.95
Aluminium Housing Ip65 Bulkhead Light Outdoor LED Ceiling Light PF>0.95
Aluminium Housing Ip65 Bulkhead Light Outdoor LED Ceiling Light PF>0.95
Specifications
Brand Name :
Superolux
Model Number :
SP-MLGR20W
Certification :
CE,RoHS,SAA
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000pcs/week
Packaging Details :
OEM package/standard export package
Product name :
Bulkhead wall light
Size :
300*300*90mm
Voltage :
85-265VAC
IP rate :
IP65
IK rate :
IK09
Power :
20W
Luminous Flux :
1600lm
Description

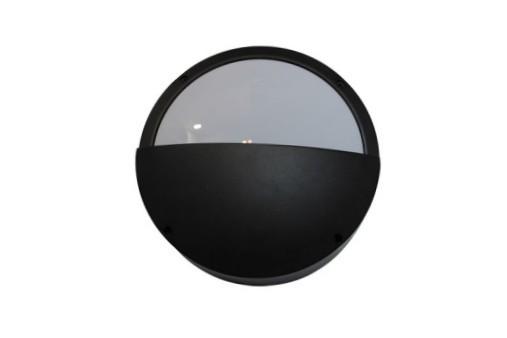

Bulkhead wall light 20W Aluminium housing half covered IP65 outdoor LED ceiling light PF>0.95
Descritpion : LED bulkhead light is designed with IP65 rated LED outdoor wall luminaries
providing lighting solutions both indoor and outdoor for gardens ,pool area .villas ,bathroom.etc
the bulkhead light is designed the shine through mist ,fog and other wet weather conditions
making led bulkhead light an ideal solutions for outdoor applicaitons .
Bulkhead wall light specification
Model SP-MLGR20W-A
Input Voltage AC100-277VAC 50/60Hz
Dimension 300*300*90mm
Lighting Source Epistar/Cree/Samsung
Power Consumption 20W
Color Temperature WW(2800~3000K) NW(4000~4500K) CW(6000~6500K)
Luminosity ≥1500 ≥1550lm >1600lm
CRI(Ra) >80
Material Die Cast Aluminium housing
Work Temperature -25℃～+45℃
Cover Material PC
GW 1.2KG
NW 1.0KG
IK rate IK09
Lifespan (LED) ≥50,000hrs (950% Lumen Maintenance)
IP Rating IP65
Lumen Attenuation <5% @ 5,000hrs
Power Factor >0.95


Product Features :

1. die cast alumium body , impact resistance ,IK10 rate .

2, Milky PC cover provided make sure the lights with smooth light ouput .

3. IP65 rating , rubber ring connect the alumium base and PC cover tightly .

4. Powder painting and oil painting are both aviable for the products .

5. warm white , netural white ,cool white are both aviable

7. to work easily . the MOQ is only 1 pcs only .

8. payment terms : Paypal .T/T western union L/C

9. 10w ,15w ,20W ,30W are provided

10. fast delivery , one week to 10 working days

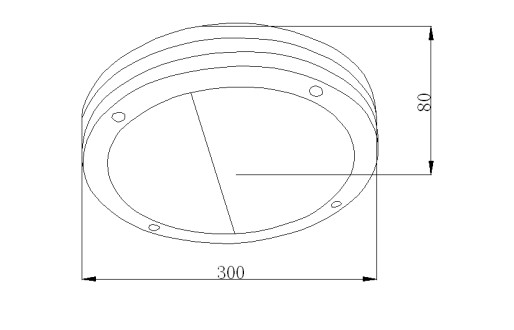

Product drawing :

Aluminium Housing Ip65 Bulkhead Light Outdoor LED Ceiling Light PF>0.95

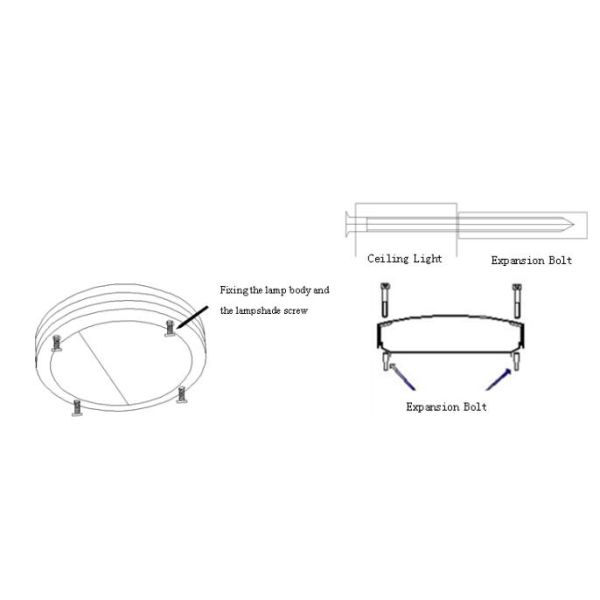

Installation instructions :

1,Take 4pcs 5*40mm screw to fix the lamp to the wall, take 4pcs 5*40mm screw to fix the lamp base and lamp cover.

.2,Installation methods : with the tapping screws installed two holes of base to specified location( two holes are on the diagonal of base ).

3,when fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion bolt. Screw through the screw hole of lamp body , screw in the expansion bolt . installation over . see the picture :

Aluminium Housing Ip65 Bulkhead Light Outdoor LED Ceiling Light PF>0.95

Aluminium Housing Ip65 Bulkhead Light Outdoor LED Ceiling Light PF>0.95

Light distribute Curve :

Aluminium Housing Ip65 Bulkhead Light Outdoor LED Ceiling Light PF>0.95

Factory Tour :

Aluminium Housing Ip65 Bulkhead Light Outdoor LED Ceiling Light PF>0.95

Aluminium Housing Ip65 Bulkhead Light Outdoor LED Ceiling Light PF>0.95

Applications :

Any inquires , Please contact us

Miss charlotte

info@superolux.com

whatsapp:13670232205

More about us , please check on : www.ledbulkheadlight.com
