Specifications
Brand Name :
ANNHUNG
Place of Origin :
Guangdong, China
MOQ :
2
Price :
230usd
Payment Terms :
T/T,Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3-15days
Packaging Details :
Carton
Model Number :
AH-MI-B2 (L)
Certification :
ICAO, CE
IP Rating :
IP66
Lamp Material :
Aluminum Alloy
Light Source :
LED
Beam Angle :
360°
Input Voltage :
DC(12V, 48VDC) or AC(110-240VAC) or others
Luminous Flux :
100 lm
Lifespan :
100000 Hours
Product Weight :
2.5 kg
Light Intensity :
≥2000cd
Flash Rate :
20-60FPM
Operating Voltage :
DC(12V, 48VDC) or AC(110-240VAC) or others
Body Material :
UV protected Polycarbonate
Base Material :
Powder-coated Die-casting aluminum
Power Consumption :
5W
Ambient Temperature :
-40~55˚C
Description

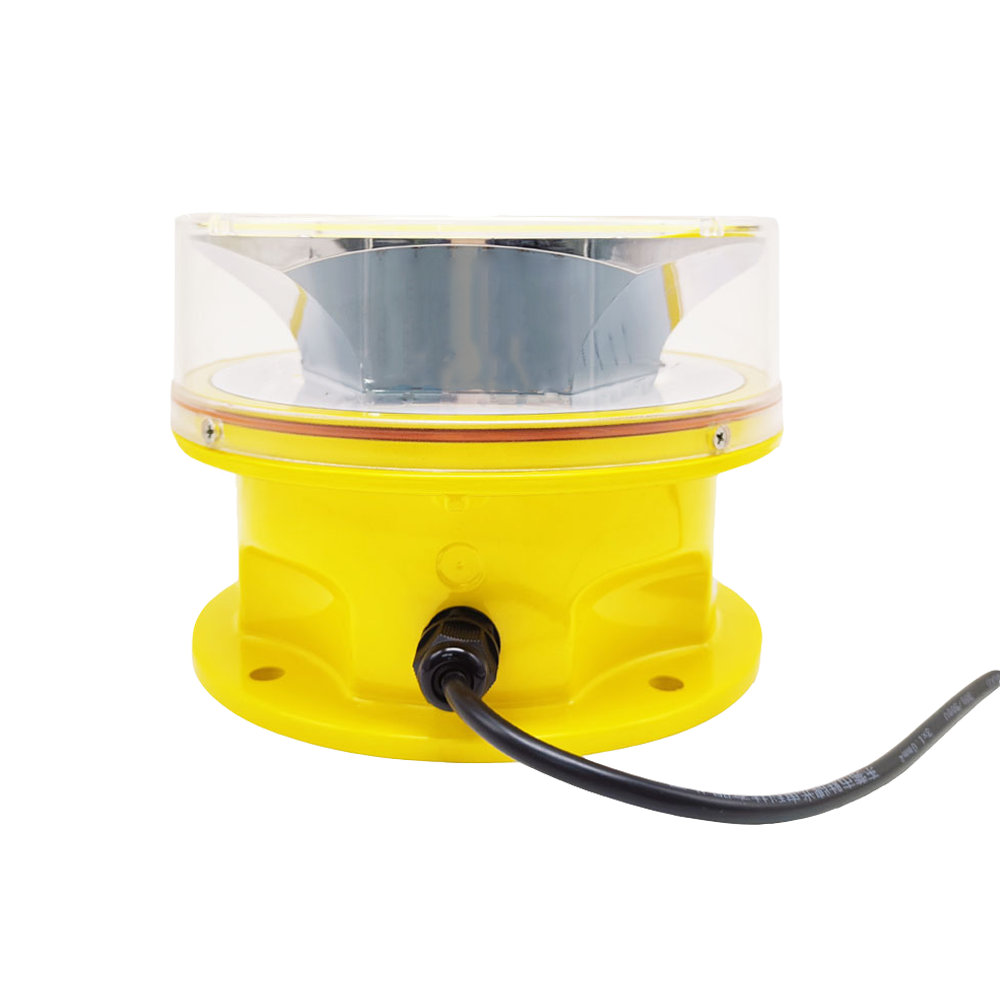

ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light
ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light with 2000cd Intensity, IP66 Waterproof, and 20-60FPM Flash Rate
Product Overview
The ANNHUNG AH-MI-B2 is a medium-intensity white LED aviation obstruction light designed for high-rise structures. With a 360° beam angle, IP66 waterproof rating, and 2000cd light intensity, this light provides reliable visibility with a 20-60 FPM flash rate for aviation safety.
Key Specifications
  • Model: AH-MI-B2 (L)
  • Applicable Height: 45-105 meters
  • Flash Rate: 20-60 flashes per minute
  • Light Color: Red (other colors optional)
  • Protection Level: IP65
  • Effective Light Intensity: 2000cd
The AH-MI-B2 medium-intensity light is designed for installation on high-rise buildings, chimneys, communication towers, tower cranes, wind turbines, and other structures where obstacle height ranges from 45-105 meters. Typically used in conjunction with low-intensity lights installed at lower levels.
ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light with 2000cd Intensity, IP66 Waterproof, and 20-60FPM Flash Rate
Regulatory Compliance
  • ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B/C Obstruction Light
  • FAA L-864
  • CAAC MH6012-2015 Aviation obstruction light, MH 5001-2013 Aerodrome technical standards
ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light with 2000cd Intensity, IP66 Waterproof, and 20-60FPM Flash Rate
Advanced Features
  • Built-in photocell for automatic day/night operation (dusk to dawn)
  • Surge and lightning protection
  • Integrated GPS device for synchronized flashing
ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light with 2000cd Intensity, IP66 Waterproof, and 20-60FPM Flash Rate
Technical Specifications
Parameter Specification Parameter Specification
Compliance ICAO FAA CAAC Mounting 190×190×θ12
Product Model AH-MI-B2(L) Dimension (mm) 229×229×168
Intensity (cd) ≥2000cd Waterproof IP66
Average Power (W) 5W Ambient Temperature -40~55˚C
Available Colors Red (Other color optional) Humidity 0% ~ 95%RH
Operate Mode Flash of Light Weight (kg) 2.5
Intensity (cd) 2000cd (at night) Wind Speed 240Km/h
LED Life Experience >100,000 hours Material Quality Aluminum Alloy

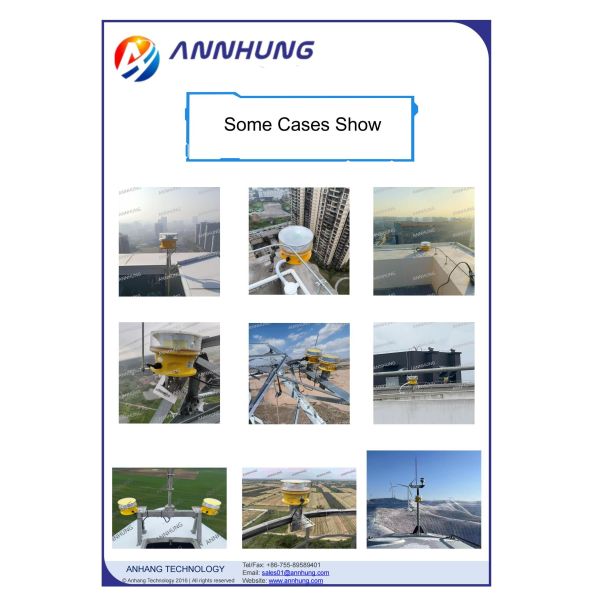

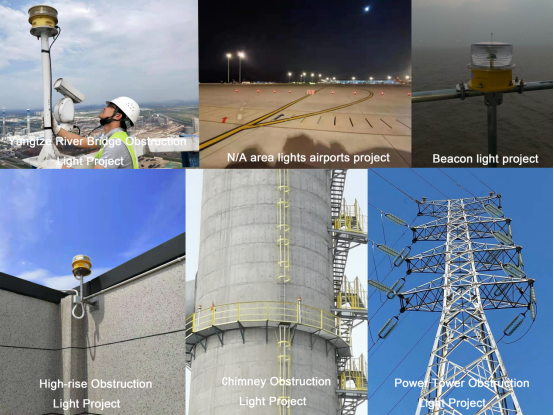

Application Examples
ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light with 2000cd Intensity, IP66 Waterproof, and 20-60FPM Flash Rate ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light with 2000cd Intensity, IP66 Waterproof, and 20-60FPM Flash Rate ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light with 2000cd Intensity, IP66 Waterproof, and 20-60FPM Flash Rate

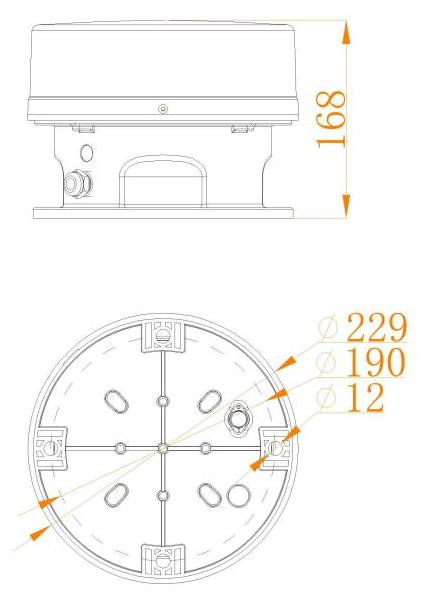

Product Dimensions
ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light with 2000cd Intensity, IP66 Waterproof, and 20-60FPM Flash Rate ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light with 2000cd Intensity, IP66 Waterproof, and 20-60FPM Flash Rate
Company Profile
ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light with 2000cd Intensity, IP66 Waterproof, and 20-60FPM Flash Rate ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light with 2000cd Intensity, IP66 Waterproof, and 20-60FPM Flash Rate ANNHUNG AH-MI-B2 White LED Medium-Intensity Aviation Obstruction Light with 2000cd Intensity, IP66 Waterproof, and 20-60FPM Flash Rate
ShenZhen Anhang Technology Company Limited is a high-technology enterprise specializing in research, development, production, sales, and after-sales services for aviation obstruction lights, aircraft warning lights, helipad lights, LED marine lanterns, LED bulbs, and aircraft warning spheres. As a domestic market leader in navigation lights, we support green and safe emissions. Our products are widely used in civil airports, helipads, communication towers, factories, power plant chimneys, television towers, ports, bridges, high-rise buildings, and buoyage systems. All products are designed and manufactured according to ICAO, FAA, and IALA standards.
