Specifications
Brand Name :
ANNHUNG
Place of Origin :
Guangdong, China
MOQ :
1
Price :
300usd
Model Number :
AH-MI-B2(L)
Certification :
ICAO, CE
Payment Terms :
T/T,Western Union
Supply Ability :
2000pcs Per Month
Delivery Time :
3-15 days
Packaging Details :
Carton
IP Rating :
IP66
Lamp Material :
Aluminum Alloy
Light Source :
LED
Beam Angle :
360° Horizontal
Color Rendering :
80 Ra
Emitting Color :
Red
Input Voltage :
110-240VAC
Luminous Flux :
2000 lm
Luminous Efficiency :
100 lm/w
Lifespan :
100000 hours
Product Weight :
4 kg
Flash Rate :
20-60 FPM
Operating Voltage :
DC(12V,24V,36V,48V) or AC(110-240VAC)
Average Power :
3W
Vertical Divergence :
3°
Instantaneous Power :
45W
Wind Resistance :
80m/s
Description
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
Product Description
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof

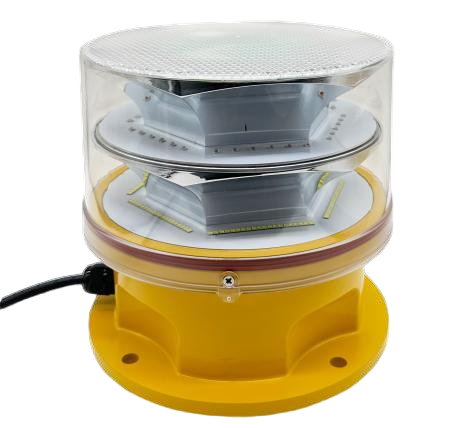

LED Medium-intensity Type BDouble Aviation ObstructionLight
This LED Medium-intensity Type B Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is more than 45meters. Both lamp working as main-standby, when main lamp fail, standby
lamp turn on automatically.
Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the
power consumption.

Compliance
* ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium
Intensity Type B Obstruction Light
Specification
item
value
Warranty(Year)
2-Year
Color Rendering Index(Ra)
80
Type
Aviation Obstruction Lights
Support Dimmer
NO
Lifespan (hours)
100000
Working Time (hours)
100000
Product Weight（kg）
4
Lamp Luminous Flux(lm)
2000
Lamp Luminous Efficiency(lm/w)
100
CRI (Ra)
80
Color Temperature(CCT)
Other
Beam Angle(°)
360° in Horizontal Direction.
IP Rating
IP66
RedEmitting Color
Red
Lamp Body Material
Aluminum Alloy
Base Type
other
Light Source
LED
Place of Origin
China
Guangdong
Brand Name
ANNHUNG
Lighting solutions service
Lighting and circuitry design
Available Colors
Red (Night)
Flash Characteristics
20-60 FPM
Operating Voltage
DC(12V, 24V, 36V, 48V) or AC(110-240VAC)
Average Power(W)
3W
Vertical Divergence
3°
Instantaneous power
45W
Humidity
0%-100%
Wind Speed
80m/s
Waterproof
IP66
Certifications
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
Product Size
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
Company Profile
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
ShenZhen Anhang Technology Company Limited is a high technology enterprise engaging in research, development, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world. Our corporate motto is "Good quality, Best service, Customer First, Harmony & Win-Win". We strive to make green and environmental friendly aviation lights as our mission. We take advantage of our superior technology and innovations to make green and energy-saving LED Aviation Obstruction Light,Helipad Light and Marine Lanterns replacing the traditional xenon tube lights or Incandescent lamp. Our aim is to become the toppest player in domestic industry. We are also willing to seek more partners to expand our domestic and global market share.

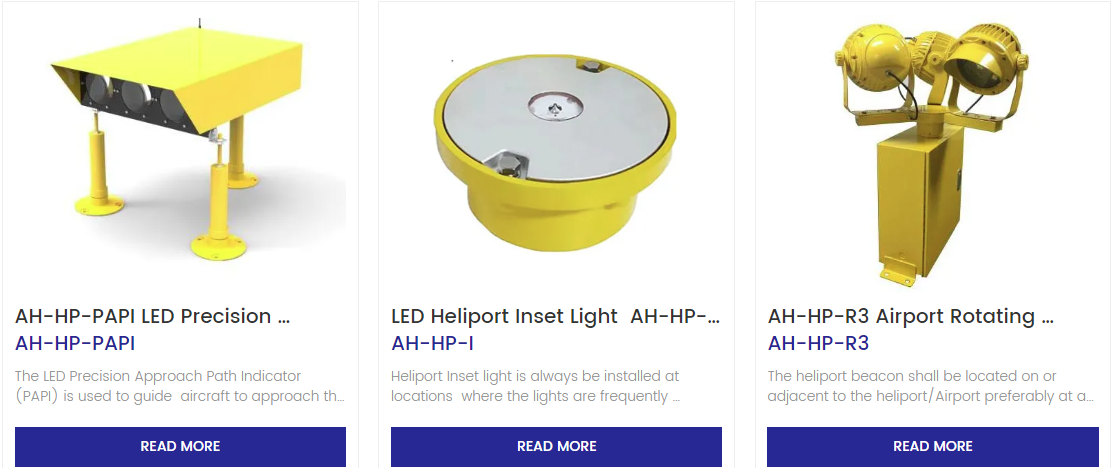

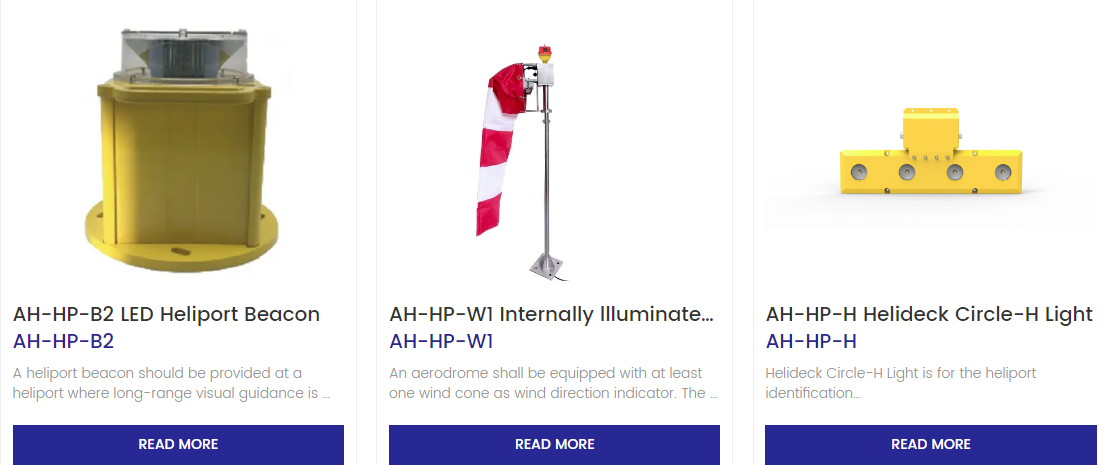

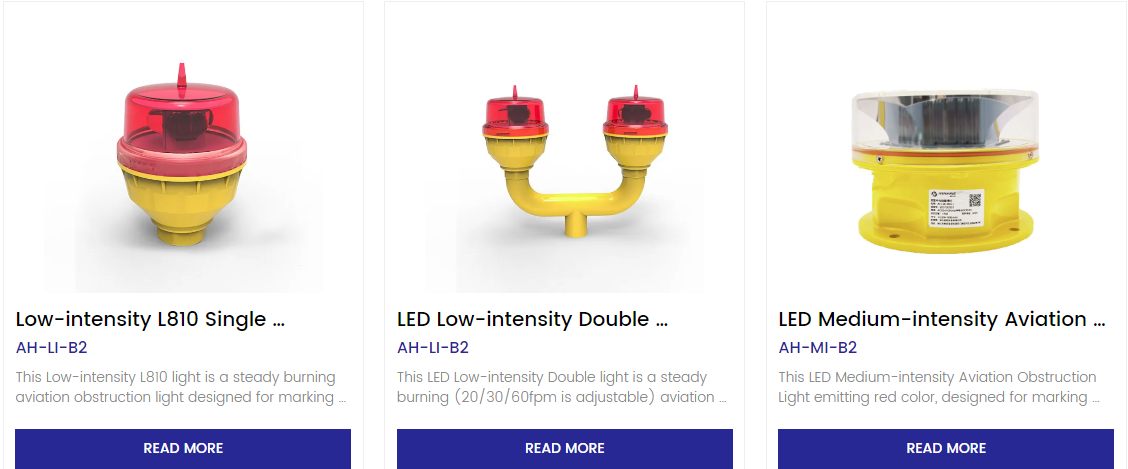

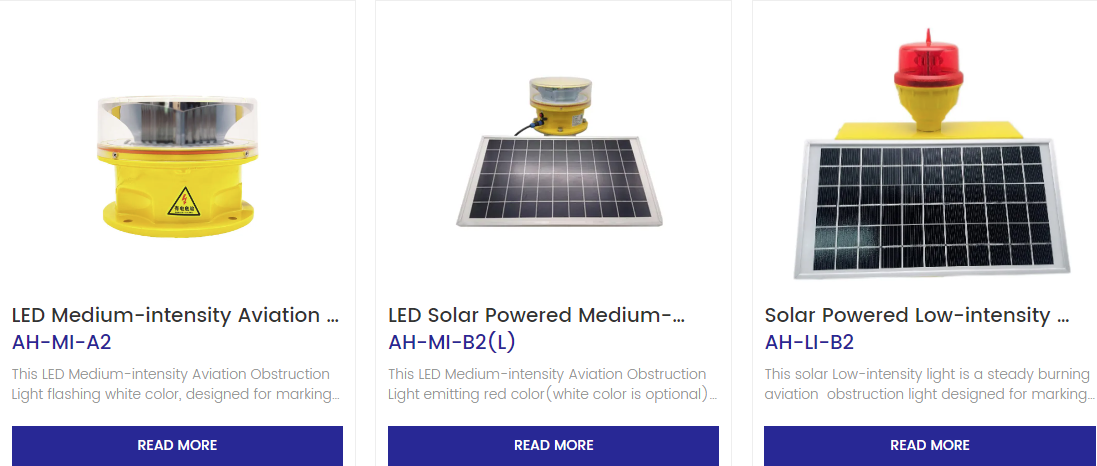

Hot Product Display
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
Some cases show
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
ICAO Annex 14th Compliant LED Aviation Obstruction Light with 100,000 Hours Lifespan and IP66 Waterproof
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to Mid East(30.00%),South Asia(20.00%),Eastern Asia(10.00%),Southeast Asia(10.00%),South America(10.00%),North America(7.00%),Oceania(5.00%),Eastern Europe(3.00%),Western Europe(3.00%),Domestic Market(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
aviation obstruction light,aircraft warning light,helipad lights,heliport lighting,Solar Airport Light

4. why should you buy from us not from other suppliers?
high technology enterprise engaging in research, development,production, 7 years manufacture and sales experience, 3-5 years warranty, 24hours service. Avaition Obstruction Light, Helipad Lighting, Marine lantern. Aircraft Warning Light.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese
