Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System
Specifications
Brand Name :
Annhung
Place of Origin :
Guangdong, China
MOQ :
1
Price :
66666
Payment Terms :
T/T,Western Union
Packaging Details :
Carton
Color Temperature :
Warm White
IP Rating :
IP65
Material :
Stainless Steel
Light Source :
LED
Base Type :
AH-80-O5
Beam Angle :
360° Horizontal
Color Rendering :
Ra 100
Emitting Color :
Red
Input Voltage :
AC220V, 50/60 Hz
Luminous Efficiency :
120 lm/w
Luminous Flux :
≥32cd
Lifespan :
>100,000 Hours
Product Weight :
15 kg
Waterproof Rating :
IP66
Ambient Temperature :
-55~70℃
Description
ICAO CAAC FAA Helipad Windcone Aviation Obstruction Lights
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System
Product Overview

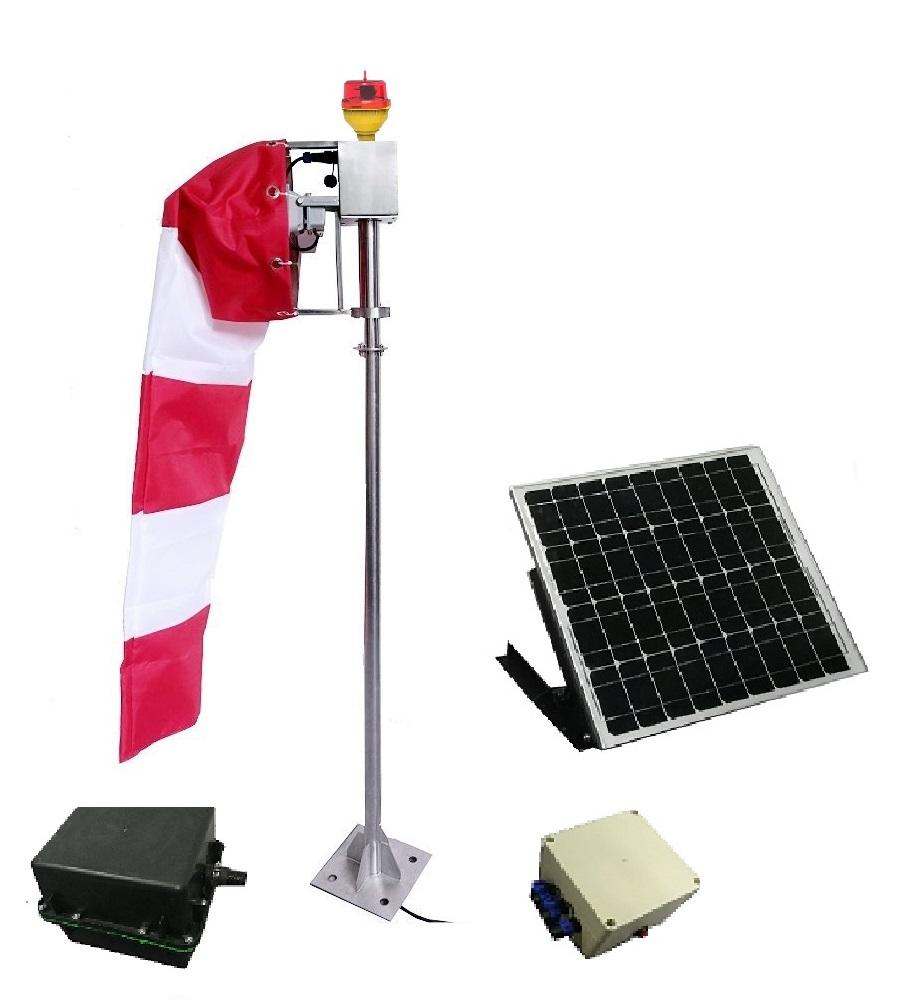

Internally Illuminated Airdrome Solar Wind Cone designed for heliport and airport installations. Each wind cone serves as a wind direction indicator and includes an obstruction light on top for aircraft warning. Complete system includes solar panel, battery, and ON/OFF switch.
Regulatory Compliance
• ICAO Annex 14 Volume II Heliports 5.1.1
• FAA AC 150/5390-2B Heliport Design Guide
• ICAO Annex 14 Volume I
Key Features
  • Power supply: 12VDC
  • Corrosion-resistant stainless steel 304 pole (SS316 optional)
  • Top-mounted obstruction light with flood light illumination
  • Customizable pole heights (1m, 2m, 2.5m, 3m, 4m, 5m, etc.)
  • Windsock options: orange, red/white, red, white
  • Windsock materials: PVC or Nylon
  • Photocell for automatic day/night operation
  • Optional: Fragile coupling on base, wireless remote control
Windsock Specifications
Pole Height Length Large Diameter Small Diameter
<4m 1.2m 300mm 150mm
4m-6m 2.4m 600mm 300mm
>6m 3.6m 900mm 450mm

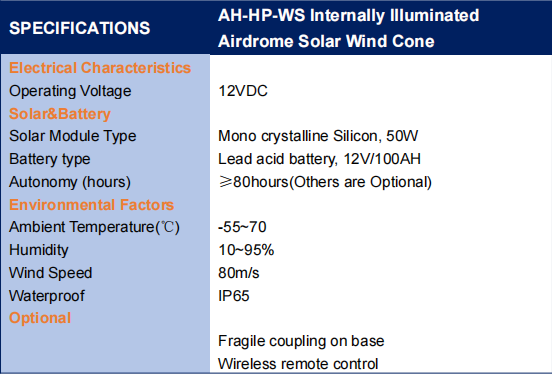

Technical Specifications
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System

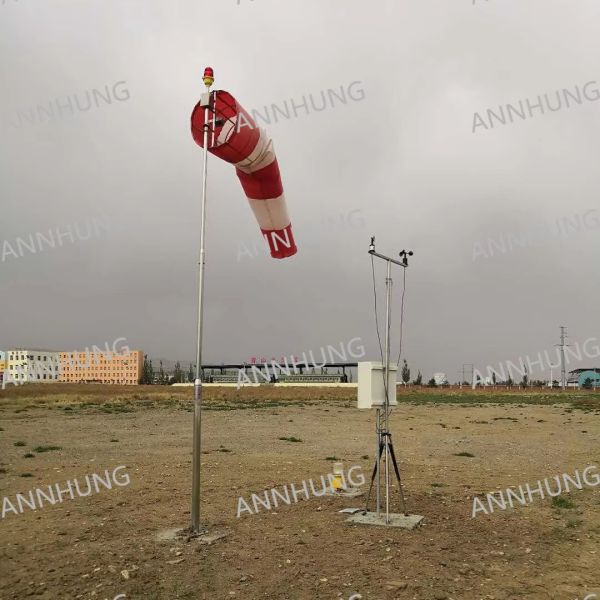

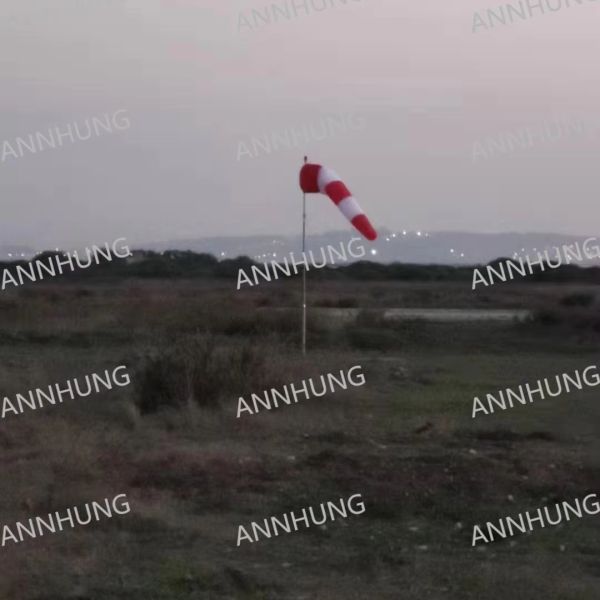

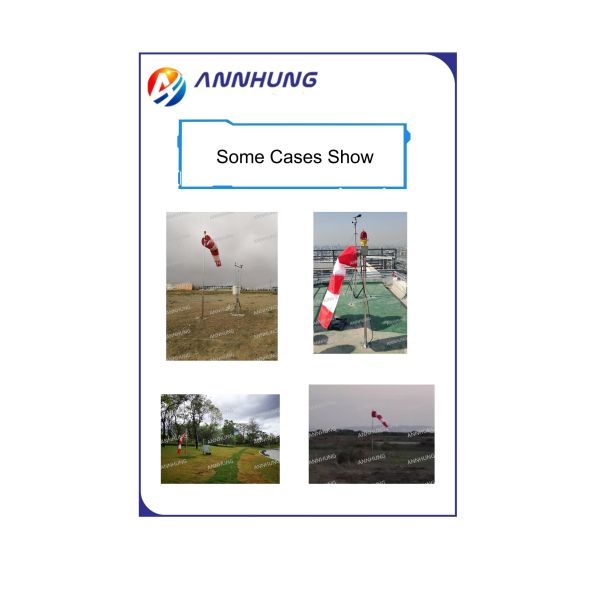

Installation Examples
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System
Manufacturer Profile
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System ShenZhen Anhang Technology Company Limited is a high-technology enterprise specializing in research, development, production, sales, and after-sales services for aviation obstruction lights, aircraft warning lights, helipad lights, LED marine lanterns, LED bulbs, and aircraft warning spheres. As a domestic market leader in navigation lights, we support green and safe emissions. Our products are widely used in civil airports, helipads, communication towers, factories, power plant chimneys, television towers, ports, bridges, high-rise buildings, and sea buoyage. All products are designed and manufactured according to ICAO, FAA, and IALA standards.
Product Portfolio
Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System Stainless Steel IP66 Waterproof Helipad Windcone with 360° Beam Angle Aviation Obstruction Light Solar Power System
Frequently Asked Questions
Who are we?
Based in Guangdong, China, established in 2016. We serve global markets including Mid East (30%), South Asia (20%), Eastern Asia (10%), Southeast Asia (10%), South America (10%), North America (7%), Oceania (5%), Eastern Europe (3%), Western Europe (3%), and Domestic Market (2%). Our team consists of 51-100 professionals.
How do we guarantee quality?
Pre-production samples before mass production and final inspection before shipment ensure consistent quality standards.
What products do we offer?
Aviation obstruction lights, aircraft warning lights, helipad lights, heliport lighting, and solar airport lights.
Why choose us?
High-technology enterprise with 7 years manufacturing experience, 3-5 years warranty, 24-hour service, specializing in aviation obstruction lights, helipad lighting, marine lanterns, and aircraft warning lights.
What services do we provide?
Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Methods: T/T, Western Union, Cash
Languages: English, Chinese
