ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
Specifications
Brand Name :
ANNHUNG
Place of Origin :
Guagndong,China
MOQ :
1
Price :
150
Model Number :
AH-LI-B2
Certification :
ICAO,CE
Payment Terms :
T/T,Western Union
Supply Ability :
2000pcs Per month
Delivery Time :
3-15days
Packaging Details :
Carton
Color Temperature :
Red
IP Rating :
IP66
Body Material :
Aluminum Alloy
Light Source :
LED
Beam Angle :
360°
Input Voltage :
DC(48V) & AC(110-240VAC)
Luminous Flux :
100 lm
Luminous Efficiency :
100 lm/w
Lifespan :
100000 hours
Product Weight :
2 kg
Operating Voltage :
DC(48VDC) & AC(110-240VAC)
Power :
5 W

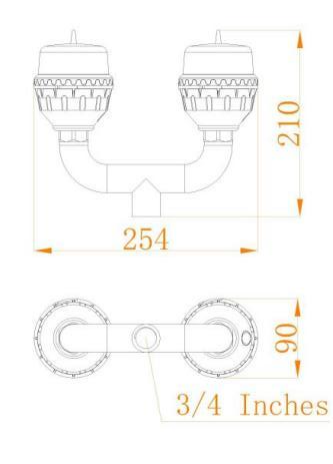

Overall Size :
254×90×210 mm
Flash Rate :
Steady-burning
Intensity :
32.5
Description
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
Product Description
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan

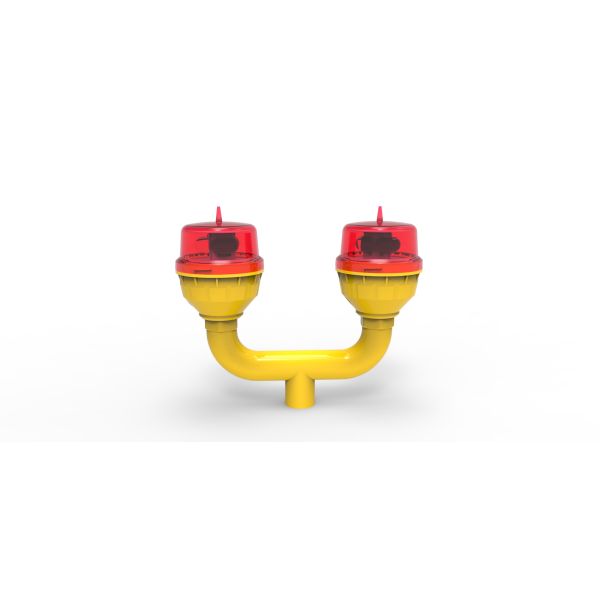

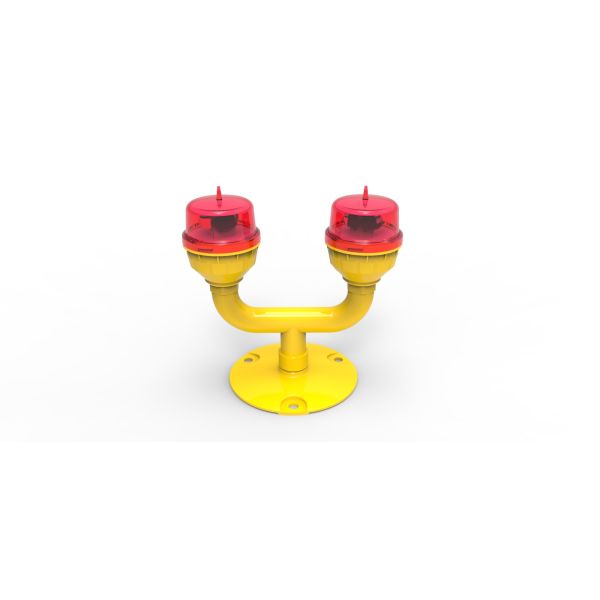

AH-LI-B2
This LED Low-intensity Double light is a steady burning (Flashing is adjustable) aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.
Main-standby mode ensure the obstacle is always marked
even one light fail.
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan

Compliance

* ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B /E Obstruction Light
* FAA L-810
Electrical
* CREE LED, make sure LED keep bright while use for long time
* Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC
Physical
* Bird deterrent spike on top
* Unique designed PMMA lens for converging light and good
transparency
* High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing
* UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments()
* Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
* 3/4inch thread hole make pole installation easy
* No screw fix type - just twist, the cover will be fixed tightly
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan

System design

* Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance is below 50cd/m2
* Surge and lightning protection
* Main-standby mode, when the main light fail, the standby light automatically switch on to ensure the obstacle is always clearly marked.

Optional
* Infrared LED for pilot using NVG
* Alarm contact output (Dry contact- NO COM NC), When power failed alarm generate & also when LED fails alarm generated
* Solar power system

Application
* AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.
Specification
item
value
Warranty(Year)
2-Year
Color Rendering Index(Ra)
80
Type
Aviation Obstruction Lights
Support Dimmer
NO
Lifespan (hours)
100000
Working Time (hours)
100000
Product Weight（kg）
2
Input Voltage(V)
DC(48V)& AC(110-240VAC),
Lamp Luminous Flux(lm)
100
Lamp Luminous Efficiency(lm/w)
100
CRI (Ra)
80
Color Temperature(CCT)
Red
Beam Angle(°)
360
IP Rating
IP66
Emitting Color
Red
Lamp Body Material
Aluminum Alloy
Base Type
other
Light Source
LED
Place of Origin
Guagndong
Brand Name
ANNHUNG
Lighting solutions service
Lighting and circuitry design
Application
High-rise Building, High Chimney, marking towers
Color
Red
Standard
ICAO Annex 14th
Intensity
32.5
Flash rate
Steady-burning
Operation Mode
Dusk-to-dawn Automatically as standard.
Operating Voltage
DC(48VDC) &AC(110-240VAC)
Waterproof
IP66
Overall Size
254×90×210
Power(W)
5
Packing & Delivery
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan

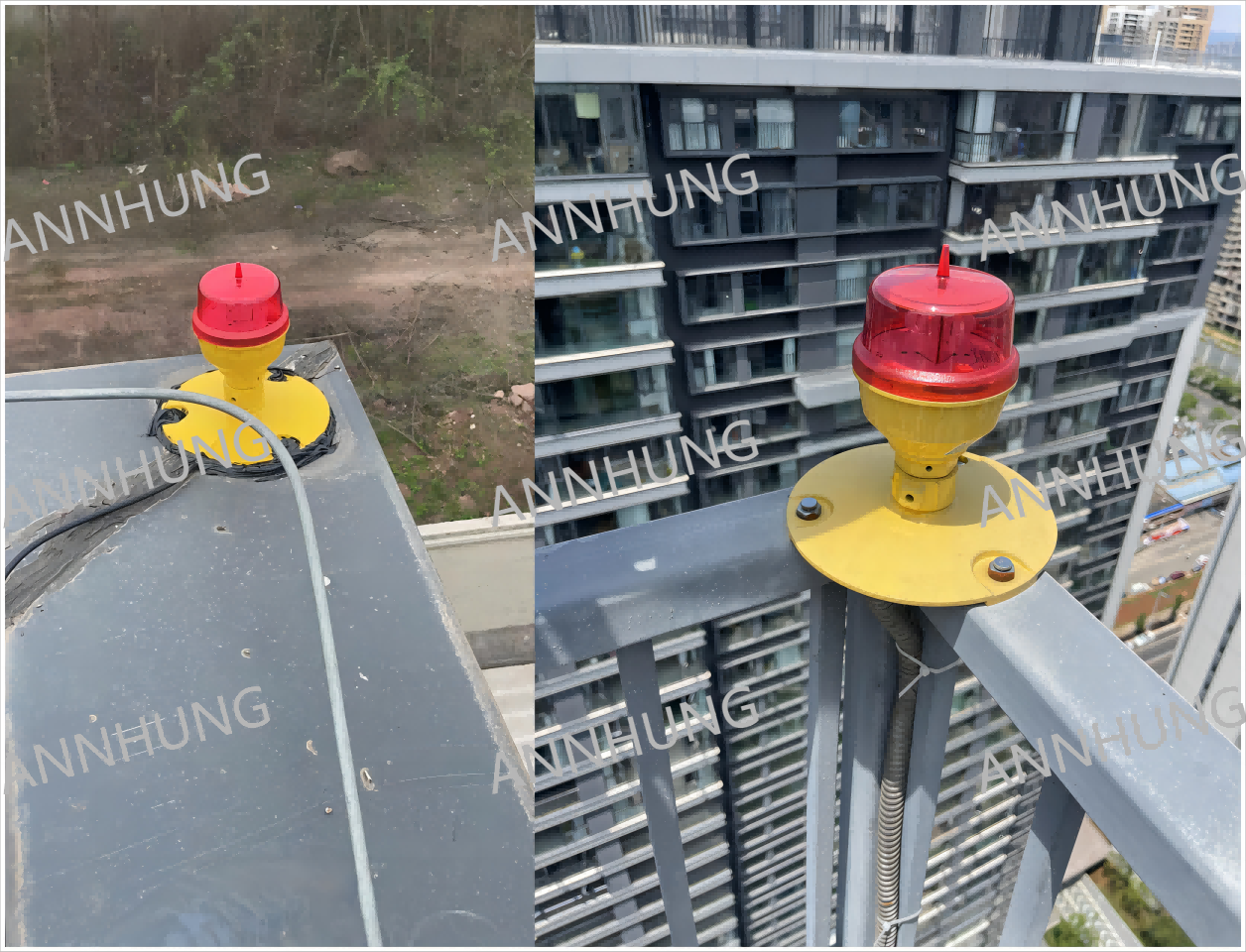

Some cases show
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
Company Profile
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ShenZhen Anhang Technology Company Limited is a high technology enterprise engaging in research, development, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world. Our corporate motto is "Good quality, Best service, Customer First, Harmony & Win-Win". We strive to make green and environmental friendly aviation lights as our mission. We take advantage of our superior technology and innovations to make green and energy-saving LED Aviation Obstruction Light,Helipad Light and Marine Lanterns replacing the traditional xenon tube lights or Incandescent lamp. Our aim is to become the toppest player in domestic industry. We are also willing to seek more partners to expand our domestic and global market share.
Hot Product Display
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to Mid East(30.00%),South Asia(20.00%),Eastern Asia(10.00%),Southeast Asia(10.00%),South America(10.00%),North America(7.00%),Oceania(5.00%),Eastern Europe(3.00%),Western Europe(3.00%),Domestic Market(2.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
aviation obstruction light,aircraft warning light,helipad lights,heliport lighting,Solar Airport Light

4. why should you buy from us not from other suppliers?
high technology enterprise engaging in research, development,production, 7 years manufacture and sales experience, 3-5 years warranty, 24hours service. Avaition Obstruction Light, Helipad Lighting, Marine lantern. Aircraft Warning Light.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,Western Union,Cash;
Language Spoken:English,Chinese
