Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Specifications
Brand Name :
ANNHUNG
Place of Origin :
Guangdong, China
MOQ :
1
Price :
888888usd
Certification :
ICAO, CE
Payment Terms :
T/T,Western Union
Supply Ability :
500pcs Per Month
Packaging Details :
Carton
Model Number :
AH-HI-A2
IP Rating :
IP67
Lamp Material :
Aluminum Alloy
Light Source :
LED
Beam Angle :
360°
Color Rendering :
Ra 100
Emitting Color :
White
Input Voltage :
DC(48V, 24V), AC(110-240V)
Luminous Efficiency :
120 lm/w
Luminous Flux :
120 lm
Lifespan :
100000 hours
Product Weight :
7.5 kg
Vertical Divergence :
4°
Flash Rate :
40fpm-60fpm
Light Intensity :
≥200,000cd(Day), ≥20,000cd(Twilight), ≥2,000cd(Night)
Operating Voltage :
DC(48V, 24V), AC(110-240V)
Description
High-Intensity IP67 Waterproof LED Aviation Obstruction Light
Factory direct sales high-intensity IP67 waterproof 360° beam angle LED aviation obstruction light for iron towers, designed for 24/7 operation.
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd IntensityFactory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Product Overview
This LED High-intensity Type A Aviation Obstruction Light flashes white color 24 hours and is designed for marking the top of obstacles exceeding 150 meters in height.
  • Ultra high intensity CREE LED light source ensures long lifespan and optimal performance
  • Self-designed reflection board maximizes light output with fewer LEDs
Compliance Standards
  • ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 High Intensity Type A Obstruction Light
Electrical Specifications
  • CREE ultra high intensity LED light source for power efficiency
  • Power supply options: DC (48V) or AC (110V-240V)
Physical Design
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
  • Unique design with UV protected polycarbonate lens for light convergence and power efficiency
  • UV protection powder coated bright yellow color base for enhanced visibility
  • Powder coated die-casting aluminum base with strong corrosion resistance
  • Shock and vibration protection
  • Special valve installed under base for temperature regulation and waterproofing
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
System Features
  • Built-in photocell for day/twilight/night operation
  • Surge and lightning protection
Optional Features
  • Alarm contact for remote monitoring
  • Infrared LED for pilot using NVG (Night Vision Goggles)
  • GPS synchronization
  • RS232 communication port
Applications
AH-HI-A2 High-intensity light is used on top of high-rise buildings, high chimneys, marking towers (Telecom, GSM, Microwave & TV), high poles, tower cranes, wind turbines, and other obstacles exceeding 150 meters in height. Typically works with low and medium intensity lights installed on lower positions.
Technical Specifications
Specification Details
Light Source CREE high intensity LED
Available Colors White
Intensity ≥200,000cd (Daytime)
≥20,000cd (Twilight)
≥2,000cd (Night)
Horizontal Output 360°
Vertical Divergence 4°
Flash Characteristics 40fpm-60fpm (Factory setting: 40FPM)
Operation Mode 24 hours operation, 3 different modes
LED Life Experience >100,000 hours
Photocell Level Night (<50cd/m²), Twilight (50-500cd/m²), Day (>500cd/m²)
Operating Voltage DC (48V, 24V, etc), AC (110-240V)
Average Power <100W (40FPM)
Circuit Protection Integrated
Body Material Polycarbonate
Base Material Powder coated die-casting aluminum
Mounting θ190×θ12
Dimension 236×236×545 mm
Weight 7.5 kg
Product Life Expectancy 10 years Plus
Humidity 0%-100%
Wind Speed 80 m/s
Waterproof IP67

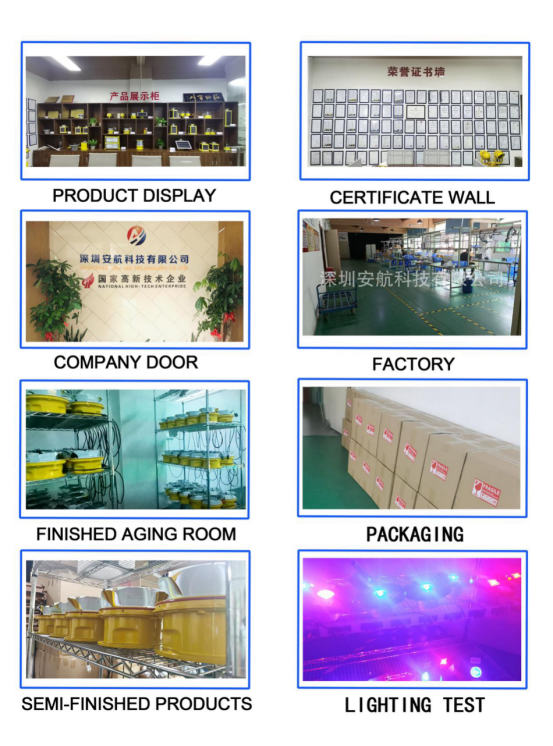

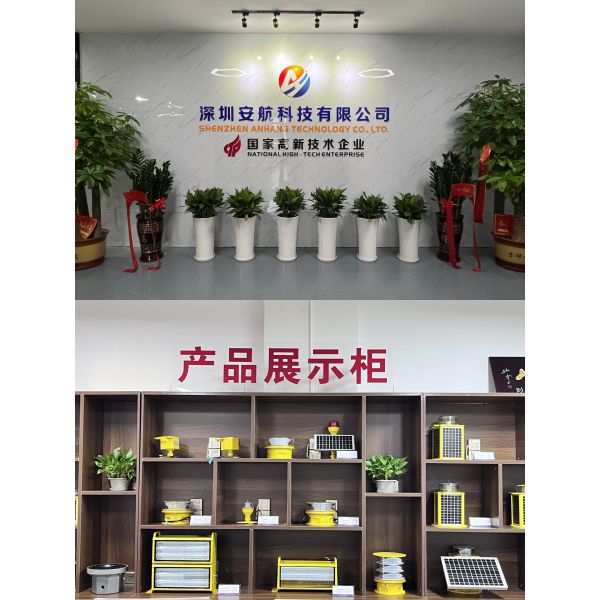

Manufacturer Profile
Factory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd IntensityFactory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd IntensityFactory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd IntensityFactory Direct High-Intensity IP67 Waterproof 360 Beam Angle LED Aviation Obstruction Light with 200,000cd Intensity
Anhang Technology, founded in 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction lights, aircraft warning lights, helipad lighting, solar airfield lights, and marine navigation lanterns. Our factory located in Shenzhen City, China, has more than 10 years manufacturing experience for clients worldwide.
We hold 42+ patents and have passed international and domestic certifications including CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, and ISO 45001.
All aviation obstruction lights, aircraft warning lights, helipad lighting, and solar airfield lights fully comply with standards of ICAO (International Civil Aviation Organization), CAAC (Civil Aviation Administration of China), and FAA (Federal Aviation Administration). Marine navigation lanterns are produced according to IALA (International Association of Lighthouse Authorities) standards.
