Specifications
Brand Name :
ANNHUNG
Place of Origin :
Guangdong, China
MOQ :
2
Price :
$3,005-3,505
Color Temperature :
Cool White
IP Rating :
IP66
Body Material :
Aluminum
Light Source :
LED
Beam Angle :
360°
Color Rendering Index :
80
Emitting Color :
Red
Input Voltage :
220/240ac
Luminous Efficiency :
100 lm/w
Luminous Flux :
100 lm
Lifespan :
10000 Hours
Product Weight :
22 kg
Flash Rate :
24 flashes/minute
Light Intensity :
≥25000cd
Ambient Temperature :
-40~65℃
Description

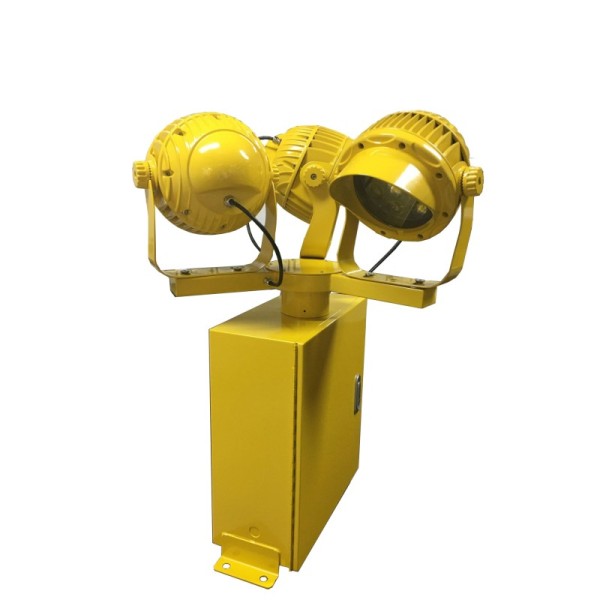

Three-Lamp Airport Rotating Beacon for Helipad Visual Guidance
LED Airport Rotating Beacon with IP66 Waterproof and ICAO Annex 14 Compliant Helipad LightLED Airport Rotating Beacon with IP66 Waterproof and ICAO Annex 14 Compliant Helipad Light
The LED Airport Rotating Beacon is designed for optimal placement on or adjacent to heliports and airports, preferably at elevated positions to avoid dazzling pilots at short range. This rotating beacon serves as an essential identification and location marker for airports during night operations.
Regulatory Compliance
  • FAA L-801, L-802 150/5345-12F
  • ICAO Annex 14 Volume I 5.3.3
Applications
  • Helipad/Heliport/Helideck
  • Airport
Key Features
  • LED light source with ≥100,000 hour typical lamp life
  • Dual head design with two emitting colors
  • Maintenance-free operation
  • Permanently lubricated moving parts
  • Impedance-protected motor eliminates burnouts
  • 12RPM rotation, 24 flashes per minute
  • Weatherproof stainless steel cabinet with powder-coated international aviation yellow finish
  • Optional solar power system for areas without electrical power supply
LED Airport Rotating Beacon with IP66 Waterproof and ICAO Annex 14 Compliant Helipad Light
Technical Specifications
Specification Value
Color Temperature (CCT) Cool White
IP Rating IP66
Lamp Body Material Aluminum
Place of Origin China, Guangdong
Light Source LED
Warranty 1-year
Brand Name ANNHUNG
Beam Angle 360°
Color Rendering Index (Ra) 80
Emitting Color Red
Input Voltage 220/240V AC
Lamp Luminous Efficiency 100 lm/w
Lifespan 10,000 Hours
Product Weight 22 kg
Type Aviation Obstruction Lights
Color Options White and Yellow, White and Green or others
Flash Characteristics 24 flashes per minute (customizable)
Standard ICAO Annex 14 Volume I 5.3.3
Light Beam (Vertical) 5°
Light Intensity ≥25,000 cd (customizable)
Working Mode Steady Burning
Ambient Temperature -40°C to 65°C
Wind Speed Rating 80 m/s
Waterproof Rating IP66
Dimensions 566 x 260 x 740 mm

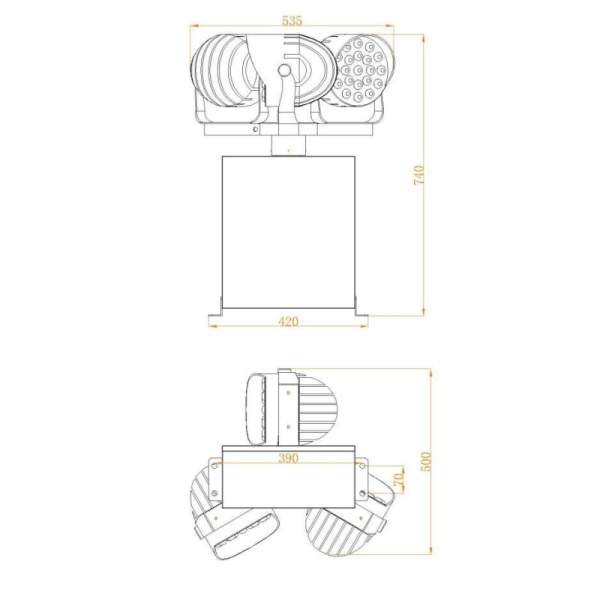

Product Dimensions
LED Airport Rotating Beacon with IP66 Waterproof and ICAO Annex 14 Compliant Helipad Light

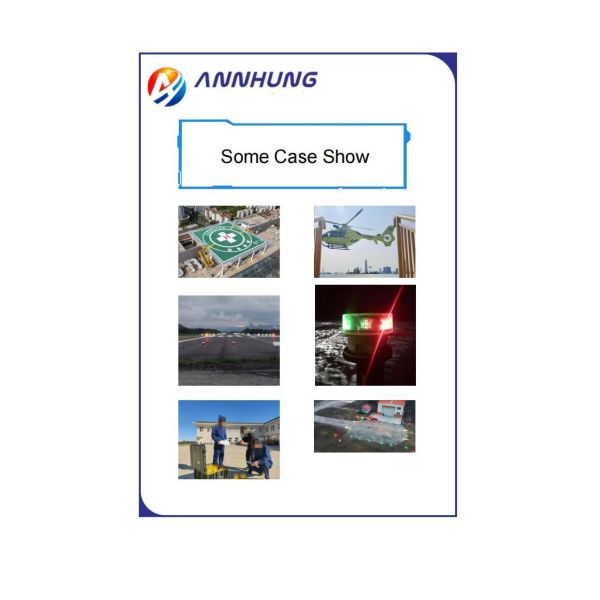

Installation Case Studies
LED Airport Rotating Beacon with IP66 Waterproof and ICAO Annex 14 Compliant Helipad LightLED Airport Rotating Beacon with IP66 Waterproof and ICAO Annex 14 Compliant Helipad LightLED Airport Rotating Beacon with IP66 Waterproof and ICAO Annex 14 Compliant Helipad Light
