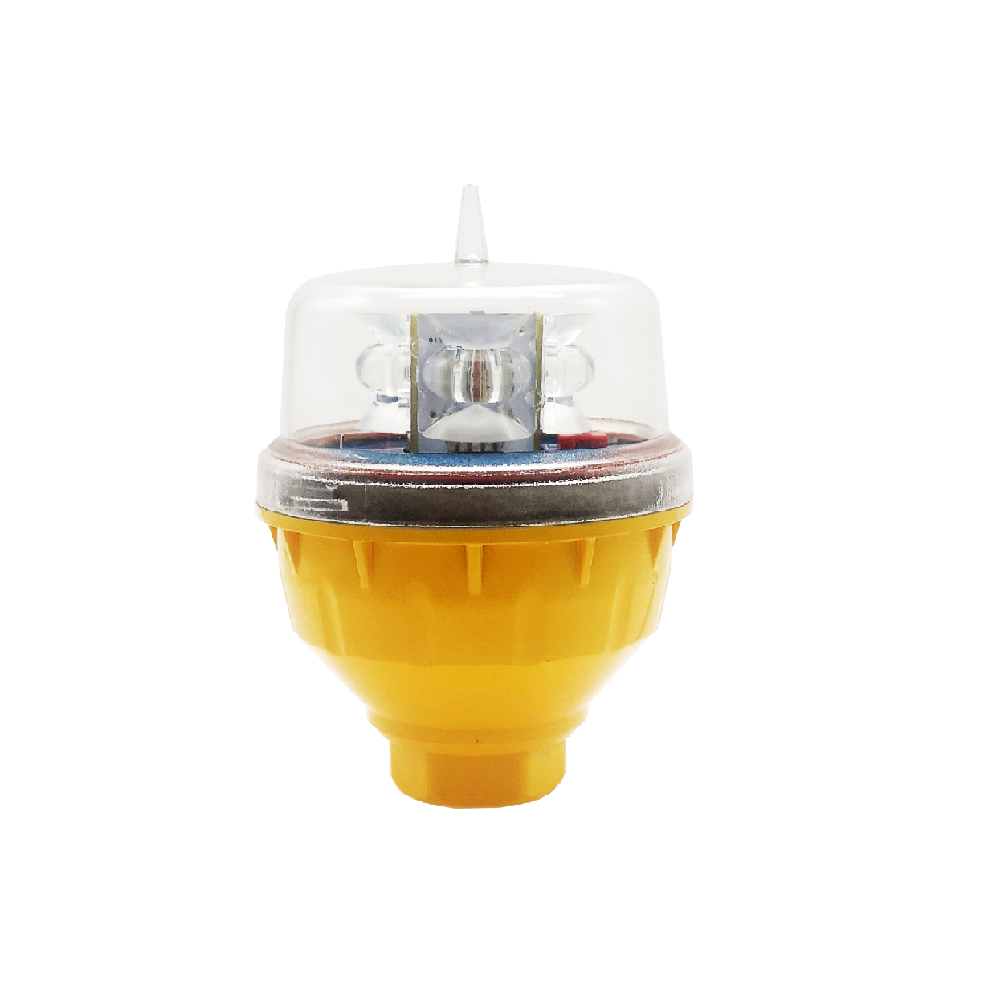

IP65 Rated LED Aviation Obstruction Light with 100,000 Hours Lifespan and Polycarbonate Housing
IP65 Rated LED Aviation Obstruction Light with 100,000 Hours Lifespan and Polycarbonate Housing
IP65 Rated LED Aviation Obstruction Light with 100,000 Hours Lifespan and Polycarbonate Housing
IP65 Rated LED Aviation Obstruction Light with 100,000 Hours Lifespan and Polycarbonate Housing
Specifications
Brand Name :
Annhung
Place of Origin :
Guangdong, China
Certification :
CE,ICAO
MOQ :
1
Model Number :
AH-LI-B2
Price :
6666
Payment Terms :
T/T,Western Union
Supply Ability :
2000pcs per month
Delivery Time :
3-15day
Packaging Details :
Carton
Color Temperature :
red
IP Rating :
IP65
Material :
Aluminum Alloy
Light Source :
LED
Beam Angle :
360° Horizontal
Input Voltage :
AC110-240V/DC48V
Luminous Efficiency :
120 lm/w
Light Intensity :
≥ 32.5cd (Option 10cd,50cd,80cd,100cd)
Vertical Degree :
≥ 10°
Light Source Life :
≥ 100,000 hours
Ambient Temperature :
-40℃~+70℃
Weight :
0.3Kg
Power Consumption :
2.5W
Overall Size :
90 by 90 by 130 mm
Wind Load :
80m/s
Description
AH-LI-B2 Tower Warning Light - Aviation Obstruction Light for Communication Towers
HOT SALE! Promotion!
Low-intensity LED Single Aviation Light compliant with ICAO, FAA, and CAAC standards.
Applications
This series of products can be used alone on top of high-rise buildings, chimneys, communication towers (Telecom, GSM, Microwave & TV), high poles, tower cranes, wind turbines, and other structures with heights lower than 45m. For obstacles higher than 45m, these products can be used with medium-intensity or high-intensity obstruction lights to mark potentially hazardous obstructions to air traffic with steady or flashing red safety lights.
IP65 Rated LED Aviation Obstruction Light with 100,000 Hours Lifespan and Polycarbonate Housing
Technical Specifications
Description Parameter
Model AH-LI-B2
Light Intensity ≥ 32.5cd (Option 10cd, 50cd, 80cd, 100cd)
Flash Rate Steady-burning mode or Flashing mode (20-60 times/minute)
Light Source LED
LED Service Life ≥ 100,000 hours
Operating Voltage AC220V (option voltage, eg. AC120V, AC110V, DC48V)
Power Consumption 2.5W
Overall Size (mm) 90 * 90 * 130
Installation Size 3/4 inch or 1 inch
Vertical Degree ≥ 10°
Horizontal Degree 360°
Housing Material Polycarbonate
Base Material Die casting aluminum
Weight 2.5Kg
Emitting Color Aviation red
Ambient Temperature -40℃ to +70℃
Wind Load 80m/s
Protection Standard IP65
Product Advantages
  • PC material with excellent impact protection strength, thermal stability, and high transmittance
  • Bird spike protection against bird droppings
  • International-advanced cold LED technology with low power consumption and high brightness
  • LED light source lasts 15 times longer than traditional incandescent lighting
  • Approximately 96% less power consumption than 116W incandescent lights
  • Major maintenance cost savings with built-in surge protection device
  • Strong corrosion resistance, shock and vibration protection, and UV protection
  • Dawn to dusk operation with built-in photocell for automatic night operation
  • 3/4 inch or 1 inch installation size with compact design ideal for telecom and flag-pole installations
  • Switch for converting between flashing mode and steady-burning operation
Five Years Warranty Period
Functionality
This single light unit includes a photocell for automatic operation. It activates automatically at night when ambient brightness falls below 500cd/m². The compact design makes it particularly suitable for flag-pole installation applications.
Compliance Standards
Low-intensity Type A or Type B FAA L-810
Low Intensity Single Obstruction Light, ICAO Annex 14 Volume 1, 'Aerodrome Design and Operations' Fourth edition July 2004, table 6.3
Manufacturer Information
Shenzhen Anhang Technology Company Limited is a high-technology enterprise specializing in research, production, sales, and after-sales services for aviation obstruction lights, aircraft warning lights, helipad lights, LED marine lanterns, LED bulbs, and aircraft warning spheres. As a domestic market leader in navigation lighting and supporter of green and safe emissions, our products are widely used in civil airports, helipads, communication towers, factories, power plant chimneys, television towers, ports, bridges, high-rise buildings, and marine buoyage systems.
