Specifications
Brand Name :
Annhung
Place of Origin :
Guangdong, China
MOQ :
1
Price :
6666USD
Packaging Details :
Carton
Color Temperature :
Red, Green, Yellow (Amber), Blue or White
IP Rating :
IP68
Body Material :
Aluminum Alloy
Light Source :
LED
Beam Angle :
360° Horizontal
Input Voltage :
DC3.7V
Luminous Efficiency :
120 lm/w
Luminous Flux :
1cd(1NM),5cd(2NM),15cd(3NM)
Lifespan :
100000 hours
Product Weight :
2 kg
Vertical Degree :
>9°
Ambient Temperature :
-55℃~+60℃
Nominal Voltage :
3.7V
Wind Load :
80m/s
Overall Size :
220*220*233 mm
Description

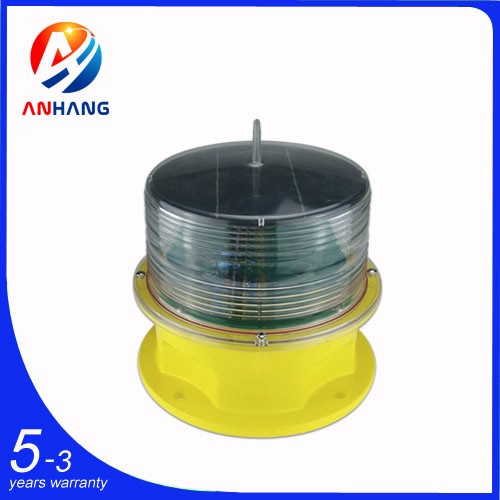

AH-LS-C1 Solar Powered LED Aviation Obstruction Lights
IALA Standard IP68 Rated 360° Beam Angle Customizable Green Aluminum Alloy
Product Overview
Solar powered marine navigation lantern designed to IALA standards with self-contained operation. Ideal for marine and aviation obstruction lighting applications.
Applications
AH-LS-C1 navigation lights are suitable for ocean buoys, river buoys, aquaculture facilities, offshore oil platforms, ports, and other fixed and floating navigation aids.
Solar Powered LED Aviation Obstruction Light with IP68 Rating and 360 Beam Angle for Marine Navigation
Key Advantages
  • Up to 3 Nautical Miles visibility (Tc = 0.74)
  • LED technology with colors compliant to IALA Recommendations E-200-1
  • Bird spike protection against bird droppings
  • Comprehensive protection against short-voltage, over-voltage, floating charge and temperature variations
  • Advanced cold and special LED technology with low power consumption, high brightness and 100,000-hour service life
  • Strong corrosion resistance with rain, snow, shock, vibration and UV protection
  • Clean, renewable, green and reliable energy source
  • Dusk-to-dawn operation with photocell automatic control
  • Minimum 5 days autonomy without sunshine (20 days optional)
  • Recyclable batteries with minimal environmental impact
  • IP68 protection standard with full sealing structure
Technical Specifications
Description Parameter
Model AH-LS-C1
Standard IALA
Visible Distance Up to 3 Nautical Miles
Working Mode Flashing mode or Steady-burning mode
Light Source LED
Light Intensity 15cd (3NM), 35cd (4NM)
Vertical Degree 10°
Horizontal Degree 360°
Service Life of LED 100,000 hours
Operating Voltage DC12V
Battery Capacity 12V
Autonomy At least 5 days (Option 20 days)
Overall Size (mm) 220×220×233
Installation Size 190×190×Φ12
Weight 2.5g
Emitting Color Red, Green, Yellow (Amber), Blue or White
Ambient Temperature -55℃ to +60℃
Wind Load 80m/s
Control Way Photocell automatic operation
Optional Adjustable 256 light characters

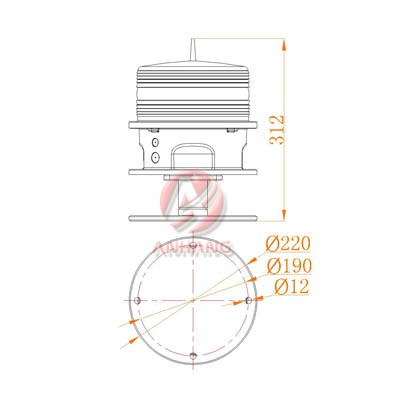

Installation Drawing
Solar Powered LED Aviation Obstruction Light with IP68 Rating and 360 Beam Angle for Marine Navigation
Company Information
Shenzhen Anhang Technology Company Limited is a high-technology enterprise specializing in research, production, sales, and after-sales services for Aviation Obstruction Lights, Aircraft Warning Lights, Helipad Lights, LED Marine Lanterns, LED Bulbs, and Aircraft Warning Spheres. As a domestic market leader in navigation lights and supporter of green and safe emissions, our products are widely used in civil airports, helipads, communication towers, factories, power plant chimneys, television towers, ports, bridges, high-rise buildings, and marine buoyage.
Website: www.annhung.com | www.ahicao.com

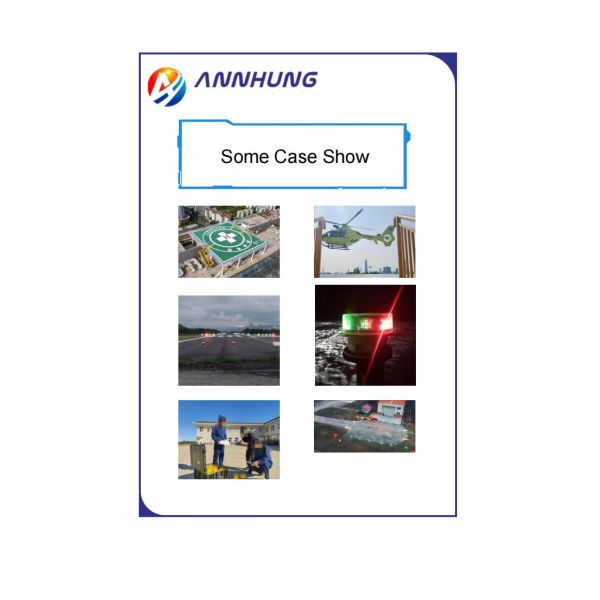

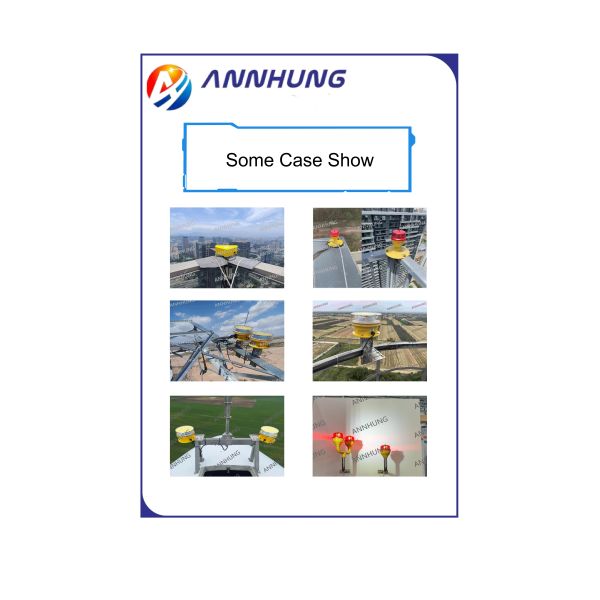

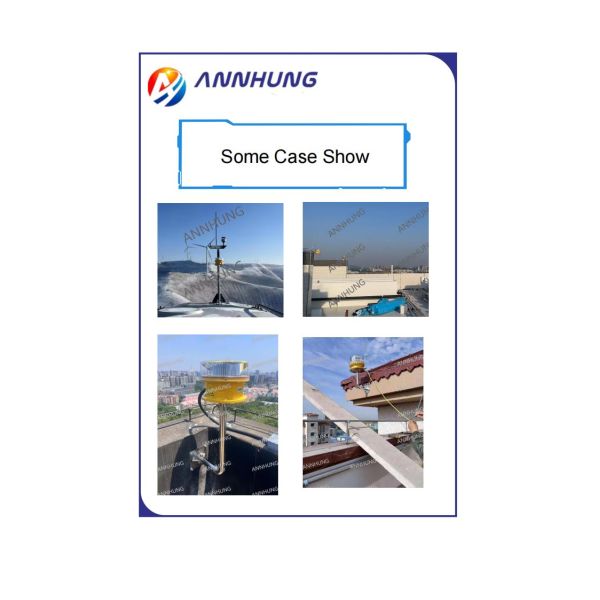

Project Case Studies
Solar Powered LED Aviation Obstruction Light with IP68 Rating and 360 Beam Angle for Marine Navigation Solar Powered LED Aviation Obstruction Light with IP68 Rating and 360 Beam Angle for Marine Navigation Solar Powered LED Aviation Obstruction Light with IP68 Rating and 360 Beam Angle for Marine Navigation
