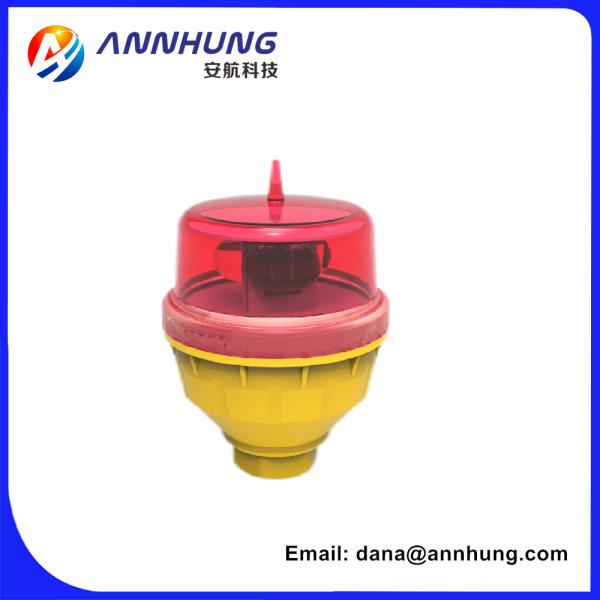

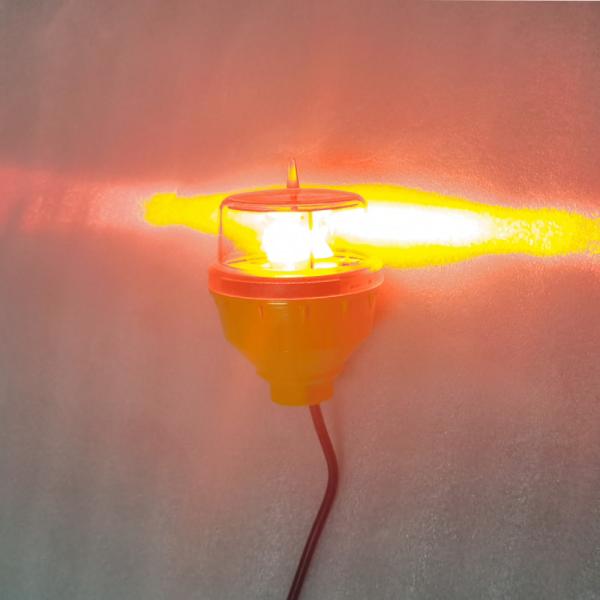

ANNHUNG AH-LI-B2 LED Aviation Obstruction Light 32.5cd Red 100,000h
ANNHUNG AH-LI-B2 LED Aviation Obstruction Light 32.5cd Red 100,000h
ANNHUNG AH-LI-B2 LED Aviation Obstruction Light 32.5cd Red 100,000h
ANNHUNG AH-LI-B2 LED Aviation Obstruction Light 32.5cd Red 100,000h
Specifications
Brand Name :
ANNHUNG
Model Number :
AH-LI-B2
Place Of Origin :
China
Certification :
CE, ICAO
MOQ :
1
Price :
50-70USD
Payment Terms :
T/T,Western Union
Supply Ability :
3000pcs per month
Delivery Time :
3-15days
Packaging Details :
Carton
Base Material :
Die-casting Aluminum
Light Source :
LED
Vertical Divergence(degrees) :
≥10
Operating Voltage :
DC(12V, 48VDC) Or AC(110-240VAC) Or Others
Intensity(candela) :
≥32.5cd(type B),others Optional(10cd, 100cd,etc)
Available Colors :
Red
LED Life Experience(hours) :
>100,000
Dimension(mm) :
Φ90×130
Description

Product Description:

This Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.


Features:

  • Product Name: Aeronautical Obstruction Light
  • Weight(kg): 0.3
  • Available Colors: Red
  • Mounting: 3/4 Inch Pipe Thread As Standard. 1inch As Option
  • Body Material: Polycarbonate
  • Power(W): 2.5

Technical Parameters:

Parameter Value
Mounting 3/4 Inch Pipe Thread As Standard. 1inch As Option
Power(W) 2.5
Available Colors Red
Light Source LED
Operating Voltage DC(12V, 48VDC) Or AC(110-240VAC) Or Others
Dimension(mm) Φ90×130
Vertical Divergence(degrees) ≥10
Flash Characteristics Steady-burning/20/30/60 Adjustable
Weight(kg) 0.3
LED Life Experience(hours) >100,000

Applications:


AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.



When obstacle object is higher than 45m, AH-LI-B2 can be used with Medium-intensity or high-intensity obstruction light to indicate hazardous obstructions with a steady red safety light.



Customization:

Product Customization Services for the Aeronautical Obstruction Light:

Brand Name: ANNHUNG

Model Number: AH-LI-B2

Place Of Origin: China

Intensity(candela): ≥32.5cd(type B), others Optional(10cd, 100cd, etc)

Vertical Divergence(degrees): ≥10

Available Colors: Red

Horizontal Output(degrees): 360

Base Material: Die-casting Aluminum



Packing and Shipping:

Product Packaging:

The Aeronautical Obstruction Light is carefully packaged in a sturdy cardboard box to ensure safe transportation. The light is protected with foam padding to prevent any damage during shipping.

Shipping Information:

Once your order is placed, the Aeronautical Obstruction Light will be shipped within 1-2 business days. We use reliable shipping services to deliver the product to your doorstep quickly and securely.


FAQ:

Q: What is the brand name of this Aeronautical Obstruction Light product?

A: The brand name of this product is ANNHUNG.

Q: What is the model number of this Aeronautical Obstruction Light product?

A: The model number of this product is AH-LI-B2.

Q: Where is this Aeronautical Obstruction Light product manufactured?

A: This product is manufactured in China.

Q: What type of obstruction light is the ANNHUNG AH-LI-B2 model?

A: The ANNHUNG AH-LI-B2 model is an aeronautical obstruction light.

Q: What is the recommended application for the ANNHUNG AH-LI-B2 Aeronautical Obstruction Light?

A: The recommended application for the ANNHUNG AH-LI-B2 Aeronautical Obstruction Light is for marking obstructions on structures within the aviation industry.
