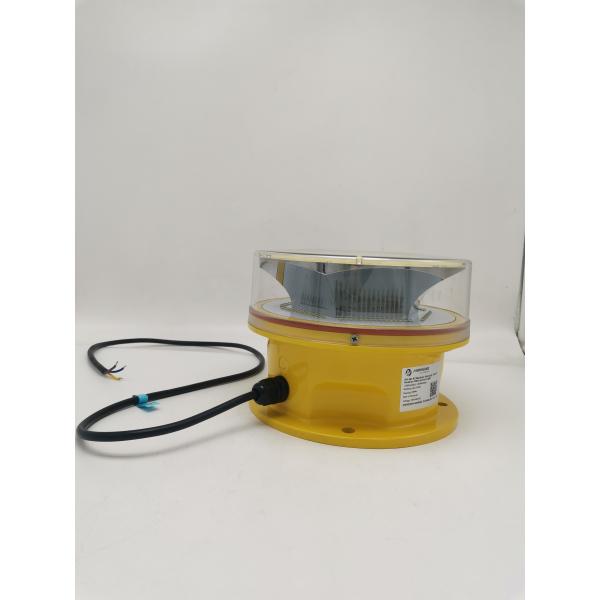

60FPM GPS Sync LED Aviation Obstruction Light with UV Polycarbonate for Medium Intensity Aircraft Warning
60FPM GPS Sync LED Aviation Obstruction Light with UV Polycarbonate for Medium Intensity Aircraft Warning
60FPM GPS Sync LED Aviation Obstruction Light with UV Polycarbonate for Medium Intensity Aircraft Warning
60FPM GPS Sync LED Aviation Obstruction Light with UV Polycarbonate for Medium Intensity Aircraft Warning
Specifications
Brand Name :
Annhung
Model Number :
AH-MI/A2
Certification :
CE, RoHS,ICAO
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,Western Union,D/P
Supply Ability :
1000pieces for one month
Delivery Time :
7-15work days
Packaging Details :
Carton
Price :
9999
Colors :
White
Intensity(cd) :
≥2000cd(Night), ≥20000cd(Daytime)
Vertical Divergence(degrees) :
3
Flash Characteristics :
20-60FPM - Type A (factory setting: 20FPM)
Mounting :
190×190×θ12
Dimension(mm) :
229×229×168
Description
60FPM GPS Sync LED Aircraft Warning Lights Medium Intensity UV Polycarbonate
Medium-intensity LED Aviation Obstruction Light Built in photocell GPS sync

This LED Medium-intensity Aviation Obstruction Light flashes white color and is designed for marking the top of obstacles with heights exceeding 105 meters.
Compliance
  • ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A Obstruction Light
  • FAA L-865
  • CAAC MH6012-2015 Aviation obstruction light, MH 5001-2013 Aerodrome technical standards
Features
Electrical
  • CREE ultra high intensity LED light source for reduced power consumption and maintenance compared to incandescent or halogen lamps
  • Power supply options: DC (12V, 24V, 48V) or AC (110-240VAC)
  • Unique design with UV protected polycarbonate reflector for optimal light convergence
  • UV protection with powder coated bright yellow base for enhanced visibility
  • Die-casting aluminum base material with strong corrosion resistance and shock/vibration protection
System Design
  • Built-in photocell for day/night operation (dusk to dawn)
  • Surge and lightning protection
  • Integrated GPS device for synchronous flashing
Optional Features
  • Dry contact alarm output for remote monitoring
  • Infrared LED for pilot NVG (Night Vision Goggle) compatibility
  • IOT Monitoring capabilities
Applications
The AH-MI-A2 medium-intensity light is used on top of high-rise buildings, high chimneys, marking towers (Telecom, GSM, Microwave & TV), high poles, tower cranes, wind turbines, and other structures where obstacle height ranges from 105-150 meters. Typically works in conjunction with low/medium intensity lights installed at lower positions.
Technical Specifications
Description Parameter
Light Source CREE high intensity LED
Horizontal Output 360 degrees
LED Life Expectancy >100,000 hours
Operating Voltage DC (12V, 48VDC) or AC (110-240VAC) or others
Instantaneous Power 600W
Average Power ≤13W (20fpm)
Circuit Protection Integrated
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Weight 3.5 kg
Humidity 10%-95% RH (No condensation)
Wind Speed 240 Km/h
Waterproof IP66
FAA L-865
Company Information
Anhang Technology (HK) Company Limited is a high technology enterprise specializing in research, production, sales, and after-sales services for Aviation Obstruction Lights, Aircraft Warning Lights, Helipad Lights, LED Marine Lanterns, LED Bulbs, and Aircraft Warning Spheres. We are a domestic market leader in navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factories, Power Plant Chimneys, Television Towers, Ports, Bridges, High-rise buildings, and Buoyage in sea applications.

All products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration), and IALA (International Association of Lighthouse Authorities) standards. We proudly serve customers worldwide.
