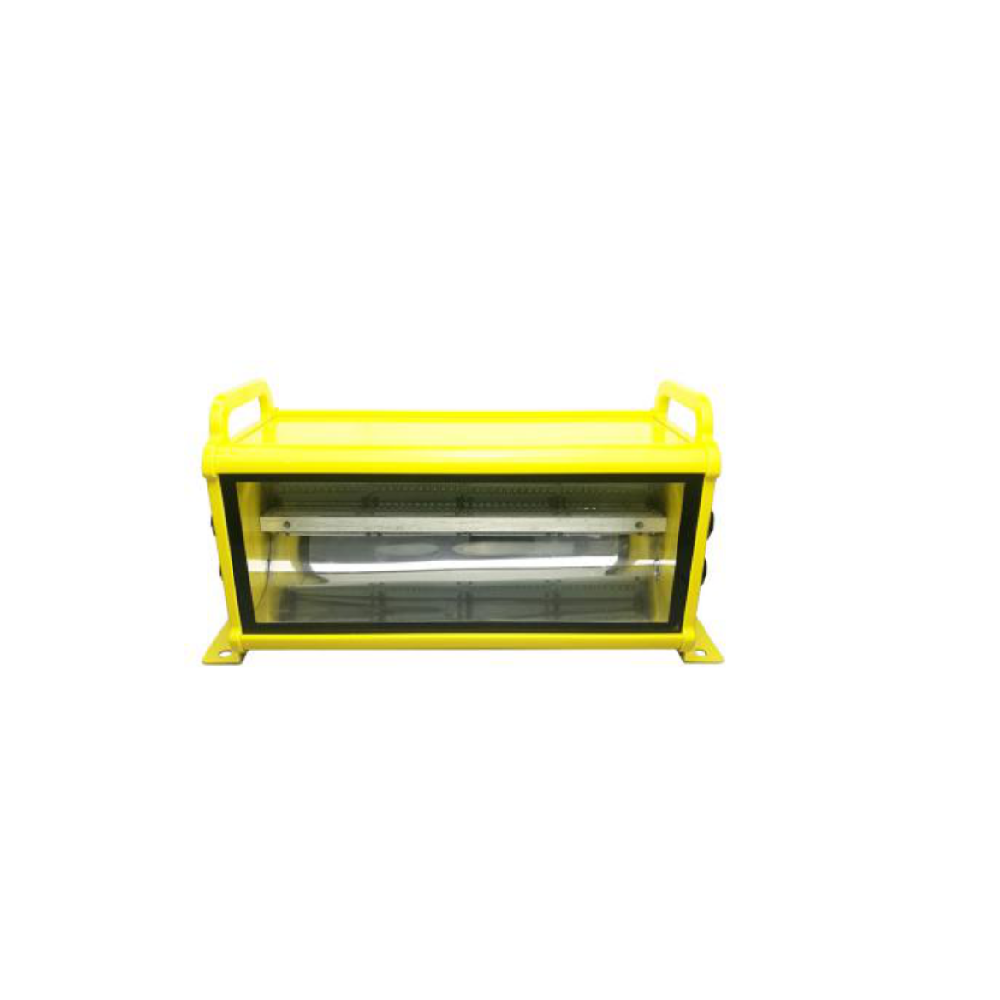

ICAO High Intensity Type A LED Aviation Obstruction Light with Polycarbonate Body and IP66 Rating for ≥200,000cd Output
ICAO High Intensity Type A LED Aviation Obstruction Light with Polycarbonate Body and IP66 Rating for ≥200,000cd Output
Specifications
Brand Name :
ANNHUNG
Model Number :
AH-HI-A0
Certification :
ICAO, CAAC
Place of Origin :
Shenzhen, China
MOQ :
1 Piece
Price :
9999999
Payment Terms :
T/T,Western Union
Supply Ability :
1000 Pieces per Month
Delivery Time :
3-15 days
Packaging Details :
One piece six sides build in foam carton
Solar Module Type :
Mono crystalline Silicon
Body Material :
Polycarbonate
Intensity(cd) :
≥200,000cd
Horizontal Output(degrees) :
360
Vertical Divergence(degrees) :
3-7
IP Rating :
IP66
Description
ICAO High Intensity Type A LED Aviation Obstruction Light
Professional LED aviation obstruction light with polycarbonate body and IP66 rating, designed for maximum visibility and durability in demanding environments.
ICAO High Intensity Type A LED Aviation Obstruction Light with Polycarbonate Body and IP66 Rating for ≥200,000cd Output
Technical Specifications
Light Characteristics
Light Source CREE high intensity LED
Available Colors White
Intensity (cd) ≥200,000cd (Daytime) (ICAO Type A)
Optional: 270,000cd±25% (Daytime) (FAA L-856)
≥20,000cd (Twilight)
≥2,000cd (Night)
Horizontal Output 90 degrees
Vertical Divergence 3-7 degrees
Flash Characteristics 40-60 FPM (40fpm factory setting, others optional)
Operation Mode 24 hours operation, 3 different modes
LED Life Experience >100,000 hours
Electrical Characteristics
Operating Voltage DC (48VDC) or AC (110, 240V) or others
Average Power ＜76W (40fpm)
Circuit Protection Integrated
Physical Characteristics
Body Material Polycarbonate
Base Material Powder coated die-casting aluminum
Mounting 470×100×θ12
Dimension 508×186×236 mm
Weight 10 kg
Product Life Expectancy 10 years Plus
Environmental Factors
Humidity 0%-100%
Temperature -55˚C ~ 70˚C
Wind Speed 80 m/s
Waterproof IP66
Compliance Standards
ICAO Annex 14 Volume 1, 'Aerodrome Design and Operations' Eighth edition 2018, table 6.3 High-intensity Type A White Obstacle Light
FAA L-856, L-857
Available Options
  • NVG (Night Vision Goggles) compatible LED
  • Dry Contact alarm (NO COM NC)
  • User adjustable flashing rate (40, 50, 60)
  • Solar power system
Packing & Delivery
Plastic bag with paper carton.
Company Profile
ShenZhen Anhang Technology Company Limited is a high technology enterprise engaging in research, development, production, sales and after-sales services for a wide range of Aviation Obstruction Lights, Aircraft Warning Lights, Helipad Lights, LED Marine Lanterns, LED Bulbs and Aircraft Warning Spheres. We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factories, Power Plant Chimneys, Television Towers, Ports, Bridges, High-rise buildings, and Buoyage in sea. All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA (International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
