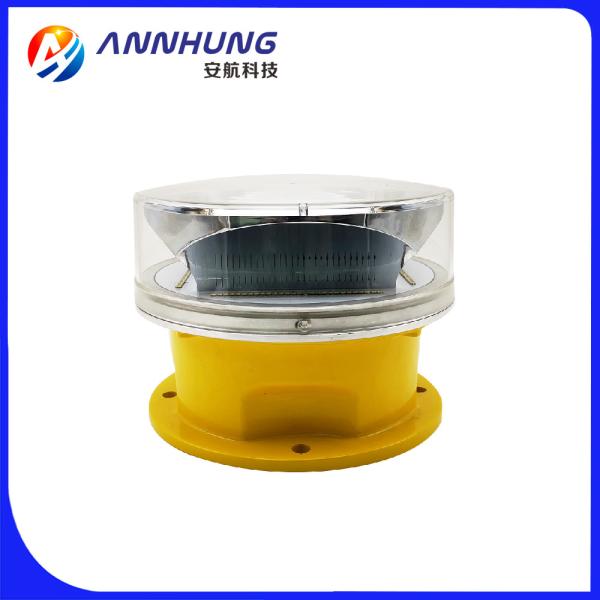

Medium Intensity Solar Obstruction Light with CREE High Intensity LED Dusk-to-Dawn Operation and UV Protected Polycarbonate Lens
Medium Intensity Solar Obstruction Light with CREE High Intensity LED Dusk-to-Dawn Operation and UV Protected Polycarbonate Lens
Medium Intensity Solar Obstruction Light with CREE High Intensity LED Dusk-to-Dawn Operation and UV Protected Polycarbonate Lens
Medium Intensity Solar Obstruction Light with CREE High Intensity LED Dusk-to-Dawn Operation and UV Protected Polycarbonate Lens
Medium Intensity Solar Obstruction Light with CREE High Intensity LED Dusk-to-Dawn Operation and UV Protected Polycarbonate Lens
Medium Intensity Solar Obstruction Light with CREE High Intensity LED Dusk-to-Dawn Operation and UV Protected Polycarbonate Lens
Specifications
Brand Name :
ANNHUNG
Model Number :
AH-MI-B2
Certification :
CE, ICAO
Place of Origin :
China
MOQ :
1
Price :
88888
Payment Terms :
T/T,Western Union
Supply Ability :
1000 pieces per month
Delivery Time :
3-15 days
Packaging Details :
1PC IN 1CTN
Horizontal Output(degrees) :
360
Vertical Divergence(degrees) :
3
Operation Mode :
Dusk-to-dawn Automatically as standard. 24hours operation as option
LED Life Experience(hours) :
>100,000
Operating Voltage :
DC(12V, 48VDC) or AC(110-240VAC)
Power(W) :
10
Circuit Protection :
Integrated
Lightning surge :
IEC61000-4-5 L- N ±3kV IEC61000-4-5 L- PE ±6kV IEC61000-4-5 N- PE ±6kV
Flash Characteristics :
20-60 flashes per minute(factory setting: 20fpm)
Description
Medium Intensity Solar Obstruction Light, High Chimney Aircraft Warning Lights
This Medium-intensity Type B L864 Aircraft safety warning light features flashing red color and is designed for marking the top of obstacles with heights between 45 to 105 meters. Ultra high intensity CREE LED light source ensures long life experience and optimal performance. The self-designed lens converges light to a very small vertical divergence of 3°, making it fully compliant with ICAO standards.
Product Overview
Compliance Standards
ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light
FAA L-864
Electrical Features
  • CREE ultra high intensity LED light source
  • Power supply: DC (12-48VDC) or AC (110-240VAC)
  • Reduced power consumption and maintenance
Physical Design
  • Unique design with UV protected polycarbonate lens
  • Powder coated bright yellow color base
  • Die casting aluminum base material
  • Special valve for temperature control
System Design
  • Built-in photocell for day/night operation
  • Surge and lightning protection
  • Energy efficient and safe operation
Optional Features
  • Alarm contact for remote monitoring
  • User adjustable flashing rate (20, 30, 40, 60 flashes/minute)
  • GPS synchronization
Applications
AH-MI-B2 medium-intensity Aviation obstruction warning light is used on high-rise buildings, high chimneys, marking towers (Telecom, GSM, Microwave & TV), high poles, tower cranes, wind turbines, and other obstacles with heights of 45-105 meters. Typically works with low intensity lights installed on lower positions.
Technical Specifications
Specification AH-MI-B2 LED Medium-intensity Type B L864
Light Source CREE high intensity LED
Available Colors Red (Other colors optional)
Intensity (cd) ≥2000cd
Horizontal Output 360°
Vertical Divergence 3°
Flash Characteristics 20-60 flashes per minute (factory setting: 20fpm)
Operation Mode Dusk-to-dawn automatically as standard
LED Life Experience >100,000 hours
Operating Voltage DC (12V, 48VDC) or AC (110-240VAC) or others
Instantaneous Power 40W
Average Power 3W (20fpm)
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Dimension (mm) 229×229×168
Weight (kg) 2.5
Product Life Expectancy 5 years Plus
Ambient Temperature -40°C to 55°C
Storage Temperature -55°C to 70°C
Humidity 10%-95%RH (No condensation)
Wind Speed 240Km/h
Waterproof IP66
Compliance ICAO Annex 14 Volume 1, FAA L-864
Available Options
  • Flashing rate adjustment
  • NVG (Night Vision Goggles) compatible LED
  • Dry contact alarm (NO COM NC)
  • GPS sync flashing
  • RS485 communication
  • Bird deterrent spike
