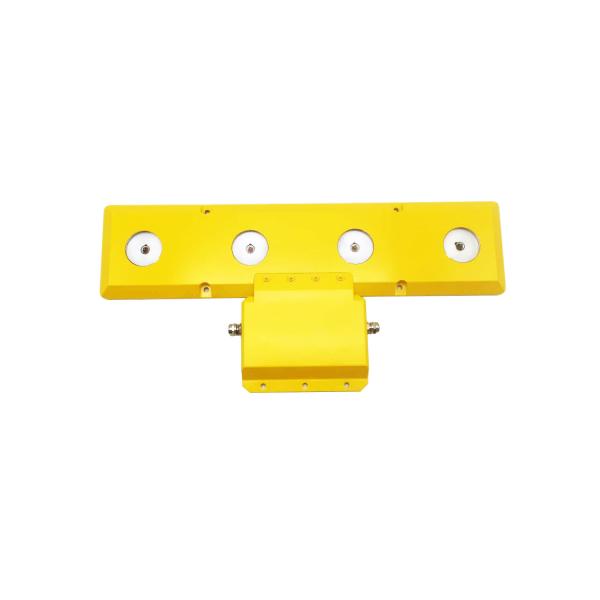

3W IP68 Waterproof LED Helideck Circle H Light for Helipad Landing ICAO Annex 14 Compliant
3W IP68 Waterproof LED Helideck Circle H Light for Helipad Landing ICAO Annex 14 Compliant
3W IP68 Waterproof LED Helideck Circle H Light for Helipad Landing ICAO Annex 14 Compliant
3W IP68 Waterproof LED Helideck Circle H Light for Helipad Landing ICAO Annex 14 Compliant
Specifications
Flash Characteristics :
Steady burning
Available Colors :
Green, Yellow (others are optional)
Light source :
LED
Brand Name :
ANNHUNG
Model Number :
AH-HP-H
Certification :
ISO9001, CE, ROHS, Ex
Place of Origin :
China
MOQ :
1pc
Price :
N/A
Payment Terms :
L/C,Western Union,,T/T
Supply Ability :
1000pcs/month
Delivery Time :
14days
Base Material :
Powder-coated Die-casting aluminum
Operating Voltage :
DC(12-48VDC) or AC(110-240VAC)
Compliance :
ICAO Annex 14 Volume I ,Appendix I, CAP 437
Name :
Helideck Circle-H Light Helipad Lighting Panel Platform Heliport Ligting, Helipad Landing Lights
Light intensity :
2-12° ≤60cd 12-20°≤30cd 20-90°≤10cd
Description
3W Helideck Circle H Helipad Landing Lights IP68 Waterproof

Helideck Circle-H Light is designed for heliport identification marking "H" and the circle. The low-profile design (＜25mm thickness) enables easy installation and suitability for all types of heliports.

Compliance
  • ICAO Annex 14 Volume I, Appendix I Nov. 2016, figure A1-1-Colors for aeronautical Ground lights
  • CAP 437
Features
Electrical
  • LED light source for reduced power consumption and maintenance - 95% less power than equivalent incandescent lights
  • Power supply options: AC (110-240VAC) or DC48V
Physical
  • Unique polycarbonate lens design for light convergence with corrosion resistance and UV protection
  • Integrated cable connection system
  • UV protection powder-coated bright yellow base for enhanced visibility
  • Die-cast aluminum base material for strong corrosion resistance, shock and vibration protection
  • Customized cables with vulcanized cable termination protection and captive connection screws
  • Fault monitoring with fail indication via controller
Optional
  • Infrared LED for pilot Night Vision Goggles (NVG) compatibility
  • Controller for power supply management and light control
  • VHF pilot to ground remote control
  • Marine treatment available
3W IP68 Waterproof LED Helideck Circle H Light for Helipad Landing ICAO Annex 14 Compliant
Applications
  • Helipads and Heliports
  • Drilling rigs
  • Platforms
3W IP68 Waterproof LED Helideck Circle H Light for Helipad Landing ICAO Annex 14 Compliant
Specifications
Specification AH-HP-H Helideck Circle-H Light
Light Characteristics
Light Source LED
Available Colors Green, Yellow (others are optional)
Effective Intensity (cd) 2-12° ≤60cd
12-20°≤30cd
20-90°≤10cd
Flash Characteristics Steady burning
Operation Mode 24 hours operation
LED Life Experience (hours) >100,000
Electrical Characteristics
Operating Voltage DC (12V, 48VDC) or AC (110-240VAC)
Power (W) 3
Circuit Protection Integrated
Physical Characteristics
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Dimension (mm) 235×500×23
Weight (kg) 3.83
Product Life Expectancy Average 5 years
Environmental Factors
Ambient Temperature (°C) -55℃~+70℃ (-25~70 operational)
Humidity 10~90%
Wind Speed 80m/s
Waterproof IP68
Compliance
ICAO ICAO Annex 14 Volume I, Appendix I
Nov. 2016, figure A1-1-Colors for aeronautical ground lights
Download Datasheet: https://www.ledaviationobstructionlight.comAH-HP-H Helideck Circle-H Light.pdf
