IP68 Waterproof LED Aviation Obstruction Light with High Transmittance and Thermal Stability for Aircraft Warning
IP68 Waterproof LED Aviation Obstruction Light with High Transmittance and Thermal Stability for Aircraft Warning
Specifications
Wind rating :
80m/s
Protection standard :
IP66
Model Number :
AH-MI-B2(L)
Brand Name :
ANNHUNG
Certification :
ICAO
Place of Origin :
Shenzhen, China
MOQ :
1 pc
Supply Ability :
1000 Pieces Per Month
Packaging Details :
paper carton 1 piece/box
Emitting color :
Red
Payment Terms :
T/T,Western Union,
Intensity(cd) :
≥2000cd
Light source :
LED
Weight :
2.5KG
Price :
666666
Delivery Time :
3-15 days
Operating Voltage :
DC(12V, 48VDC) or AC(110-240VAC) or others
LED Service life :
≥ 100,000hours
Description
IP68 Red LED Aviation Obstruction Light High Transmittance Thermal Stability
High-performance aviation obstruction light designed for reliable operation in demanding environments with excellent thermal stability and light transmission.
Key Advantages
  • Independent design with integrated photocell, power supply flasher and monitoring
  • Integrated automatic flash synchronization beam optical design
  • High borosilicate glass material with good thermal stability and high transmittance
  • Built-in circuit protection for LED, ensuring extreme reliability and cost savings
  • Anti-knock and anti-corrosion construction for use in rugged environments
  • Special red LED color for aviation obstruction with typical lifetime exceeding 100,000 hours
  • Resistant to heavy rain or storms
  • Free maintenance and aluminum alloy material construction
  • Low power consumption and low cost of ownership
Applications
IP68 Waterproof LED Aviation Obstruction Light with High Transmittance and Thermal Stability for Aircraft Warning
This series of products can be used alone on top of high-rise buildings, high chimneys, marking towers (Telecom, GSM, Microwave & TV), high poles, tower cranes, wind turbines, etc., with heights between 45m and 105m. When structures exceed 105m, these products can be used with Medium-intensity Type A or high-intensity obstruction lights to mark potentially hazardous obstructions to air traffic with flashing red safety lights.
Technical Specifications
SPECIFICATIONS AH-MI-B2(L) Medium-intensity Double Aviation Obstruction Light
Light Characteristics
Light Source LED
Available Colors Red
Intensity (cd) 2,000cd ±25%
Horizontal Output (degrees) 360
Vertical Divergence (degrees) 3
Flash Characteristics Flashing mode (20 to 60 times/minute)
Operation Mode Dusk-to-dawn automatically as standard
LED Life Experience (hours) ≥100,000
Electrical Characteristics
Supply Voltage DC (12V, 48VDC) or AC (110-240VAC) or others
Power (W) 40
Temperature Range (℃) -40~60
Physical Characteristics
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Mounting (mm) 190×190×θ12
Dimension (mm) 236
Weight (kg) 2.5
Product Life Expectancy 5 years plus
Environmental Factors
Humidity 10%-95%RH (No condensation)
Wind Speed 80m/s
Waterproof IP66
Compliance
ICAO Annex 14 Volume 1, 'Aerodrome Design and Operations' Seventh edition 2016, table 6.3 Medium-intensity Type B Red Obstacle Light
FAA L-864
Dimension Drawing
IP68 Waterproof LED Aviation Obstruction Light with High Transmittance and Thermal Stability for Aircraft Warning

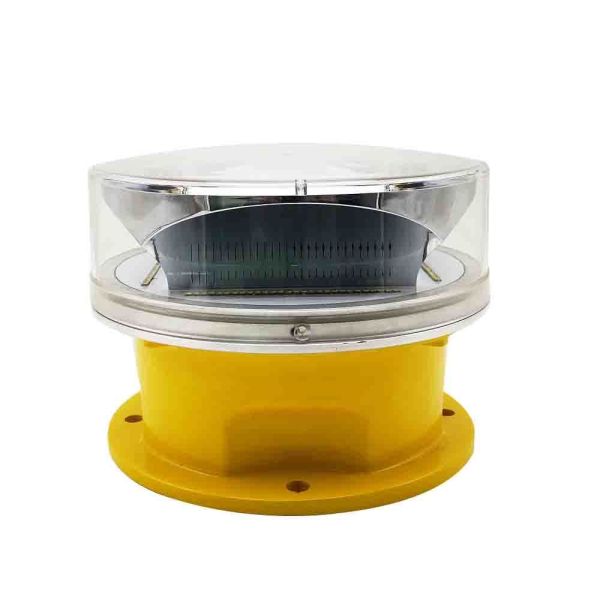

Product Image
IP68 Waterproof LED Aviation Obstruction Light with High Transmittance and Thermal Stability for Aircraft Warning
