L864 Solar Powered Aviation Obstruction Light with Strong Anticorrosion and UV Protection for Medium-intensity Type B Applications
L864 Solar Powered Aviation Obstruction Light with Strong Anticorrosion and UV Protection for Medium-intensity Type B Applications
Specifications
Brand Name :
ANNHUNG
Model Number :
AH-MS-B3
Certification :
ICAO
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
888888
Payment Terms :
T/T,Western Union,Money Gram
Supply Ability :
1000 Pieces Per Month
Delivery Time :
3-15 days
Packaging Details :
paper carton 1 piece/box
Color :
Red
Products name :
Medium-intensity Type B Solar Aviation Obstruction Light
Overall Size(mm) :
450×400×370
Weight :
7KG
Working mode :
Flash mode (20-60times/minute)
Solar Module Type :
Mono crystalline Silicon
Battery type :
Lithium ion battery
Nominal Voltage (V) :
11.1V
Description

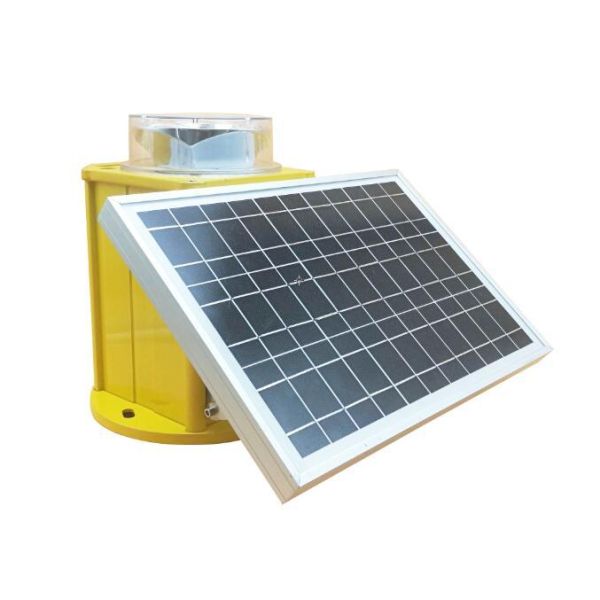

L864 Solar Powered Aviation Lights With Strong Anticorrosion And UV Protection
Medium-intensity Type B L864 Solar Aviation Obstruction Light

Advanced solar-powered aviation obstruction light designed for reliable performance in demanding environments.

Key Advantages
  • International advanced solar panel with over 10 years service life
  • Comprehensive protection: voltage short circuit, overload-voltage, floating charge and temperature
  • Low power consumption professional flash switch
  • International-advanced cold LED with low power consumption, high brightness and 100,000-hour service life
  • PC material provides strong impact resistance
  • Strong anticorrosion and UV protection
  • Lightning-protection function
  • Automatic night operation using solar panel technology equivalent to photocell sensor
Product Description

This single solar light operates automatically at night (when ambient brightness is below 50cd/m²) and turns off during daylight hours using solar panel technology equivalent to a photocell sensor.

Application
L864 Solar Powered Aviation Obstruction Light with Strong Anticorrosion and UV Protection for Medium-intensity Type B Applications

This single solar light is installed on the fuselage and automatically controls flashing when ambient brightness falls below 50 cd/m². The side battery box can be opened for convenient maintenance.

Technical Specifications
Specifications AH-MS-B3 Medium-intensity Type B Solar Aviation Obstruction Light
Light Characteristics
Light Source LED
Available Colors Red
Intensity (cd) 2,000cd ±25%
Horizontal Output (degrees) 360
Vertical Divergence (degrees) 3
Flash Characteristics Flash mode (20-60 times/minute)
Operation Mode Dusk-to-dawn automatically as standard
LED Life Experience (hours) >100,000
Electrical Characteristics
Operating Voltage DC 12V (Solar powered), recyclable batteries with environmental protection and long life
Power (W) 20W
Circuit Protection Integrated
Temperature Range (°C) -40 to 60
Physical Characteristics
Body Material UV protected Polycarbonate
Base Material Die casting aluminum
Mounting (mm) 200×200×M10

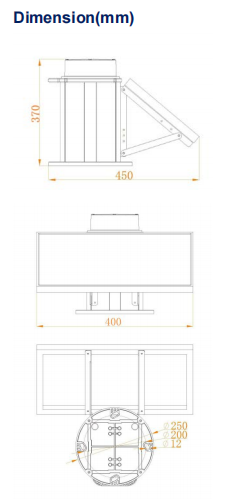

Overall Size (mm) 450×400×370
Weight (kg) 7
Product Life Expectancy >10 years (Battery 3-5 years)
Environmental Factors
Humidity 0-90%
Wind Speed 80m/s
Waterproof IP66
Compliance
ICAO Annex 14 Volume 1, 'Aerodrome Design and Operations' Seventh edition July 2016, table 6.3 Medium-intensity Type B Obstacle Light L-864
FAA L-864
Product Images
L864 Solar Powered Aviation Obstruction Light with Strong Anticorrosion and UV Protection for Medium-intensity Type B Applications L864 Solar Powered Aviation Obstruction Light with Strong Anticorrosion and UV Protection for Medium-intensity Type B Applications
