10mm Round Curved LED Screens , High Brightness Outdoor Full Color LED Display
10mm Round Curved LED Screens , High Brightness Outdoor Full Color LED Display
10mm Round Curved LED Screens , High Brightness Outdoor Full Color LED Display
10mm Round Curved LED Screens , High Brightness Outdoor Full Color LED Display
10mm Round Curved LED Screens , High Brightness Outdoor Full Color LED Display
10mm Round Curved LED Screens , High Brightness Outdoor Full Color LED Display
10mm Round Curved LED Screens , High Brightness Outdoor Full Color LED Display
10mm Round Curved LED Screens , High Brightness Outdoor Full Color LED Display
Specifications
Brand Name :
SRYLED
Model Number :
SRY - OF - P10
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1sqm
Price :
US$ 770 ~ 850 / Square Meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1,000 Square Meter per Month
Delivery Time :
10 - 12 Work Days
Packaging Details :
Wooden Case(wooden case size based on cabinet size, 2cabinets in 1 wooden case)
Pixel Pitch :
10mm
LED Encapsulation :
SMD3535
Module Size :
320mm x 160mm
Drive Duty :
1/4scan Constant Current
Waterproof :
IP65
Brightness :
>6,500nits
Certificate :
CE, LVD, RoHS
Warranty :
2 Full Years
Description

10mm Round Curved LED Screens , High Brightness Outdoor Full Color LED Display

Decription:

Outdoor Round Curved 10mm SMD3535 High Brightness LED Full Color Display Screen. It overcome the problems if the screen needs to be install on corner place.
And the P10, it controls the LEDs' display mode via constance current IC. And shows different colors via controlling brightness changes of the three-primary lamps.

Features:
1. Best viewing distance: 10m - 100M

2. Best viewing angle: H: 120°, V: 120°

3. Screen working temperature: -20ºc - +60ºc.

4. Screen working humidity: 10% - 95%.

Specificition:

Pixel Pitch

10mm

Pixel Density

10,000dots/sqm

Color Configuration

1R1G1B 3in1

LED Encapsulation

SMD3535

Module Size

320mm x 160mm

Module Resolution

32dots x 16dots

Drive Duty

1/4 Constant Current

Brightness

>6,500nits

Viewing Distance

10m - 100m

Viewing Angle

H: 120°, V: 120°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

5V - 40A, AC110V/ 220V/ 50HZ

Max Power Consumption

860W/sqm

Ave. Power Consumption

260W/sqm

Storage Temperature

-40℃ - +80℃

Working Temperature

-20℃ - +60℃

Blind Spot Rate

<1/10,000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof

IP65

Operating Humidity

10% - 95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS

Application:

Applies to showing characters, graphics, images, animations and videos on top of the building corner.

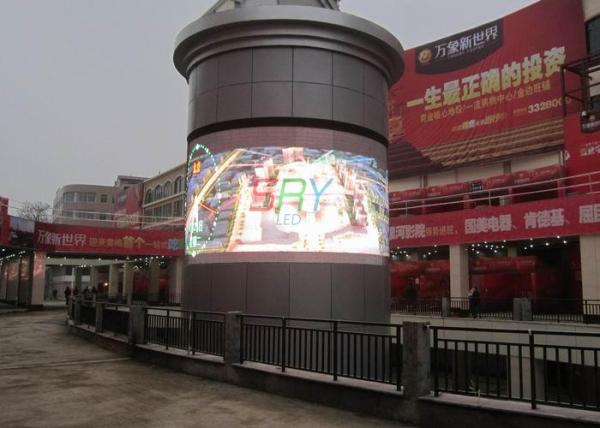

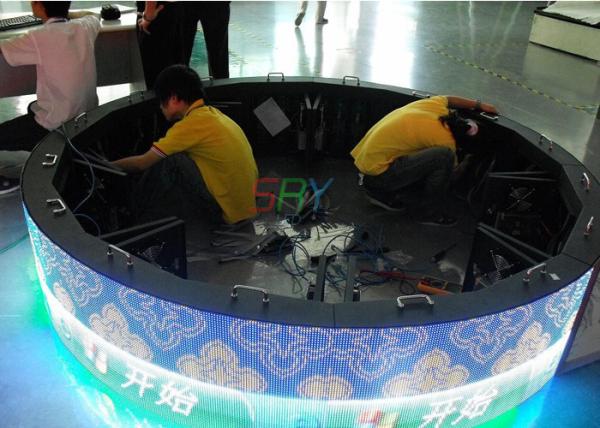

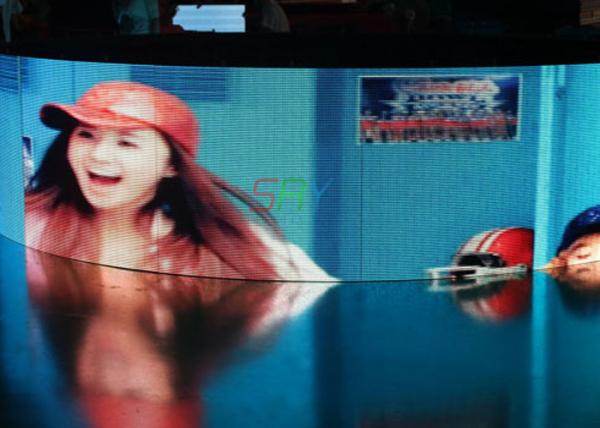

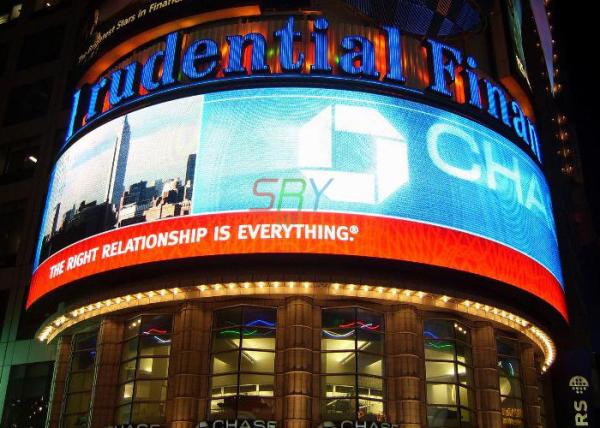

Applications Pictures:

10mm Round Curved LED Screens , High Brightness Outdoor Full Color LED Display

10mm Round Curved LED Screens , High Brightness Outdoor Full Color LED Display

10mm Round Curved LED Screens , High Brightness Outdoor Full Color LED Display

10mm Round Curved LED Screens , High Brightness Outdoor Full Color LED Display

Competitive Advantages:

1. Wider viewing angle

2. High cost-effective

3. Good uniformity

4. High brightness
