Specifications
Brand Name :
SRYLED
Model Number :
SRY-OF-P16
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
4pcs
Price :
US$ 55 ~ 60 / PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
3,000 PCS per Month
Delivery Time :
5-8 work days
Packaging Details :
Free Charge Carton(20pcs in one carton)
Pixel Pitch :
16mm
LED Encapsulation :
DIP346
Module Size :
320mm x 320mm
Drive Duty :
Static Constant Current
Module Weight :
1.65kg
Waterproof :
IP65
Brightness :
8,000cd/sqm
Warranty :
2 full years
Description

P16 Outdoor LED Display Module 8000 cd / sqm Brightness Static Constant Current

Decription:

Outdoor P10 Front Maintenance Static Full Color 320mm x 320mm Waterproof LED Module. The cabinet with this kind modules, its thickness can be designed thinner than traditional cabinets. It saves raw materials. During working if the modules malfunctioning, manitenance be comes more convenient. It saves time in maintaining. Because of the modules are easy to install and uninstall.
Features:
1. High brightness: >8,000cd/sqm

2. Best viewing distance: 16m ~ 160m

3. Best viewing angle: H: 120°; V: 70°

4. Max power consumption: 750W/sqm

Specificition:

Pixel Pitch

16mm

Pixel Density

3,906dots/sqm

Color Configuration

1R1G1B

LED Encapsulation

DIP346

Module Size

320mm x 320mm

Module Resolution

20dots x 20dots

Drive Duty

Static Constant Current

Brightness

>8,000nits

Viewing Distance

16m - 160m

Viewing Angle

H: 120°; V: 70°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

5V-20A, AC110V/ 220V/ 50HZ

Max Power Consumption

1,180W/sqm

Ave. Power Consumption

390W/sqm

Storage Temperature

-40℃~+80℃

Working Temperature

-20℃~+60℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof

IP65

Operating Humidity

10%~95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS

Application:

Supermarket, large scale shopping mall, exclusive agency, chain store, star rated hotel, restaurant, travel agency, pharmacy and etc outside wall mounted advertising use.

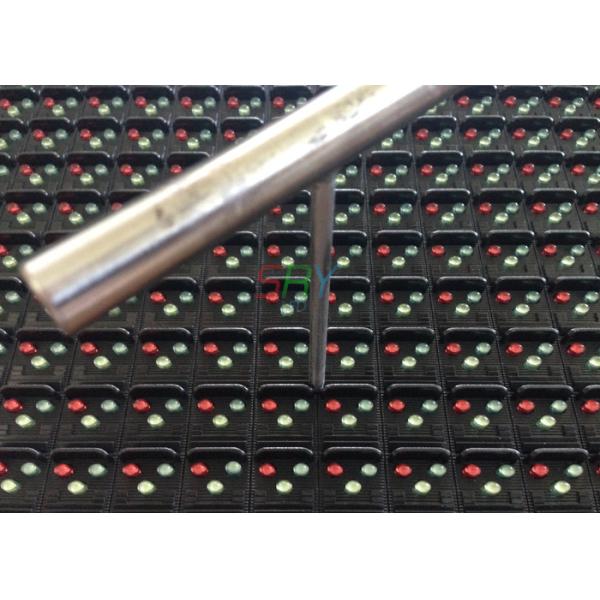

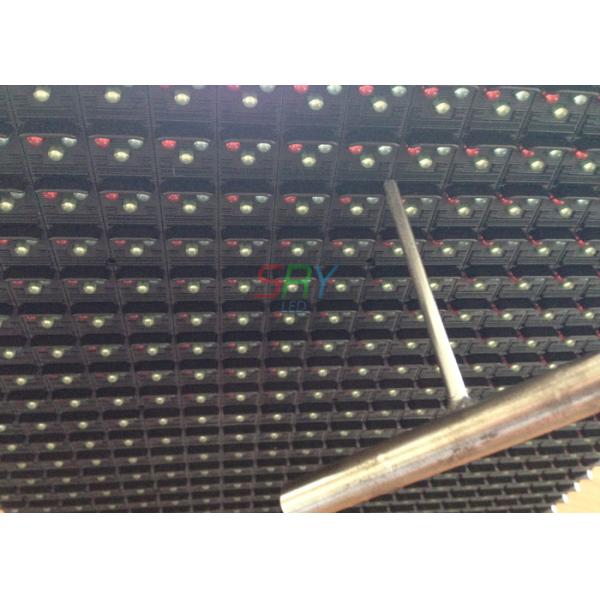

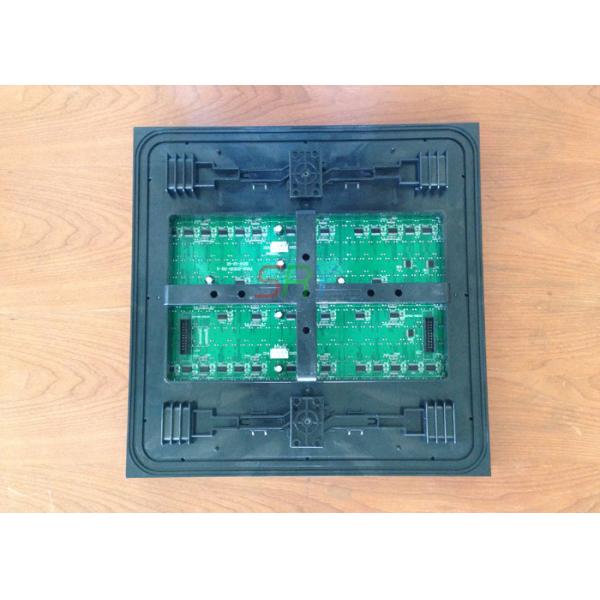

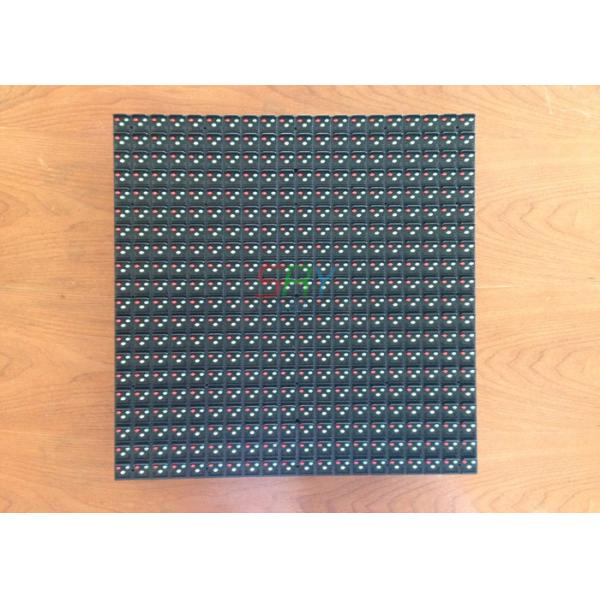

Module Pictures:

P16 Outdoor LED Display Module 8000 cd / sqm Brightness Static Constant Current

P16 Outdoor LED Display Module 8000 cd / sqm Brightness Static Constant Current

P16 Outdoor LED Display Module 8000 cd / sqm Brightness Static Constant Current

P16 Outdoor LED Display Module 8000 cd / sqm Brightness Static Constant Current

Competitive Advantages:

1. Front maintenance

2. Easy to install and uninstall

3. Two full yearrs warranty

4. ​CE, LVD, RoHS certified
