3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits
3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits
3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits
3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits
3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits
3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits
3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits
3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits
Specifications
Brand Name :
SRYLED
Model Number :
SRY - IF -P3
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
4pcs
Price :
US$ 16 ~ 17 / PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal
Supply Ability :
3,000 PCS per Month
Delivery Time :
5-8 work days
Packaging Details :
Free Charge Carton(80pcs in one carton)
Pixel Pitch :
3mm
LED Encapsulation :
SMD2121
Module Size :
192mm x 96mm
Drive Duty :
1/16scan Constant Current
Module Weight :
0.16kg
MTBF :
10,000hrs
Lifespan :
100,000hrs
Warranty :
2 full years
Description

3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits

Decription:

HD P3 Indoor Black LED SMD2121 Full Color 1/16scan 192mm x 96mm LED Module. It uses the newest technology to achieve customer's HD requests.

Features:
1. High refresh frequency
Using the latest technology to make the normal constant current(pure-drive) LED display has super high refresh frequency
2. Cabinet splice
Mobilize the modules ensure the cabinet seamless
3. High protection grade
Painting conformal coating to achieve moisture-proof, anti-corrosion, anti-mildew and anti-
electromagnetic capabilities

Specificition:

Pixel Pitch

3mm

Pixel Density

111,111dots/sqm

Color Configuration

1R1G1B 3in1

LED Encapsulation

 SMD2121

Module Size

192mm x 96mm

Module Resolution

64dots x 32dots

Drive Duty

1/16 Constant Current

Brightness

>1,500nits

Viewing Distance

3m - 30m

Viewing Angle

H: 120°; V: 120°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

5V-20A, AC110V/ 220V/ 50HZ

Max Power Consumption

360W/sqm

Ave. Power Consumption

180W/sqm

Storage Temperature

-40℃~+80℃

Working Temperature

-20℃~+60℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Operating Humidity

10%~95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS

Application:

Shopping plaza, museum, cinema, exhibition, hotel, meeting room, church and etc indoor LED display advertising use.

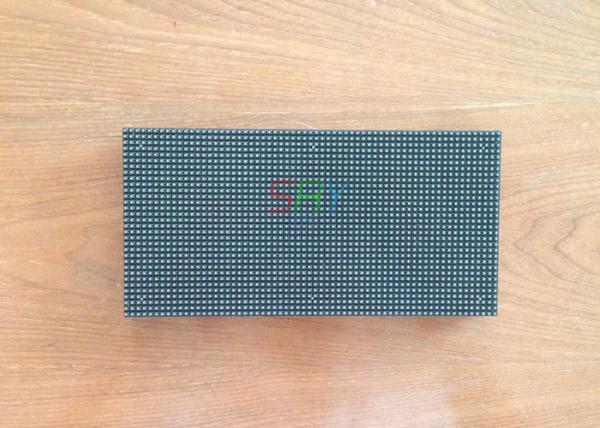

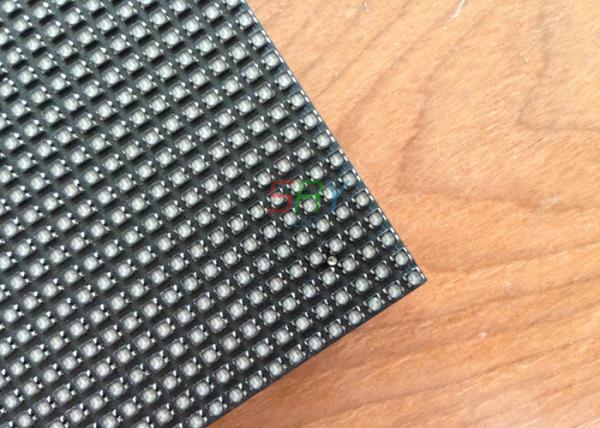

Module Pictures:

3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits

3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits

3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits

3mm RGB Digital LED Display Module Outdoor High brightness 7500 nits

Competitive Advantages:

1. High definition choice

2. High color fidelity

3. Well uniformity

4. Black LED lamps
