P6 Indoor Full Color Led Display Module 192mm X 192mm 1/16 Scan
P6 Indoor Full Color Led Display Module 192mm X 192mm 1/16 Scan
P6 Indoor Full Color Led Display Module 192mm X 192mm 1/16 Scan
P6 Indoor Full Color Led Display Module 192mm X 192mm 1/16 Scan
P6 Indoor Full Color Led Display Module 192mm X 192mm 1/16 Scan
P6 Indoor Full Color Led Display Module 192mm X 192mm 1/16 Scan
Specifications
Brand Name :
SRYLED
Model Number :
SRYLED - IFM - P6
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
10PCS
Price :
US$ 10.5 - 11 / PCS
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
5,000 PCS per Month
Delivery Time :
10 - 12 Work Days
Packaging Details :
Carton Case (carton case size depend on module quantity)
Pixel Pitch :
6mm
Color Configuration :
1R1G1B 3in1
LED Encapsulation :
SMD3528
Module Size :
192mm x 192mm
Module Weight :
0.45kg
Drive Duty :
1/16scan
Lifespan :
100,000hrs
Warranty :
2 Full Years
Description

P6 Indoor Full Color Led Display Module 192mm X 192mm 1/16 Scan

Decription:

P6 Indoor Full Color 192mm x 192mm LED Display Module, 1/16scan Module. The cabinet size can be 576mm x 576mm and 768mm x 768mm.

Features:
1. Best viewing distance
6m - 60m
2. Best viewing angle
H: 120°, V: 120°
3. Max. power consumption
420W/sqm
4. Ave. power consumption
140W/sqm

Specification:

Pixel Pitch

6mm

Pixel Density

27,777dots/sqm

Tube Chip Color

Full Color

Color Configuration

1R1G1B 3in1

LED Encapsulation

SMD3528

Module Size

192mm x 192mm

Module Resolution

32dots x 32dots
Module Weight 0.45kg

Drive Duty

1/16 Constant Current

Brightness

>1,500nits

Viewing Distance

6m - 60m

Viewing Angle

H: 120°, V: 120°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

5V - 40A, AC110V/ 220V/ 50HZ

Max Power Consumption

420W/sqm

Ave. Power Consumption

120W/sqm

Storage Temperature

-40℃ - +80℃

Working Temperature

-20℃ - +60℃

Blind Spot Rate

<1/10,000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Operating Humidity

10% - 95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS


Application:

Widely using for music concert, theater, stadium, showroom, stage, monitoring room and etc.

Pictures:

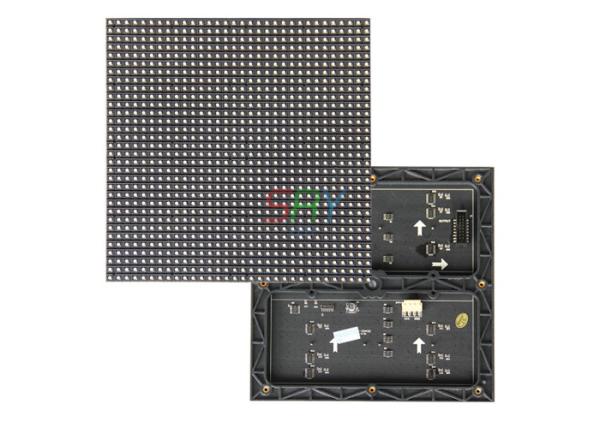

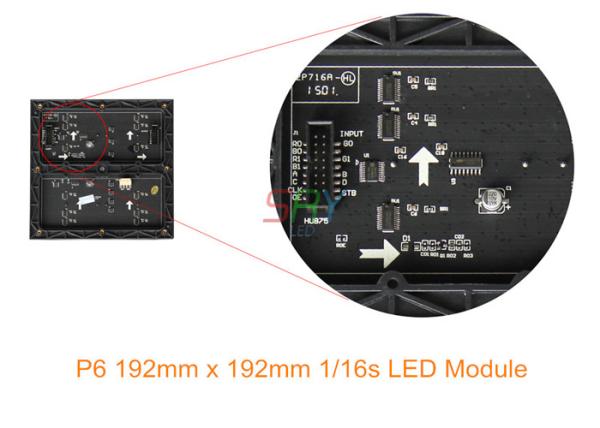

P6 Indoor Full Color Led Display Module 192mm X 192mm 1/16 Scan

P6 Indoor Full Color Led Display Module 192mm X 192mm 1/16 Scan
Competitive Advantages:

1. Vivid and brilliant color, sharp and smooth images.


2. Superb performance/price ratio solution for rental market.


3. 24/7 professional after sales service, and on-site service is available.


4. Support different shapes installation: Flat and curved ,create infinite stage styles.
