Specifications
Brand Name :
SRYLED
Model Number :
SRYLED - IFS - P3
Certification :
CE, LVD, RoHS
Place of Origin :
Shenzhen, China
MOQ :
1sqm
Price :
US$ 1,300 - 1,350 / Square Meter
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
1,000 Square Meter per Month
Delivery Time :
10 - 12 Work Days
Packaging Details :
Flight Case (flight case size depend on cabinet quantity)
Pixel Pitch :
3mm
Color Configuration :
1R1G1B 3in1
LED Encapsulation :
SMD2121

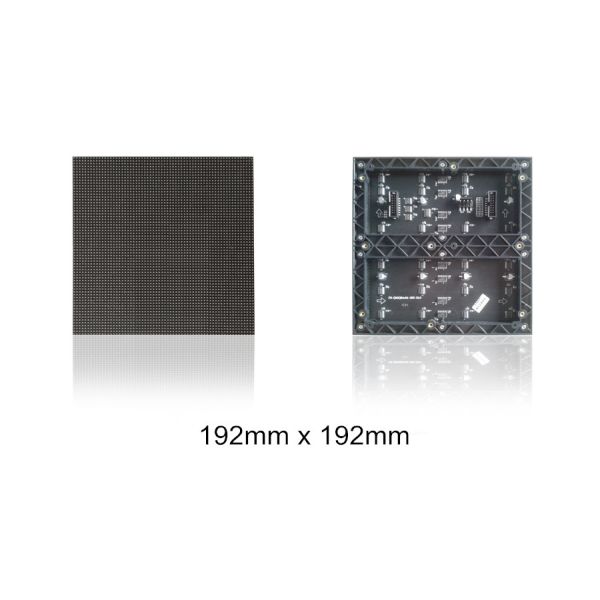

Module Size :
192mm x 192mm
Module Weight :
0.35kg

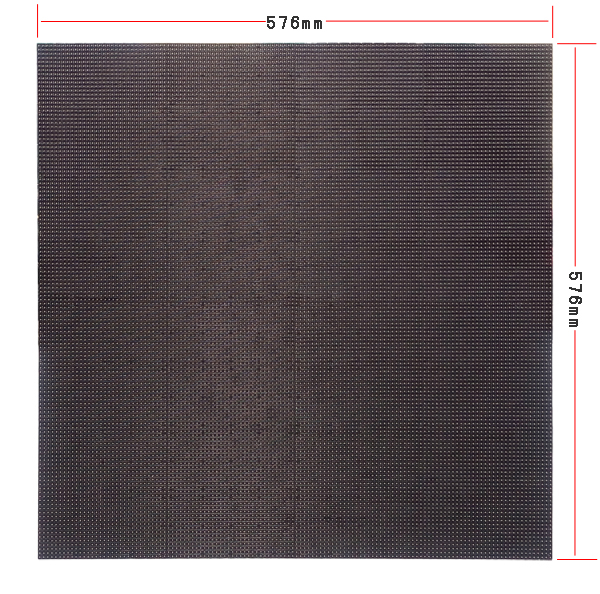

Cabinet Size :
576mm x 576mm
Cabinet Weight :
9kg
Warranty :
2 Full Years
Description

Indoor Super Slim 3mm Full Color Stage Led Screens Energy Saving HD

Decription:

Indoor 3mm Full Color Stage LED Display, Energy Saving HD Stage Background Screen. Using 576mm x 576mm die - casting Al cabinets. This cabinet is easy to install and uninstall. Normally it only takes 6s to assemble one cabinet.

Features:
1. Super light and super slim design
Weight: 9kg/cabinet
Thickness: 50mm
2. Seamless splicing design
Splice: <0.3mm

3. Energy saving design

Max. power consumption: 450W/sqm

Ave. power consumption: 150W/sqm

4. Great heat disspation design

Specification:

Pixel Pitch

3mm

Pixel Density

111,111dots/sqm

Tube Chip Color

Full Color

Color Configuration

1R1G1B 3in1

LED Encapsulation

SMD2121

Module Size

192mm x 192mm

Module Resolution

32dots x 32dots

Cabinet Size

576mm x 576mm

Cabinet Resolution

192dots x 192dots

Drive Duty

1/32 Constant Current

Brightness

>1,500nits

Viewing Distance

3m - 30m

Viewing Angle

H: 120°, V:120°

Refresh Rate

2,000HZ

Frame Rate

120frame/sec

Grey Grade

256levels of Each Color

Color Grade

16.7M

Power Input

5V - 40A, AC110V/ 220V/ 50HZ

Max Power Consumption

450W/sqm

Ave. Power Consumption

150W/sqm

Storage Temperature

-40℃ - +80℃

Working Temperature

-20℃ - +60℃

Blind Spot Rate

<1/10,000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Cabinet Weight

9kg

Operating Humidity

10% - 95%

Control System

Synchronous, Asynchronous

Operating System

Win 98, Win2000, XP, 07.etc

Input Source

All Format (AVI, MPEG,VOB, RM, etc)

Certificate

CE, LVD, RoHS


Application:

Widely using for theater, stadium, showroom, stage, monitoring room and etc.

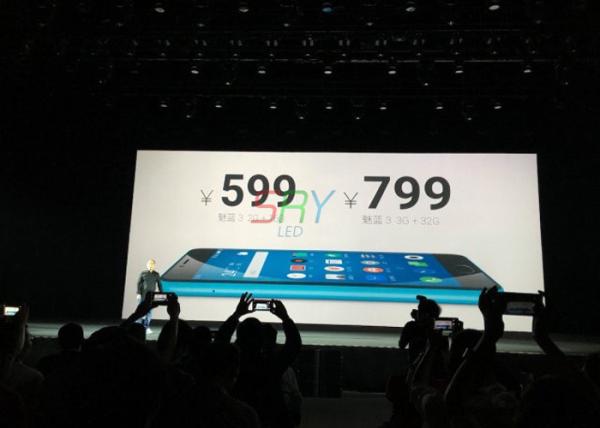

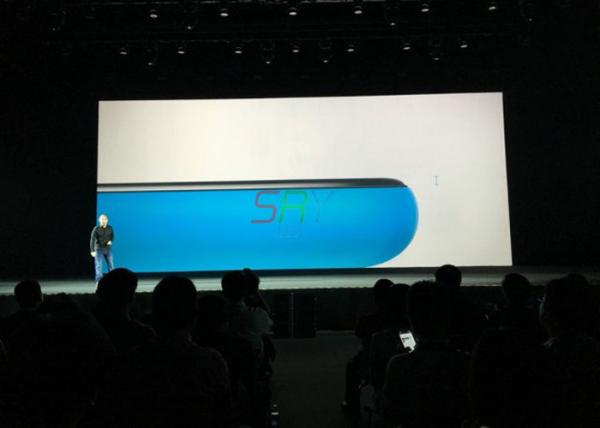

Pictures:

Indoor Super Slim 3mm Full Color Stage Led Screens Energy Saving HD

Indoor Super Slim 3mm Full Color Stage Led Screens Energy Saving HDIndoor Super Slim 3mm Full Color Stage Led Screens Energy Saving HD


Competitive Advantages:

1. Vivid and brilliant color, sharp and smooth images.

2. Plug and play, without tools to install / uninstall one cabinet in 6s.

3. One set cabinet structure is compatiable with various pixel pitches module.


4. Superb performance / price ratio solution for rental market.

5. 2 full years warranty.
