Specifications
Brand Name :
SRYLED
Model Number :
SRY-OF-P5
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
2sqm
Price :
800-1200USD/sqm
Payment Terms :
T/T, Western Union, PayPal, D/A, D/P, L/C, MoneyGram
Supply Ability :
3000sqm per month
Delivery Time :
7-15 days
Packaging Details :
Wooden box or flight case
Resolution :
40000 dots/sqm
Module Size :
320mm x 160mm
Led Type :
SMD2727
Brightness :
6500cd/sqm
Power Supply :
G-energy
Cabinet Size :
960mm x 960mm
Description

Digital Outdoor LED Billboard , Stage Background Multimedia thin LED display

Description

1). Wide application field : Outdoor Commercial advertising LED display screen, LED display board for shopping mall,Stadium perimeter LED display ,bank&stock exchange LED display screen for rates showing,train & bus station LED display screen .

2). High brightness:6500cd/m2 Automatic or manual adjustment of the brightness of the display.

3).Top LED chip: Supplied by Silan of china & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display system.

4). Clear vivid image quality: Throughout the show, the picture clear, bright color.

5).Installation is simple,easy to use: Easy and simple installation interface and user friendly software to ensure that customers use easily.

6).The list of available Models of our outdoor full color led display board : Outdoor led display screen:P5,P6,P8,P10,P12,P16,P20,P25.

7).Good heat dissipation;

8).Energy-saving to reduce cost;Environment friendly;

9).Cabinets Seamless splice;

10).Comprehensive Application

Advantage


1. Good color blending: Display clear, exquisite, nature color video even at close distance;

2. Rich colors: With three basic colors (red, green and blue), 256-level gradation of each color, and form 16777216 kinds of colors;

3. Wide viewing angle: Viview led display show clear pictures or image without mosaics even when audiences see it from a small viewing angle;

4. Adjustable brightness: Viview LED screen brightness can be adjusted automatic and manual according to environment light;


5. Wide range of display content: Viview led wall can easily to display txt documents, doc documents, pictures (BMP/JPG/GIF/PCX…..) and video (MPG/MPEG/MPV/MPA/AVE/VCD/SWF/RM/RA/RMJ/ASF)

Specification

Pixel Pitch

5mm

Pixel Density

40000dots/sqm

Color Configuration

1R1G1B

LED Package

SMD2727

Module Size

320mm x 160mm

Module Resolution

64dots x 32dots

Drive Mode

1/8 Scan

Standard Cabinet Size

960mm x 960mm

Cabinet Weight

45KG

Brightness

≥6500 cd/sqm

Viewing Distance

5m-50m

Viewing Angle

H: 140°; V:140°

Refresh Rate

2000HZ, adjustable by software

Frame Rate

120frame/s

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10%, 50HZ

Max Power Consumption

800W/sqm

Ave. Power Consumption

300W/sqm

Storage Temperature

-30℃~+70℃

Working Temperature

-20℃~+50℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof Level

IP65

Operating Humidity

10%~90% RH

Control Method

Synchronous, Asynchronous, 3G,WIFI,USB

Operating System

Win 98, Win2000, XP, Win7, Win8, Win10

Video Signal Mode

RF, S-Video, RGB, RGBHV, YUV, YC etc

Certificate

CE, RoHS

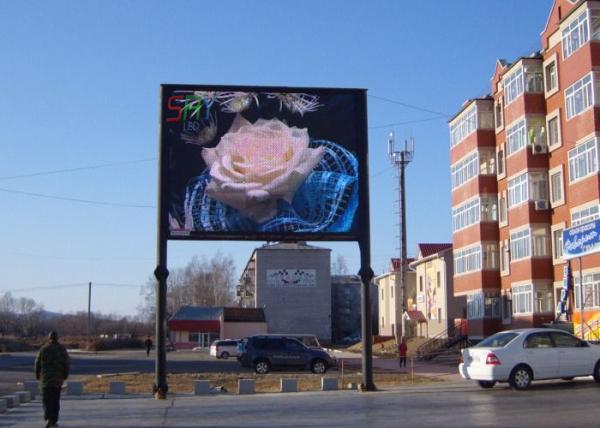

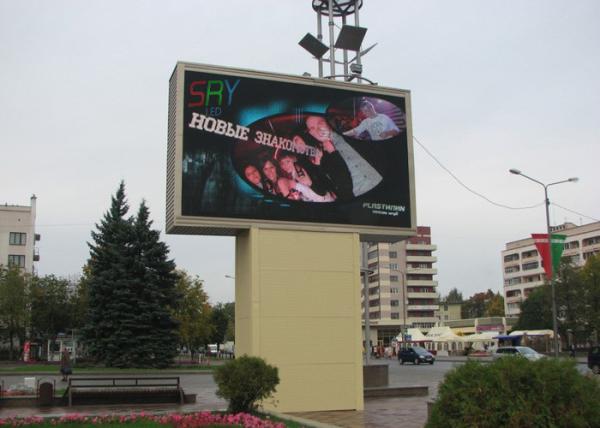

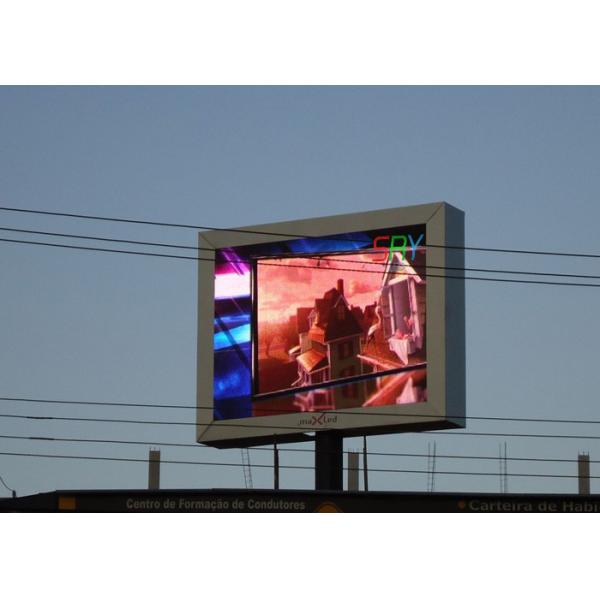

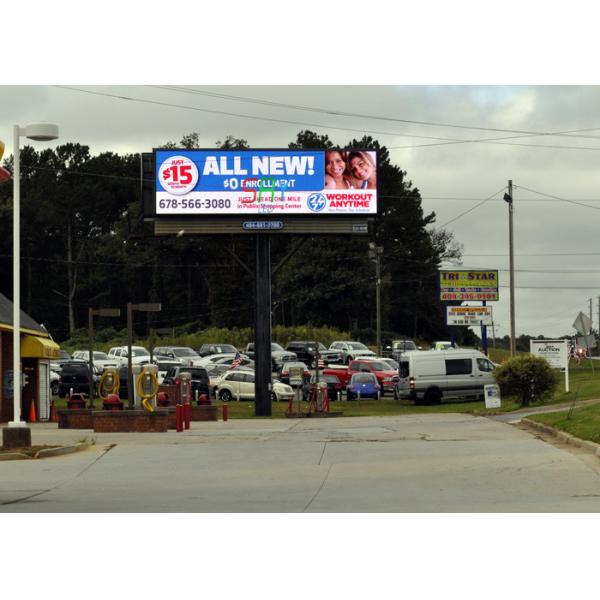

Product Images
