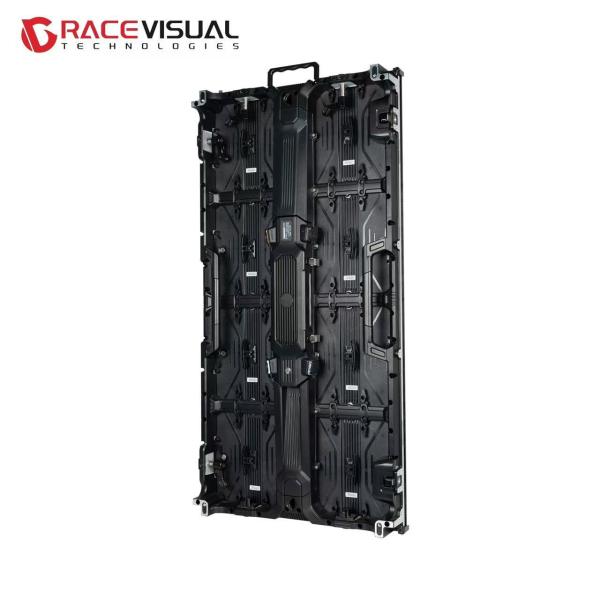

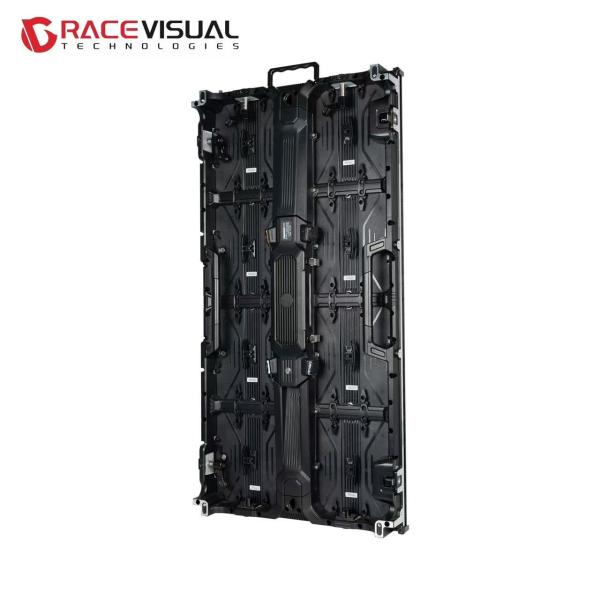

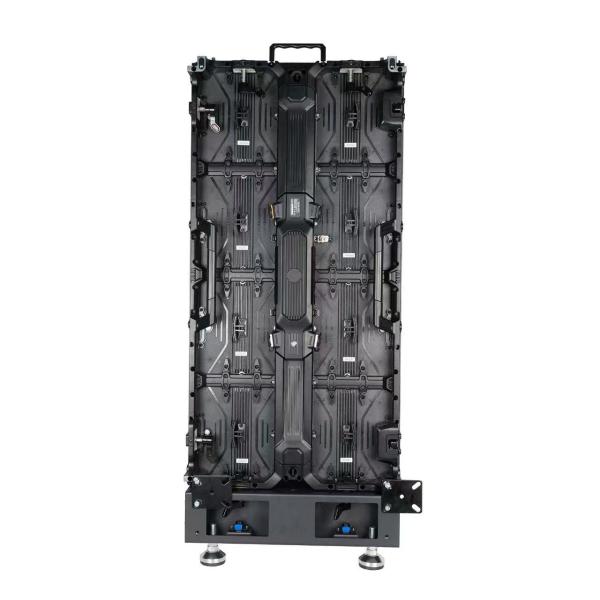

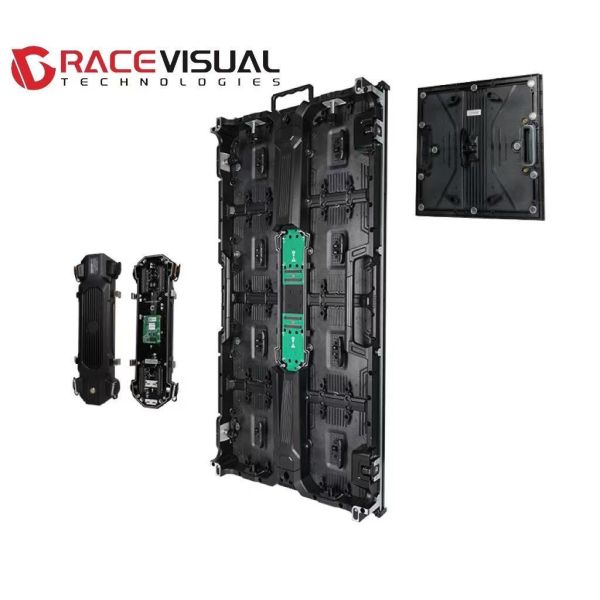

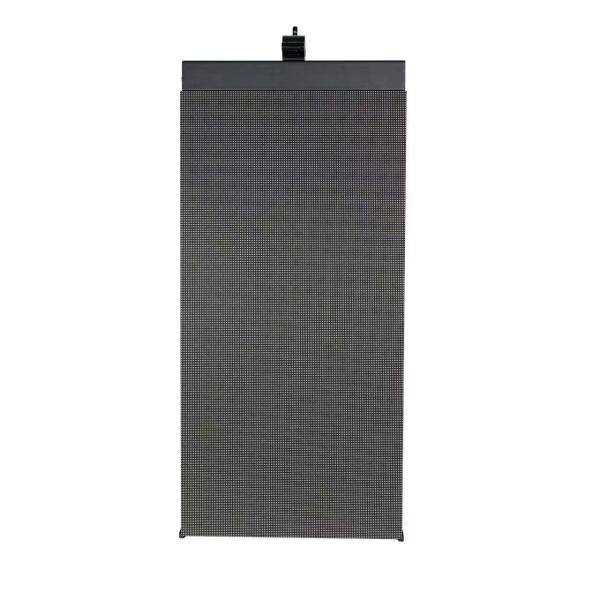

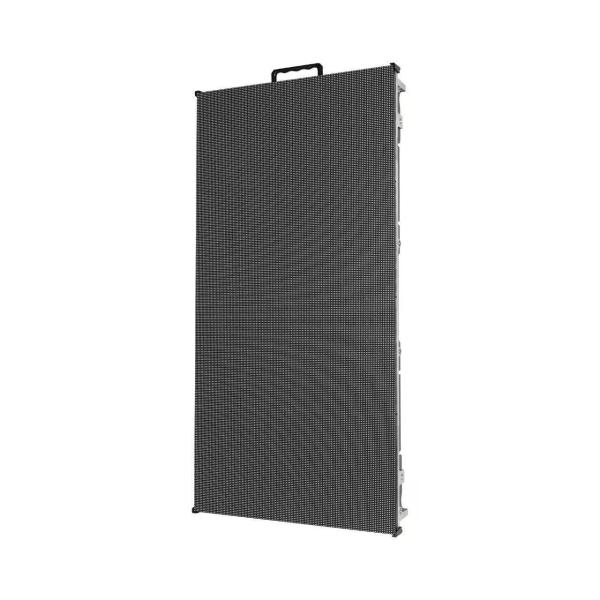

P3.9mm 7680Hz High Refresh Rate ORB Series outdoor LED Screen Brightness 4500nits Front & Rear Service Rental & Stage
P3.9mm 7680Hz High Refresh Rate ORB Series outdoor LED Screen Brightness 4500nits Front & Rear Service Rental & Stage
P3.9mm 7680Hz High Refresh Rate ORB Series outdoor LED Screen Brightness 4500nits Front & Rear Service Rental & Stage
P3.9mm 7680Hz High Refresh Rate ORB Series outdoor LED Screen Brightness 4500nits Front & Rear Service Rental & Stage
P3.9mm 7680Hz High Refresh Rate ORB Series outdoor LED Screen Brightness 4500nits Front & Rear Service Rental & Stage
P3.9mm 7680Hz High Refresh Rate ORB Series outdoor LED Screen Brightness 4500nits Front & Rear Service Rental & Stage
P3.9mm 7680Hz High Refresh Rate ORB Series outdoor LED Screen Brightness 4500nits Front & Rear Service Rental & Stage
P3.9mm 7680Hz High Refresh Rate ORB Series outdoor LED Screen Brightness 4500nits Front & Rear Service Rental & Stage
P3.9mm 7680Hz High Refresh Rate ORB Series outdoor LED Screen Brightness 4500nits Front & Rear Service Rental & Stage
P3.9mm 7680Hz High Refresh Rate ORB Series outdoor LED Screen Brightness 4500nits Front & Rear Service Rental & Stage
Specifications
Brand Name :
Grace Visual
Model Number :
ORB
Certification :
CCC,CE,ETL,RoHS
Place of Origin :
China
MOQ :
6pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000sqm per month
Delivery Time :
5-8 work days
Packaging Details :
Flight case
Material :
Die-casting Aluminum
Panel Dimension :
500x500x80mm/500x1000x80mm
Refresh Rate :
3840/7680hz
Brightness :
4500nits
IP Rating(Front/Rear) :
IP65/IP54
Description

P3.9mm 7680Hz High Refresh Rate ORB Series outdoor LED Screen Brightness 4500nits Front & Rear Service Rental & Stage


Products Feature

1. ORB Series is a cutting-edge solution designed for dynamic, high-impact events in outdoor environments
2. 500x500mm / 500x1000mm panels curved concave & convex angle

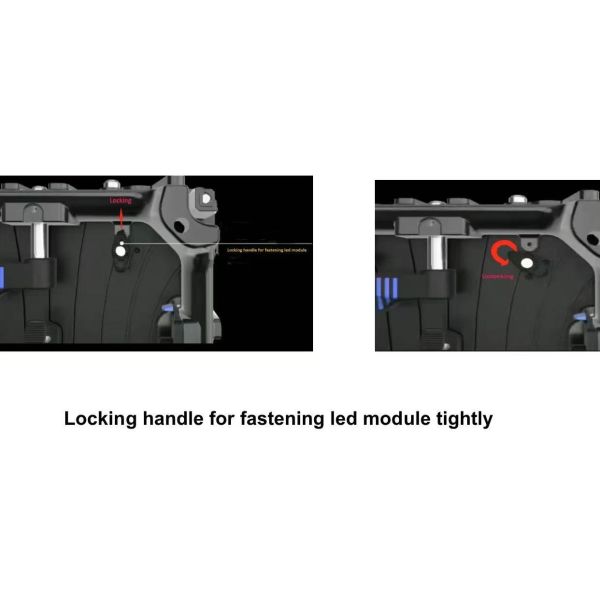

3. Corner protection Avoid crashing when packing & assembling Easy to stand for demonstration
4. 3840Hz High refresh rate 160degree wide viewing angle high contrast ratio


Specification:


SPECIFICATION
Model ORB-2.6 ORB-2.9 ORB-3.9 ORB-4.8
Physical Pitch 2.6mm 2.97mm 3.91mm 4.81mm
Pixel Configuration SMD1921 SMD1921 SMD1921 SMD2727
Pixel Density 147,456 pixels/㎡ 112,896 pixels/㎡ 65,536 pixels/㎡ 43,264 pixels/㎡

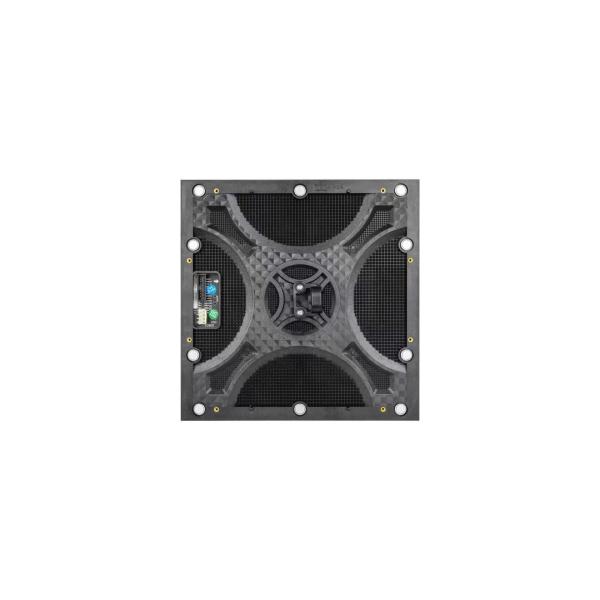

Module Dimensions
(WXH)		 250x250mm
Panel Dimensions(WXHXD) 500x500x80mm/500x1000x80mm
Physical Resolution
of Module(WXH)		 96x96px 84x84px 64x64px 52x52px
Physical Resolution
of Panel(WXH)

192x192px

192x384px

168x168px

168x336px

128x128px

128x256px

104x104px

104x208px
Panel Material Die-casting Aluminum
Weight(sqm) 8kg/14kg(17.63lbs/30.86lbs)
Processing 16bit
Colours 281 trillion
Avg. Power Consumption

64W/panel / 128W/panel
Max. Power Consumption

192W/panel / 384W/panel
Refresh Rate

3840/7680Hz
Brightess ≥4500nits
Horizontal Viewing
Angle		 160°
Vertical Viewing
Angle		 140°
Expected Lifetime 100,000Hrs
IP Rating
(Front/Rear)		 IP 65/IP54
Operation Temp/
Humidity		 -10℃-60℃ /10%-60%
Storage Temp/
Humidity		 -30℃-60℃ /10%-60%
