TSR Series Transparent Outdoor Rental LED Display P3.9–P7.8 Pixel Pitch | 7,680Hz Refresh Rate | 5,000 Nits High Brightness | Ultra-Lightweight 9kg Design
TSR Series Transparent Outdoor Rental LED Display P3.9–P7.8 Pixel Pitch | 7,680Hz Refresh Rate | 5,000 Nits High Brightness | Ultra-Lightweight 9kg Design
TSR Series Transparent Outdoor Rental LED Display P3.9–P7.8 Pixel Pitch | 7,680Hz Refresh Rate | 5,000 Nits High Brightness | Ultra-Lightweight 9kg Design
TSR Series Transparent Outdoor Rental LED Display P3.9–P7.8 Pixel Pitch | 7,680Hz Refresh Rate | 5,000 Nits High Brightness | Ultra-Lightweight 9kg Design
TSR Series Transparent Outdoor Rental LED Display P3.9–P7.8 Pixel Pitch | 7,680Hz Refresh Rate | 5,000 Nits High Brightness | Ultra-Lightweight 9kg Design
TSR Series Transparent Outdoor Rental LED Display P3.9–P7.8 Pixel Pitch | 7,680Hz Refresh Rate | 5,000 Nits High Brightness | Ultra-Lightweight 9kg Design
Specifications
Brand Name :
Grace Visual
Model Number :
TSR
Certification :
CCC,CE,ETL,RoHS
Place of Origin :
Shenzhen
MOQ :
6pcs
Payment Terms :
T/T
Delivery Time :
8days
Packaging Details :
flight case
Physical Pitch :
3.9-7.8mm/0.15”-0.30”
Pixel Configuration :
SMD1921
Module Dimension(WxH) :
500x125mm/19.68”x4.92”
Panel Dimension(WxHxD) :
500x1000mm/19.68”x39.37”500x1000mm/19.68”x39.37”
No. of Module/panel(WxH) :
1x8
Module Resolution :
128x16px
Panel Resolution :
128x128px
Panel Material :
Aluminum alloy
Panel Weight :
9KG per panel(19.85Ibs)
Gray Scale :
16bit
Description

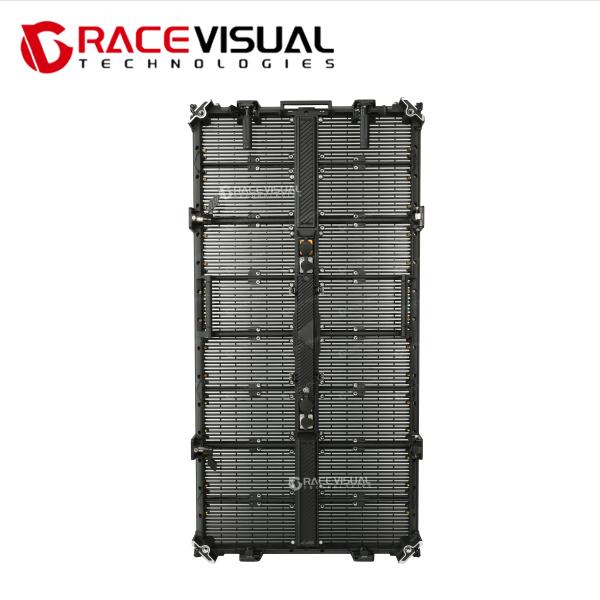

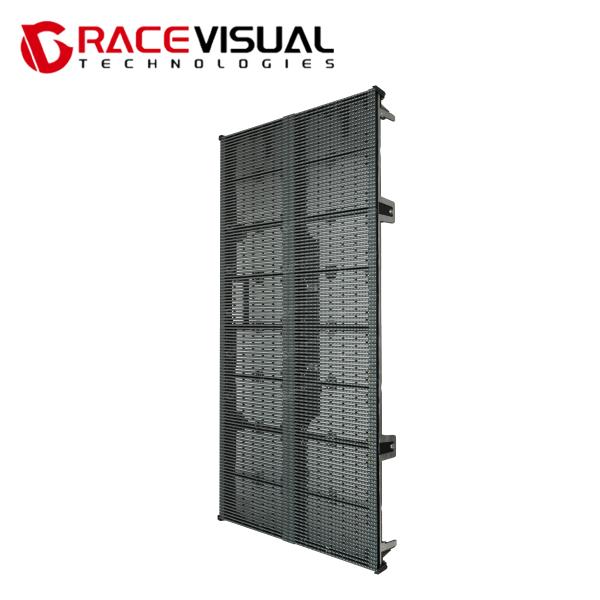

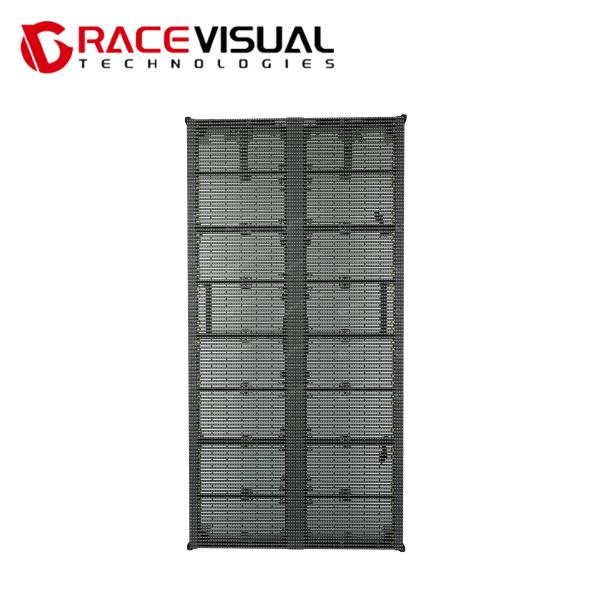

TSR Transparent LED Display
The Future of High-Performance See-Through Technology

I. Unmatched Visual Performance

✔ 5,000 Nits Brightness – Exceptional visibility, even in direct sunlight
✔ 65,536 Color Shades (16-bit Grayscale) – Smooth gradients and lifelike visuals
✔ 7,680Hz Refresh Rate – Flicker-free playback, perfect for dynamic content and camera-friendly applications

II. Revolutionary Transparency

✔ 50% Light Transmittance – Preserves natural lighting and outside views—ideal for glass facades and retail windows
✔ Self-Cooling System – No need for air conditioning, cutting energy costs by over 30%
✔ Ultra-Slim & Lightweight – Just 75mm thick and 9kg (19.85 lbs) per panel for effortless installation

III. Engineered for Extreme Environments

✔ -10°C to 60°C Operating Range – Reliable performance from icy winters to blazing summers
✔ IP65 Weatherproof – Fully sealed against dust, rain, and harsh outdoor conditions
✔ Aircraft-Grade Aluminum Frame – Corrosion-resistant, with a 100,000-hour lifespan (11+ years of use)

IV. Smart, Modular Design

✔ 500×1000mm Flexible Panels – Adaptable to curved surfaces, windows, and creative structures
✔ Tool-Free Magnetic Connectors – Quick, seamless assembly and reconfiguration
✔ Corner-Protected LEDs – Enhanced durability during transport and installation

Why Choose TSR?

✅ “HD + Transparency” Innovation – 32,768 pixels/m² without obstructing visibility
✅ Ultra-Efficient – Just 180W/m² average power consumption (560W/m² peak)
✅ Globally Certified – CCC | CE | ETL | RoHS compliant for worldwide deployment

Ideal For:

• Luxury Retail Storefronts
• Outdoor Transparent Billboards
• Museums & Theaters
• Architectural Glass Walls & Facades
