Product Highlights

This product features outstanding outdoor performance with an IP66 high waterproof rating, making it suitable for diverse outdoor environments. It has a high brightness of either 6000nits or 10000nits, ensuring clear visibility even under strong sunlight.

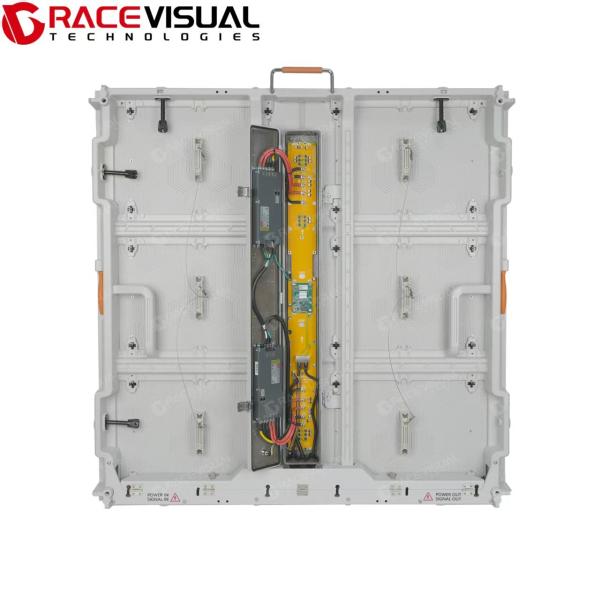

The design is durable and safe. It uses an aluminum alloy material that offers excellent heat dissipation. There is a safety rope design and a drop - proof structure for easy and secure replacement. The power and signal lines are concealed for a clean appearance.

Installation and maintenance are hassle - free. It is ultra - thin and lightweight, equipped with dual handles for easy handling. It supports both front and rear maintenance.

The performance is stable. With a 16 - bit gray scale, a 15000:1 contrast ratio, and a 3840hz refresh rate, it delivers vivid and smooth visuals. It has an expected lifetime of 100,000 hours.

Specifications

The physical pitch varies by model, including 4.4mm (0.17"), 5.7mm (0.22"), 6.67mm (0.26"), 8mm (0.34"), and 10mm (0.39"). The pixel configuration is SMD2727 for all models.

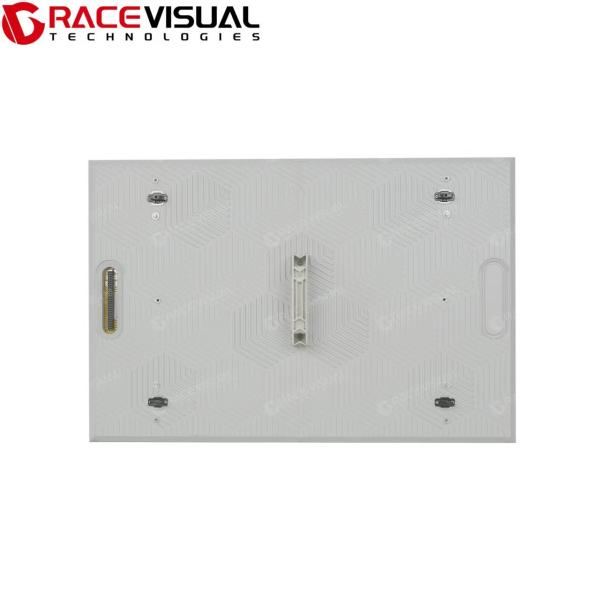

The pixel density ranges from 50625px/m² to 10000px/m². The module dimensions are around 480x320mm with different thicknesses according to the model. The panel dimensions are approximately 960x960mm with varying thicknesses as well.

The module resolution and panel resolution also differ by model. The panel material is aluminum alloy. For the OA - 10 model, the panel weight is 26.5kg (58.42lbs).

The average power consumption for the OA - 10 model is 186w/m², and the maximum power consumption is 550w/m². The operating temperature ranges from - 10°C to 60°C, and the humidity is between 10% and 60%. The storage temperature ranges from - 30°C to 60°C, and the humidity is also between 10% and 60%.

All models have a 3840hz refresh rate, a 140°/120° viewing angle, and an expected lifetime of 100,000 hours. They support both front and rear service, have an IP66 rating, and are certified with CCC, CE, ETL, and RoHS.

Application Scenarios

It is ideal for outdoor commercial advertising, such as billboards, building exteriors, and public square displays, and can withstand various weather conditions.
