Specifications
Brand Name :
Singheng
Model Number :
P20
Certification :
CE RoHS UL FCC
Place of Origin :
China (Mainland)
MOQ :
1 square meter
Price :
USD+To be negotiated+square meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square meter+per month
Delivery Time :
About 16 days
Packaging Details :
Plywood case
Application :
Video
LED chip :
EPISTAR
Pixel pitch :
20 mm
Pixel Configuration :
SMD3535
Waterproof Grade :
IP45
Celsius :
-40℃~40℃
Humidity :
10—85%RH
Pixel Density :
2500 dots/sqm
Refresh Rate :
>1920Hz
Brightness :
≥3000cd/sqm
Description

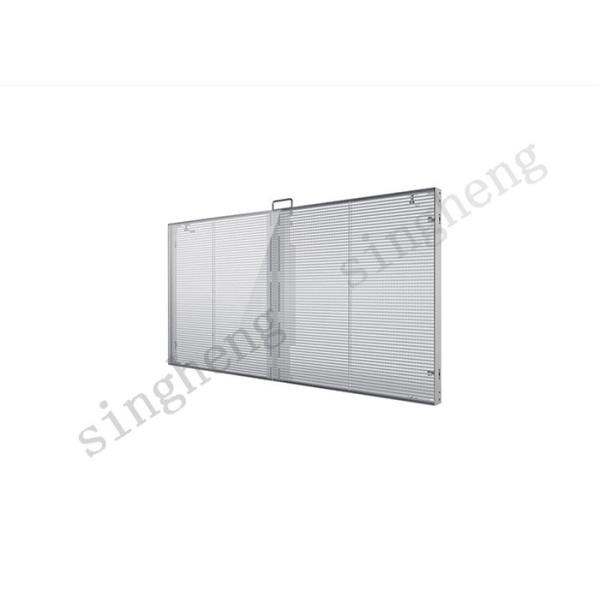

Transparent Display Screen Led Transparent Screen P20 Glass Wall Screen

  • Product Description

1. The upper and lower connections,left and right connections are equipped with quick locks, which are quick and easy to install,saving time and effort.

2. The signal and power connection between the cabinets are all equipped with aviation plugs for quick installation.

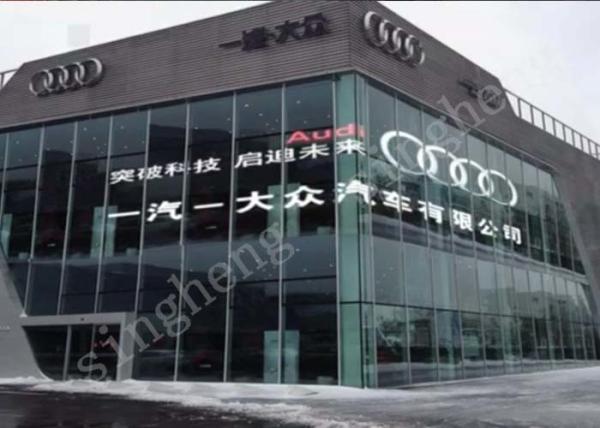

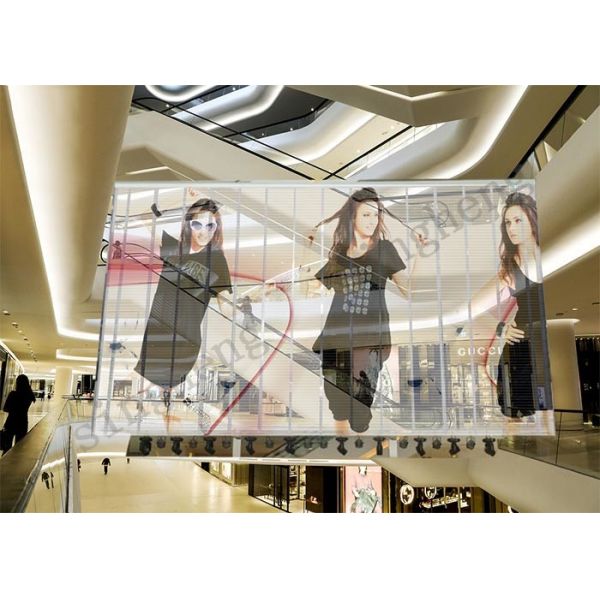

3. Transparent display screen is Installed behind the glass curtain wall,hoisted or floor-mounted installed in the shopping mall, playing advertising.

4. The pictures played by LED transparent display is like floating in the air,producing a magical advertising effect.

5. With the high quality raw material, mature process and scale production,the quality is ensured.
6. Led transparent screen leader, very mature product. Initial creator for such panel, light-proof. Super slim, light weight, can meet the most demanding requirements.

  • Technical parameterof P20 Glass Wall Screen

Item P20
Pixel Pitch 20 mm
Pixel Density 2500dot/sqm
Pixel Configuration SMD3535
LED brand Taiwai EPISTAR
Cabinet type Transparent
Transparent rate 85%
Cabinet Material aluminum
Viewing Distance 25-100 m
Viewing Angle (Horizontal) 120°
Viewing Angle (Vertical) 120°
Refresh Rate >1920Hz
Brightness ≥3000cd/sqm
Max Power Consumption 600 w/sqm
Average Power Consumption 200 w/sqm
Drive Mode Hanging or ttacking
Lifespan ≥10,0000 h
Waterproof Grade IP45
Input Voltage AC105-235V 50~60HZ
Celsius -40℃~40℃
Humidity 10~85%RH

  • ​​​​FAQ

Q1:LED display models are generally expressed in PX, such as P2 P3 P4....P8 P10.What does this mean?
A: P2 P3 P4.....P8 P10 means the pixel pitch is 2mm 3mm 4mm....8mm 10mm,which determines the number of pixels per unit area of a display. So it represents the clarity of the display. The smaller the pitch, the higher the clarity. Usually, the models of indoor full color display are P1.875,P2.5,P3,P4,P5. Outdoor full color display are P4,P5,P6,P8,P10.

Q2: To order a display, what information should l offer you?
A:You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.

Q3:How about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.

Q4:Can I order a sample?
A:Yes.We welcome customers to order sample to check the quality and service.

Q5:Is it OK to print my LOGO on your product?
A:Yes.We support OEM and ODM service.
