Specifications
Brand Name :
Singheng
Model Number :
P2
Certification :
CE RoHS UL Certifications
Place of Origin :
China (Mainland)
MOQ :
1 square meter
Price :
USD+To be negotiated+square meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000+square meter+per month
Delivery Time :
About 16 days
Packaging Details :
Plywood case
Application :
Video
Warranty :
3 Years
LED chip :
Epistar
Pixel pitch :
2mm
Package mode :
SMD2121
Pixel resolution :
128*64 dot
Material :
Die-cast aluminum
Module size :
256x128mm
Pixel density :
250000 dots/sqm
Screen Dimension :
Customized Size
Description

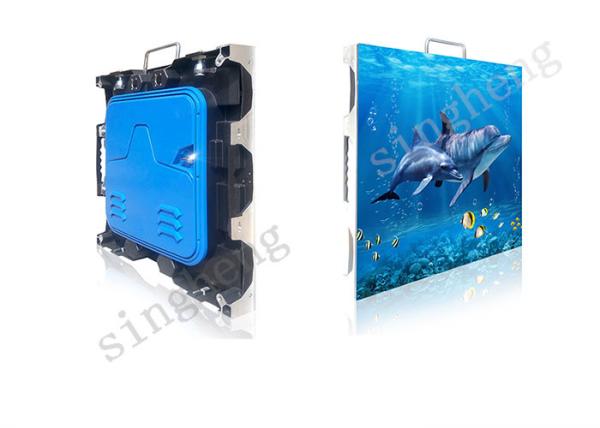

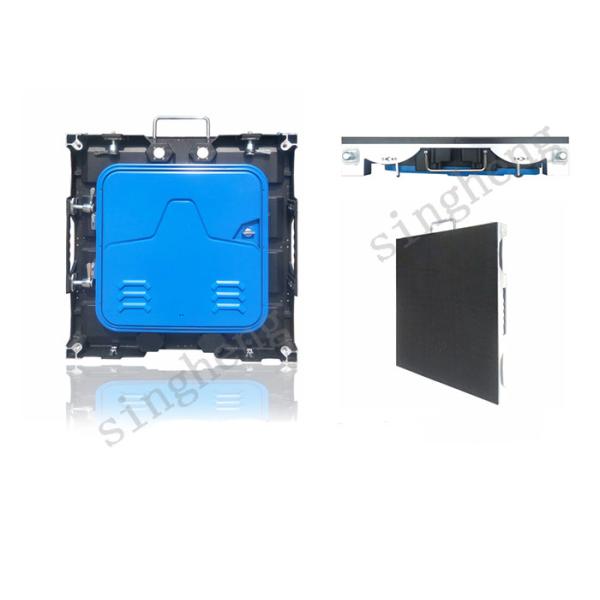

Full Color LED Video Wall P2 LED Display Panel Indoor LED Display Price

  • Product Description

1. High contrast rate up to 5000:1 by using black LED.

2. Good thermal design, excellent heat dissipation even no fan installation.

3. With the high quality raw material, mature process and scale production,the quality is ensured.

4. High refresh rate with NOVA control system,no scaning line when photographed.

5. Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost.

6. Inner fixed reinforcement plate, tensile and shockproof, auto heat dissipation, make the operating life 10 years.

7. Support point correction function, ensure the consistency of the color and the brightness in the process of use.

8. We have the most competitive prices based on all good material we use . Our indoor LED display screen quality is very repliable and we win very good reputation in the market.

9. It is very easy to calculate the size of LED video wall.It can be exactly 4*3m, 6m*4m, 8m*4.5m etc.(4m*3m is 4:3 ratio and 8m*4.5m is 16:9 ratio,perfect to show video)

  • Technical Prameters​ of P2 LED Display Panel

Pixel pitch 2mm
Pixel Configuration 1R1G1B
LED component SMD2121
Size of module 256x 128mm
Resolution of module 128x64 dot
Brightness >1200cd/sqm
Density 250000dots/sqm
Best viewing angle 140 /120
Best viewing distance 2-30M
Maximum power consumption 1300W/sqm
Average power consumption 579W/sqm
Driving method 1/32 scan
Control method Synchronization
Gray scale 65536
Colors Full color
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP30
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC TUV-CE ETL etc.

  • FAQ

Q1: To order a display, what information should l offer you?
A:You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.

Q2:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.

Q3:How about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers, strictly control the production process. and pass the multiple quality inspection to ensure every product is qualified.

Q4:What about the lead time?
A:Orders less than 50 square meters display ,lead time is 16 days.

Q5:Can I order a sample?
A:Yes.We welcome customers to order sample to check the quality and service.
