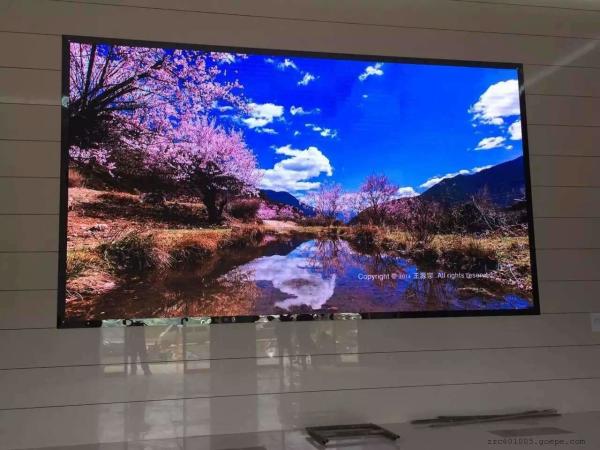

1500W P2 Stadium Led Display Indoor Led Screen Wall
1500W P2 Stadium Led Display Indoor Led Screen Wall
Specifications
Type :
LED
Lamp :
1500W
Lifespan :
100 000 Hours
Density :
284445dot/square mete
Module Name :
P1.9
Frame Rate :
≥ 60HZ
Supplier Type :
Original manufacturer, ODM, OEM
Pixel Structure :
1R1G1B
Screen Size :
Customizable
Power Consumption :
Max 800W/㎡
Brightness :
800-1200 nits
Panel Weight :
12 kg/unit & 6 kg/unit
Installation :
fixed
Contrast :
≥3000:1
White Balance Brightness :
≥600 cd/㎡
Place of Origin :
Shenzhen, China
Brand Name :
TOPVIEW
Model Number :
P2.6mm, P2.97, P3.91mm, P4.81mm
MOQ :
1pc
Price :
Negotiation
Packaging Details :
Carton
Delivery Time :
1-30 days
Payment Terms :
L/C, T/T
Description
  • P2-32S Indoor LED Display Specification
    Pixel distance:2(mm) Module size:128X128(mm) Cabinet size:512×512(mm)
    Pixel density:250000dots/㎡ Color: 1R1G1B Module dots: 64*64=4096 DOTS
    Cabinet resolution:256X256 Cabinet size:0.262144m² Cabinet weight 7.18KG±0.05KG
    Main specification
    Best viweing distance:2m～27m H ≧160° V ≥120°
    Ave power consumption＜500W/㎡ Max ＜12000w/㎡ Control way:synchronous control
    Driver: DVI driver Scan method 1/32scan Max power consumption ≤18W
    Frame Frequency≧60Hz Brightness ≧1000cd/㎡ Refresh rate ≧1920Hz
    Brightness Adjustment Automatic brightness sensor adjustment 16grade
    Manual adjustment:100grade
    Cooperation system
    WIN98,WINXP,WIN2000,etc
    Video Source
    RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc
    Control system
    PCTV card(optional)+sending card+ revieving card+optical fiber transmission(optional)
    MTBF ≧5000Hrs Using life: 75000～100000Hrs defective rate ＜0.0002 dots
    Model: PH2-32S 3 in 1 packaged 1515 led chips
