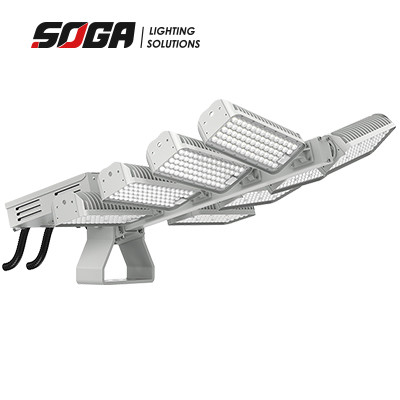

IK09 High Power LED Flood Light with AC90-305V Voltage and Die-casting Aluminum Housing
IK09 High Power LED Flood Light with AC90-305V Voltage and Die-casting Aluminum Housing
IK09 High Power LED Flood Light with AC90-305V Voltage and Die-casting Aluminum Housing
IK09 High Power LED Flood Light with AC90-305V Voltage and Die-casting Aluminum Housing
IK09 High Power LED Flood Light with AC90-305V Voltage and Die-casting Aluminum Housing
IK09 High Power LED Flood Light with AC90-305V Voltage and Die-casting Aluminum Housing
IK09 High Power LED Flood Light with AC90-305V Voltage and Die-casting Aluminum Housing
IK09 High Power LED Flood Light with AC90-305V Voltage and Die-casting Aluminum Housing
Specifications
Brand Name :
SOGA
Model Number :
Eagle
Certification :
CE ROHS ENEC IP66 IK08
Delivery Time :
15days
Supply Ability :
1000
IK Rate :
IK09
CRI :
70 80 90
Beam Angl :
20,,40,60°, Asymmetric A60, A60W
Housing :
Die-casting Aluminum
Dimming Solutions :
0-10V Dimming, DALl, DMX, Clo,Zigbee
Powers :
400W 500W 600W 1000W 1200W 1500W 1800W
Working Temps :
-40℃ - 80℃
Driver :
INVENTRONICS, MEANWELL,SOSEN
Description
SOSEN Driver High Power LED Flood Light AC90-305V Voltage 17 Class Windload Test Energy Saving Outdoor Lighting Solution
Product Overview
The High Power LED Flood Light delivers exceptional brightness and durability for commercial and industrial applications. Engineered with high lumen efficiency, it provides maximum illumination while minimizing energy consumption.
Robust Construction
Aluminum housing for excellent heat dissipation and corrosion resistance
Weather Protection
IP66 rated for dust and water resistance in harsh outdoor environments
Premium Drivers
Equipped with INVENTRONICS, MEANWELL, and SOSEN drivers for reliable performance
Wide Voltage Range
AC90-305V and AC108-528V compatibility for global applications
Power Options: 400W, 500W, 600W, 1000W, 1200W, 1500W, 1800W
Warranty: Comprehensive 5-year warranty included
Additional Service: Free DIALUX Simulation for lighting planning
IK09 High Power LED Flood Light with AC90-305V Voltage and Die-casting Aluminum Housing
Applications
The SOGA Eagle High Power LED Flood Light is designed for demanding outdoor environments with superior durability and excellent heat dissipation.
Certifications: CE, ROHS, ENEC, IP66, IK08
Ideal For:
  • Sports stadiums and arenas
  • Large construction sites
  • Parking lots and outdoor areas
  • Gardens and landscape lighting
  • Industrial facilities
Advanced Features:
  • Multiple dimming solutions: 0-10V, DALI, DMX, CLO, Zigbee
  • Operating temperature: -40℃ to 80℃
  • High lumen efficiency for energy savings
IK09 High Power LED Flood Light with AC90-305V Voltage and Die-casting Aluminum Housing
Support and Services
For optimal performance and longevity, please follow the installation and maintenance guidelines provided.
Troubleshooting:
  • Verify power source and connections are properly installed
  • Ensure operating conditions are within specified range
  • Consult user guide for common issues
  • Contact qualified electrician or authorized service centers if problems persist
Maintenance:
  • Regularly clean lens and heat sink to prevent dust accumulation
  • Always disconnect power before performing maintenance
  • Refer to warranty terms in product documentation
Additional support resources including FAQs, product manuals, and firmware updates are available on our official website.
IK09 High Power LED Flood Light with AC90-305V Voltage and Die-casting Aluminum Housing
Packing and Shipping
Product Packaging:
  • Sturdy, custom-designed box with high-density foam inserts
  • Includes LED flood light unit, adjustable mounting bracket, user manual, and installation hardware
  • Clear product labeling and handling instructions on exterior
Shipping Options:
  • Reliable carriers with standard, expedited, and overnight delivery
  • Tracking information provided upon dispatch
  • Customs documentation prepared for international shipments
  • Bulk shipping solutions available for large orders
All orders are processed promptly and packaged to withstand handling during shipment.
IK09 High Power LED Flood Light with AC90-305V Voltage and Die-casting Aluminum Housing
