SOGA G2 series modular LED light adopts rotatable LED bar design to realize flexible & efficient light distribution.
  • Housing: Anodized aluminum light bar, powder-coated lamp holder & bracket, stainless steel screws, fully anti-corrosion, no cracking & peeling; rotation scale marked on fixture surface
  • Heat Dissipation: Folded fin integrated heatsink, excellent heat dissipation to extend fixture service life
  • Modular Structure: Easy assembly, quick maintenance, flexible power combination according to project demands
  • Wind Resistance: Supports Class 17 wind load (56.1~61.2 m/s), stable for high mast & outdoor stadium use
  • Waterproof Grade: IP65 full waterproof, suitable for all outdoor harsh environments
  • Lifespan: L70 >60,000 hours, 5 years official warranty

Item Details
Input Voltage AC90-305V / AC108-528V wide voltage
LED Chip Lumileds 5050 high efficiency LED
Luminous Efficiency Up to 160lm/W
CRI 70 / 80 / 90 optional
CCT 3000K / 4000K / 5000K / 5700K / 6500K
Power Factor >0.95
Beam Angle 20°,40°,60°,90°,H140*V100 multi-angle optional
Operating Temperature -40℃ ~ +55℃
IP Rating IP65
Driver Brand Meanwell / Sosen / Inventronics detachable driver box
Dimming Solution 0-10V Dimming, DALI, CLO, Zigbee wireless control
Rotation Angle Single module ±40° adjustable; mounting bracket 120° rotatable

Model Module Qty Total Power Lumen Output
SG-G2-120W 1pcs 120W 18,000LM
SG-G2-240W 2pcs 240W 36,000LM
SG-G2-360W 3pcs 360W 54,000LM
SG-G2-480W 4pcs 480W 72,000LM
SG-G2-720W 6pcs 720W 108,000LM
SG-G2-960W 8pcs 960W 144,000LM
SG-G2-1200W 10pcs 1200W 180,000LM
SG-G2-1440W 12pcs 1440W 216,000LM

SOGA G2 Series Rotatable Modular LED Stadium Flood LightSOGA G2 Series Rotatable Modular LED Stadium Flood Light

3. Product Advantages

  1. High Lumen Efficiency
    Equipped with reliable Lumileds 5050 LED chips, max 160lm/W high luminous efficiency, greatly reduce power consumption, energy-saving & eco-friendly.

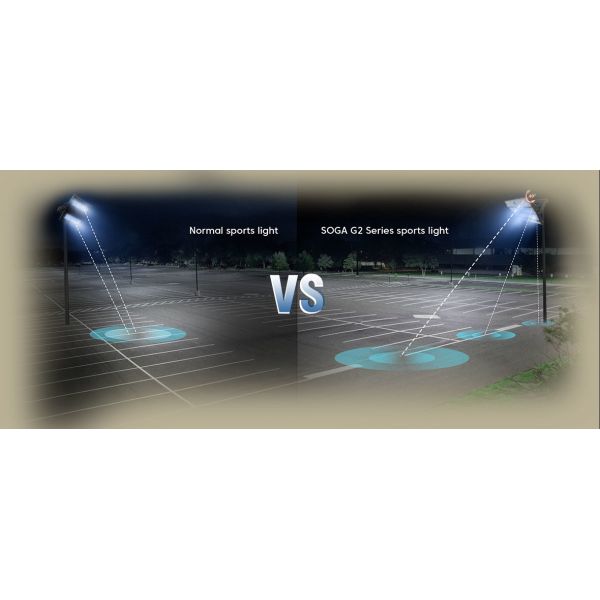

  2. Rotatable Modular Design
    Each single light module can rotate ±40°, mounting bracket supports 120° adjustment. Realize precise targeted lighting, one fixture covers wide lighting area, fast & simple installation.
  3. Excellent Heat Dissipation
    Folded fin-style aluminum heatsink, smooth air circulation to take away heat rapidly, effectively reduce LED light decay, guarantee long service life over 60,000 hours.
  4. Complete Smart Wireless Control System (Zigbee Optional
    Our full Zigbee smart lighting solution supports plug&play connection, cloud remote control via mobile phone, laptop & router:
    • Smarter & faster dimming & switch control
    • Easy daily operation without complicated wiring
    • Simplified wiring to save installation labor cost
    • Stable long-term running performance
    • Low-cost daily maintenance

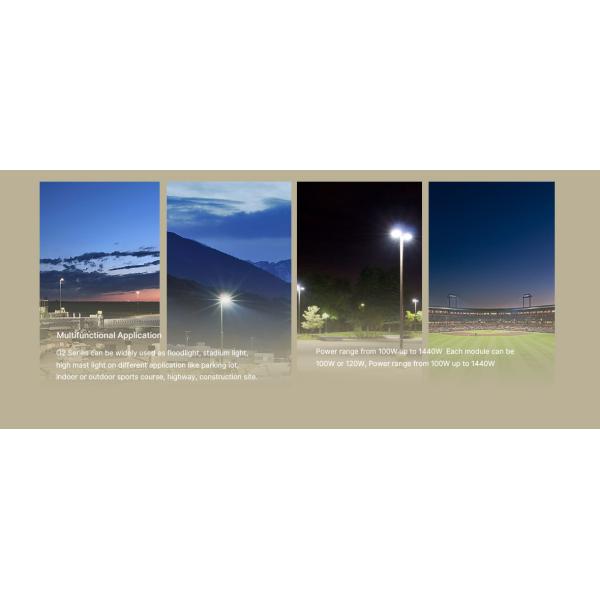

    1. Wide Application Compatibility
      SOGA G2 Series Rotatable Modular LED Stadium Flood LightSOGA G2 Series Rotatable Modular LED Stadium Flood Light
      Can work as flood light, stadium light, high mast light for multiple scenarios.

    4. Optional Accessories

    • Anti-light spill cover
    • Suction-mounted laser pen
    • 20KV SPD surge protection
    • Zigbee gateway
    • Zigbee controller
    • Zigbee wall switch
    • Stainless steel mounting bracket

    5. Application Scenarios

    • Sports stadiums & outdoor sports courts
    • Highway, parking lot, construction site
    • Billboards & advertising boards
    • Tunnels, seaport & wharf high mast lighting
    Model Qty Per Carton Carton Size Net Weight Gross Weight
    SG-G2-120W 1pc 37×27×19cm 3KG 3.5KG
    SG-G2-240W 1pc 42×38×19cm 5KG 5.5KG
    SG-G2-360W 1pc 42×52×19cm 7KG 8KG
    SG-G2-480W 1pc 42×65×19cm 9KG 10KG
    SG-G2-720W 1pc 42×78×19cm 11KG 12KG
    SG-G2-960W 1pc 71×53×19cm 12.5KG 14KG
