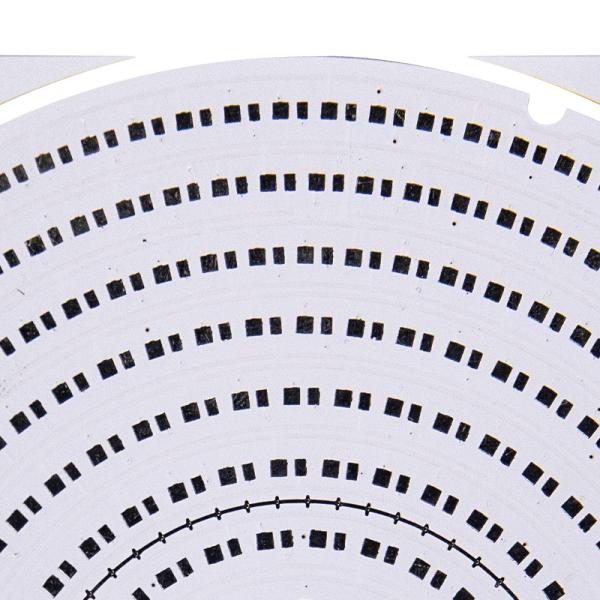

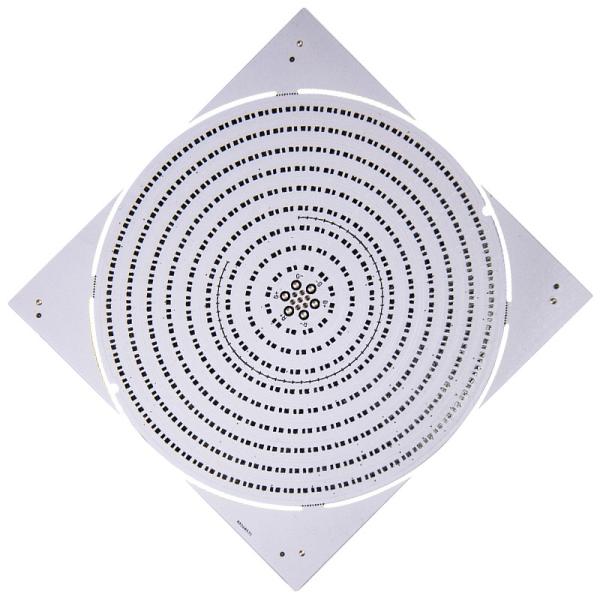

OEM OSP HASL One Sided PCB single layer Smart Electronics LED Bulb
OEM OSP HASL One Sided PCB single layer Smart Electronics LED Bulb
OEM OSP HASL One Sided PCB single layer Smart Electronics LED Bulb
OEM OSP HASL One Sided PCB single layer Smart Electronics LED Bulb
Specifications
Brand Name :
Yizhuo
Model Number :
LED Light PCB
Certification :
CE,ROHS,UL
Place of Origin :
China
MOQ :
2PCS
Payment Terms :
T/T, Western Union
Delivery Time :
10-12 work days
Packaging Details :
Inner vacuum packing,Outer standard carton box packing.
Product name :
Printed Circuit Board
Layer :
Single Layer
Silk Screen :
white,black,yellow
Electrical Testing :
Fixture / Flying Probe
Board Thickness :
0.2mm- 4.0mm
Surface Finishes :
OSP, HASL, HASL Lf, Immersion Gold, Etc.
Description

OEM OSP HASL One Sided PCB Single Layer Smart Electronics LED Bulb

OEM LED Light PCB Board Led Bulb Smart Electronics Aluminum Pcb

As PCB technology has continued to evolve, it has paved the way for the creation of a host of exciting product innovations. A prime example is the development of the PCB for LED lighting. The LED is soldered to the circuit board and features a chip that produces the light when electrically connected. A thermal heat sink and a ceramic base are used to bond the chip.

An LED PCB board tends to generate a high volume of heat, making it difficult to cool via traditional means. Consequently, metal core PCBs are frequently chosen for LED application due to their enhanced ability to dissipate heat. Aluminum in particular is often used to manufacture circuit boards for LED lights. The aluminum PCB typically includes a thin layer of thermally conductive dielectric material that can transfer and dissipate the heat with much greater efficiency than a traditional rigid PCB.

1
Description
PCB Specification
2
Material
FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum
3
Layer
1-20
4
Board Thickness
0.2mm- 4.0mm
5
Board Thickness Tolerance
+/-10%
6
Copper thickness
17.5um-175um (0.5oz-5oz)
7
Min Trace Width
0.15mm
8
Min Space Width
0.15mm
9
Min Drilling Dia
0.2mm
10
PTH copper thickness
0.4-2mil(10-50um)
11
Tolerance of Etching
±1mil(±25um)
12
V-cut angle
25°,30°,45°,60°
13
Pearl Strength of line
≥ 6lb/in(≥ 107g/mm)
14
Impedance control and tolerance
50Ω±10%
15
Twist&Wrap
≤ 0.5%
16
Soldermask
Green, Red, Blue, White, Black, Yellow
17
Surface Finish/Plating
HASL/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG

OEM OSP HASL One Sided PCB single layer Smart Electronics LED Bulb

PCB LED Applications:

An LED PCB board tends to generate a high volume of heat, making it difficult to cool via traditional means. Consequently, metal core PCBs are frequently chosen for LED application due to their enhanced ability to dissipate heat. Aluminum in particular is often used to manufacture circuit boards for LED lights. The aluminum PCB typically includes a thin layer of thermally conductive dielectric material that can transfer and dissipate the heat with much greater efficiency than a traditional rigid PCB.

OEM OSP HASL One Sided PCB single layer Smart Electronics LED Bulb


FAQ:

Q1. How about your supply capacity?

A: Our supply capacity is around 2000sqm each day. where our 25 000 sqm factory space hosts R&D, marketing, logistics and procurement operations.

Q2: Are all your products certified with UL, ROHS etc?

A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.

Q3: How about the Shipping cost?

A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
