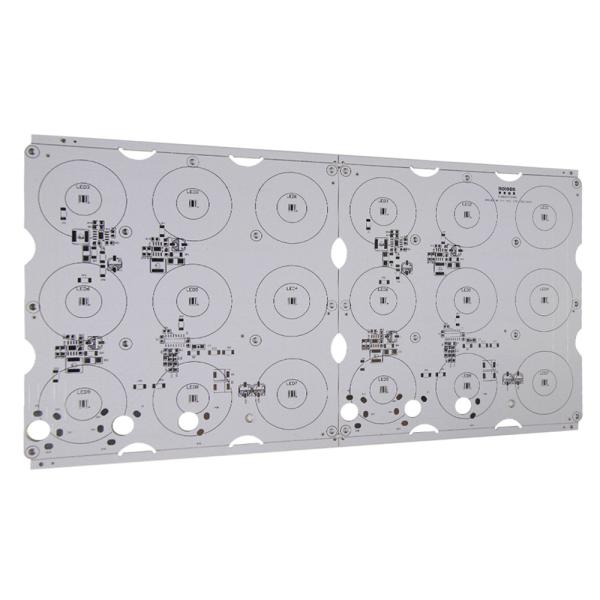

94v0 Single Sided PCBs

Electronics circuit board 94v-0 pcb aluminum smd led pcb board

Aluminum PCB is one type of metal core printed circuit board (MCPCB), widely be used in LED lighting industry.

If you are looking for Aluminum PCB Manufacturer, Yizhuo has so many years of experience in manufacturing Aluminium PCB with high thermal conductivity , we offers a first class service and extensive high-tech options.

MCPCB, Metal Core PCB, thermal PCB – whichever name you prefer, they are all boards which use a base metal material as the heat spreader portion of the circuit board.These types of are typically fabricated with a metal base consisting of aluminum (most common) but can also be produced with copper.

1
Description
PCB Specification
2
Material
FR-4/HTG150-180 FR-4/CEM-1/CEM-3/Aluminum
3
Layer
1-20
4
Board Thickness
0.2mm- 4.0mm
5
Board Thickness Tolerance
+/-10%
6
Copper thickness
17.5um-175um (0.5oz-5oz)
7
Min Trace Width
0.15mm
8
Min Space Width
0.15mm
9
Min Drilling Dia
0.2mm
10
PTH copper thickness
0.4-2mil(10-50um)
11
Tolerance of Etching
±1mil(±25um)
12
V-cut angle
25°,30°,45°,60°
13
Pearl Strength of line
≥ 6lb/in(≥ 107g/mm)
14
Impedance control and tolerance
50Ω±10%
15
Twist&Wrap
≤ 0.5%
16
Soldermask
Green, Red, Blue, White, Black, Yellow
17
Surface Finish/Plating
HASL/Lead Free HASL/OSP/Gold Plating/Immersion Gold/ENIG

94v0 Single Sided PCBs

Applications of Aluminum PCB:

General lighting applications (Streetlight , Flashlight, Spotlight, etc.)

Back light unit applications

Back light unit applications

Power converters: telecom, high voltage regulator, power supplies

Hybrid/electric motor control applications

Photovoltaic

94v0 Single Sided PCBs


FAQ:

Q1. What are the main products of your PCB/PCBA services?

A: Industrial control, Automotive, Medical Equipment, Communication Electronics, Security Devices.

Q2: Are all your products certified with UL, ROHS etc?

A: Yes, we are certified to ISO9001:2015, ISO14001:2015, IFA, UL , SGS, ROHS.

Q3: How about the Shipping cost?

A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
