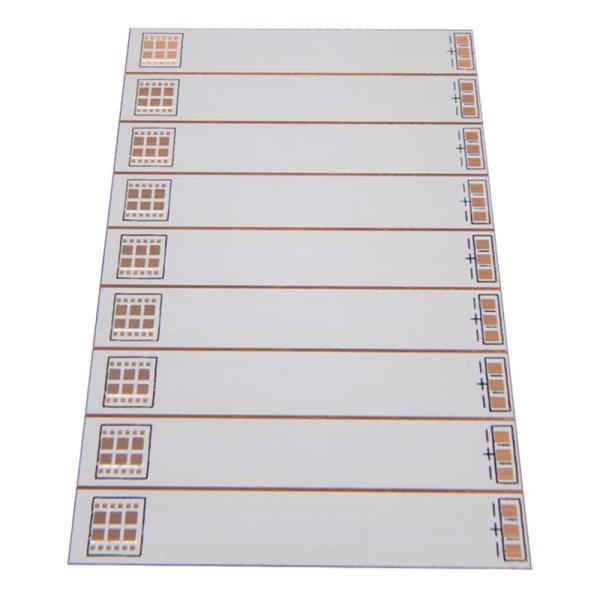

Custom SMD LED PCB Board 5730 5630 2835 3014 4014 3030 5050 RGB LED for Downlight Floodlight Ceiling Lamp
Custom SMD LED PCB Board 5730 5630 2835 3014 4014 3030 5050 RGB LED for Downlight Floodlight Ceiling Lamp
Specifications
Brand Name :
Yizhuo
Model Number :
Aluminum Pcb Board 01
Certification :
CE,ROHS,UL
Place of Origin :
China
MOQ :
2PCS
Payment Terms :
T/T, Western Union
Delivery Time :
10-12 work days
Packaging Details :
Vacuum Package+ Good quality carton box
Base Material :
Aluminum Base
Copper Thickness :
1/2OZ
Peelable :
0.3-0.5mm
Profiling Punching :
Routing, V-CUT, Beveling
Service :
One-stop service
Description

Custom SMD LED PCB Board 5730 5630 2835 3014 4014 3030 5050 RGB LED for Downlight Floodlight Ceiling Lamp

Description:

We offer a variety of LED PCB products. High-power LEDs for aluminum-based PCBs, copper-based PCBs, ceramic-based PCBs, low-power LEDs for FR4 PCBs, high-temperature PCBs. Due to the good heat dissipation performance of aluminum-based PCBs, the most commonly used high-power LED products are aluminum-based PCBs.
Custom SMD LED PCB Board 5730 5630 2835 3014 4014 3030 5050 RGB LED for Downlight Floodlight Ceiling Lamp
We can provide different solder mask options for your LED PCB. We have developed a lot of Led PCB solder mask lumens to provide better brightness for your Led lamps.

Led pcb board assembly is a metal-based copper clad laminate with good heat dissipation. Generally, a single panel consists of a three-layer structure, which is a circuit layer (copper foil), an insulating layer and a metal base layer. Also used for high-end use is designed as a double panel, the structure is circuit layer, insulation layer, aluminum base, insulation layer, circuit layer. A very small number of applications are multi-layer boards, which can be made of ordinary multi-layer boards combined with an insulating layer and an aluminum base.

Custom SMD LED PCB Board 5730 5630 2835 3014 4014 3030 5050 RGB LED for Downlight Floodlight Ceiling Lamp

LAYERPROTOTYPEMASS PRODUCTION (above 20 m2)
Quick TurnStandard Time
MC PCB48 hours4-5 days10-12 days
PFC 1 L48 hours5-6 days12-13 days
1L24 hours3-4 days8-10 days
2L24 hours3-4 days8-10 days
4L48 hours5-6 days8-10 days
6L72 hours6-7 days10-12 days
8L72 hours7-8 days12-14 days
10L96 hours9-10days16-18 days


One-stop Service Include


PCB PrototypeQuick Turn PCBSingle-Sided PCB
Double-Sided PCBMultilayer PCBRigid PCB
Flexible PCBRigid-Flex PCBLED PCB
Aluminum PCBMetal Core PCBThick Copper PCB
HDI PCBBGA PCBHigh TG PCB
PCB StencilImpedance Control PCBPCB Assembly
High-Frequency PCBBluetooth Circuit BoardAutomotive PCB
USB Circuit BoardHalogen-Free PCBAntenna PCB
